Name: Intel Xeon E5-2620v4 2.1GHz
Brand: Dell
SKU: 5838243
Price: 679 EUR
Availability: InStock

productDetailPageQuery

Dell

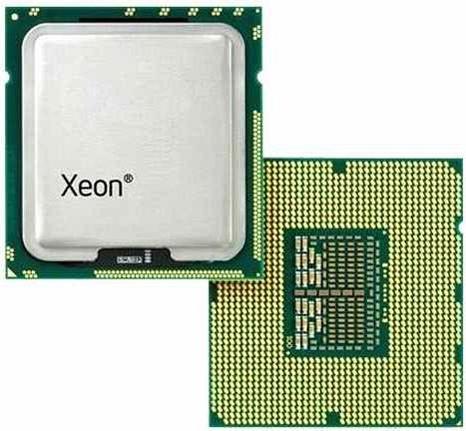

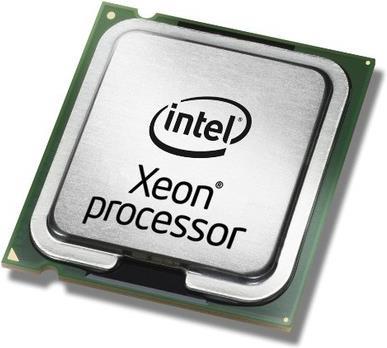

Dell Intel Xeon E5-2620v4 Kit, 2.1GHz, 20M Cache, 8.0GT/s QPI Turbo, 8C, 85W,, without heatsink, to PowerEdge R530, R630, R730, T630, 1 year warranty.

Key specifications

Processor family

Number of processor cores

A multi-core processor (or chip-level multiprocessor, CMP) combines two or more independent cores (normally a CPU) into a single package composed of a single integrated circuit (IC), called a die, or more dies packaged together. A dual-core processor contains two cores, and a quad-core processor contains four cores.

Max. TDP

The thermal design power (TDP), sometimes called thermal design point, refers to the maximum amount of power the cooling system in a computer is required to dissipate. For example, a laptop's CPU cooling system may be designed for a 20 watt TDP, which means that it can dissipate up to 20 watts of heat without exceeding the maximum junction temperature for the computer chip. It can do this using an active cooling method such as a fan or any of the three passive cooling methods, convection, thermal radiation or conduction. Typically, a combination of methods is used. The TDP is typically not the most power the chip could ever draw, such as by a power virus, but rather the maximum power that it would draw when running "real applications". This ensures the computer will be able to handle essentially all applications without exceeding its thermal envelope, or requiring a cooling system for the maximum theoretical power (which would cost more but in favor of extra headroom for processing power).

Processor family	Xeon E5 v4
Number of processor cores	8 -Core
Max. TDP	85 W
Number of threads	16
PCI express version (max.)	3
Item number	5838243

Manufacturer	Dell Inc.
Category	Processors
Manufacturer no.	338-BJEU
Release date	2.7.2016

Processor family	Xeon E5 v4
Processor socket	LGA 2011-v3
Processor clock frequency	2.10 GHz
Max. turbo clock rate	3 GHz
Number of processor cores	8 -Core
Number of threads	16
Number of efficiency cores	8 -Core
Lithography	14 nm
Max. TDP	85 W
L3 Cache	20 MB
PCI express version (max.)	3
Processor design	64-bit
Transfer rate	8 GT/s

Memory channels	QUad-Channel
Memory type	DDR4-RAM
Max. memory (RAM)	1536 GB
