Excellent processing quality. To enhance the rigidity of all linear modules and improve stability during laser and CNC machining, the 200W CNC module is equipped with reinforcement plates. Combined with a spindle that operates at 18,000 RPM, the module can effortlessly carve or cut various materials.

More flexibility in material selection. The powerful CNC module can easily and precisely process hard materials such as hardwoods (e.g., beech and walnut), jade, and other robust materials (e.g., brass, aluminum).

4-axis CNC machining. When paired with the Snapmaker Rotary Module (Harmonic Drive version), the Snapmaker is expanded to a fourth axis. This transforms it into an extremely powerful desktop CNC machining platform.

ER11 collet. The standard ER11 collet not only ensures better runout but also allows for a more stable CNC milling speed and greater step size. The collet also supports over 100 CNC bits with shank diameters ranging from 1-7 mm.

Attention! The included collet is only suitable for 3.175 mm CNC bits!

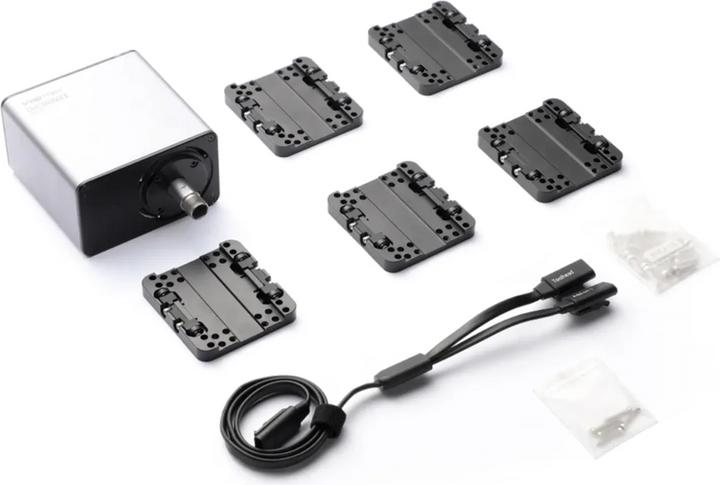

Included:
1 x 200W CNC module
5 x reinforcement plates
1 x boosted toolhead cable
5 x M4x22 screws
22 x M4x14 screws.
