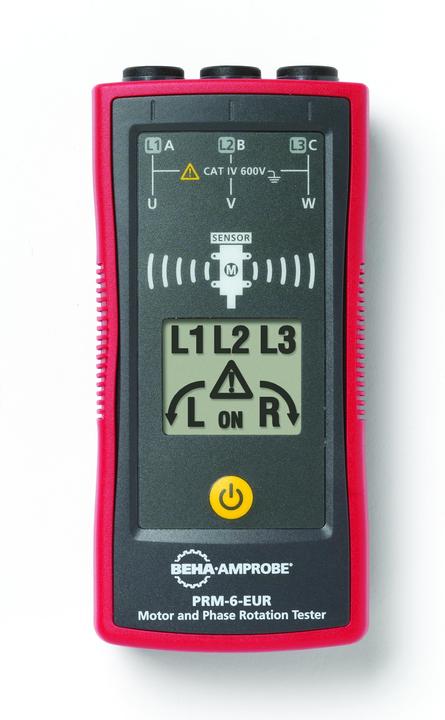

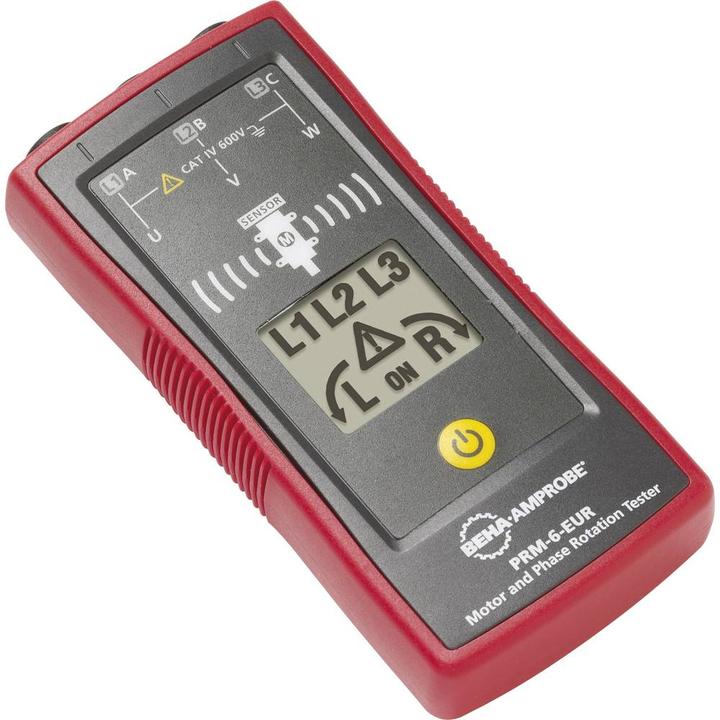

The motor and phase rotation testing device PRM-6 can check the rotation direction of three-phase motors and verify the wiring of three-phase plugs as well as the phase sequence using test cables. Another advanced feature is the non-contact motor rotation detection, which identifies the motor's rotation direction without the use of test cables.

Technical specifications:

• Display of the 3-phase wire sequence
• Error indication (missing phase, connected to neutral or ground)
• Non-contact and wireless detection of the rotation direction of running motors
• Displays the rotation of unconnected motors when the shaft is turned manually or otherwise
• Three-phase voltage up to 700 V
• Clear LCD display with backlight
• Safety: CAT IV 600 V

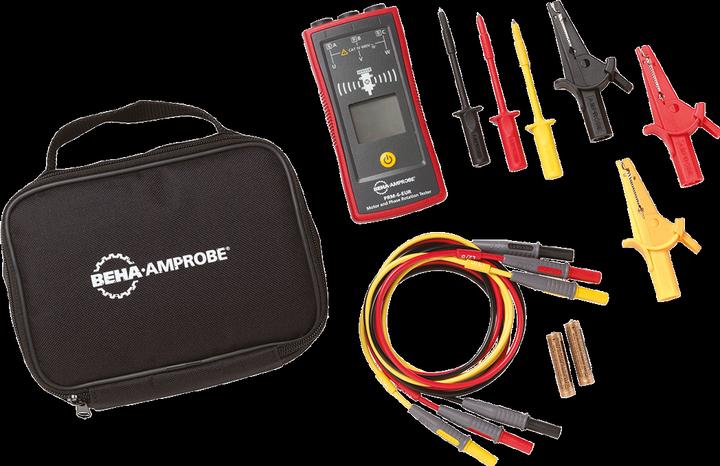

Included:

• Carrying case

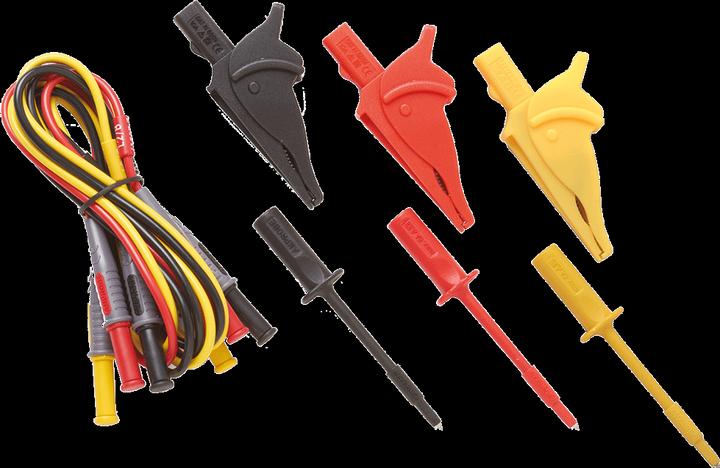

• 3 test probes
• 3 alligator clips
• 2 1.5 V batteries (AAA / LR03).
