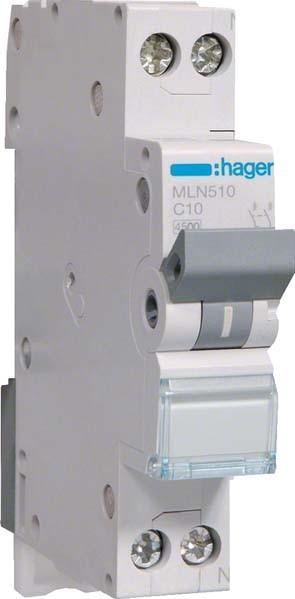

The Hager circuit breaker MLN510 is a reliable and safe device designed for the protection of electrical installations. With a type C tripping characteristic and a rated current of 10 A, this circuit breaker provides effective protection against overload and short circuits. It is suitable for flush mounting and features a compact design with a width of only 1 module. The MLN510 is intended for use in alternating current systems with a rated voltage of 240 V and complies with the requirements of EN 60898. The high rated insulation voltage of 500 V and the rated impulse voltage withstand of 4 kV ensure a high level of operational safety. The switch is suitable for an ambient temperature range of -25 to 70 °C and offers an IP20 protection rating, making it ideal for use in dry indoor environments.

• Energy limiting class 3 for additional protection
• Suitable for multi-stranded and single-stranded conductor cross-sections
• High rated insulation voltage of 500 V
• Operating temperature range of -25 to 70 °C
• Compact design with only 1 module width.
