The newly manufactured Li-Ion battery comes with U-shaped solder tabs. It is used in industries, in toothbrushes, etc.

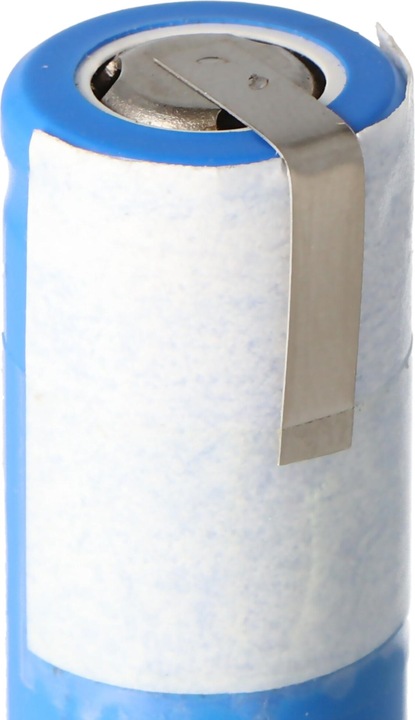

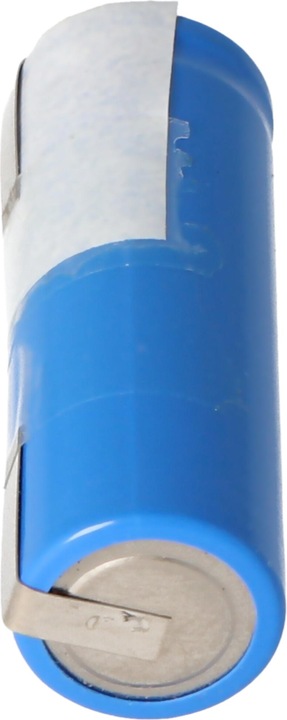

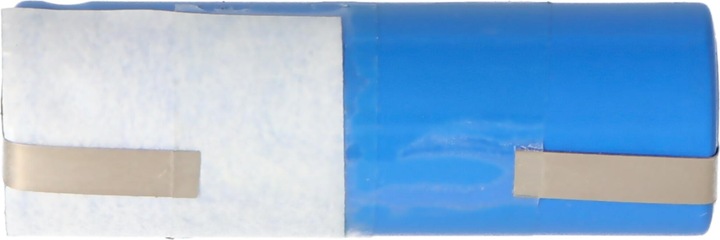

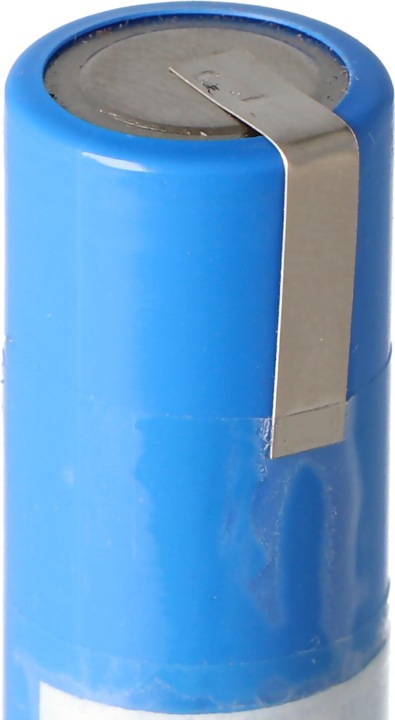

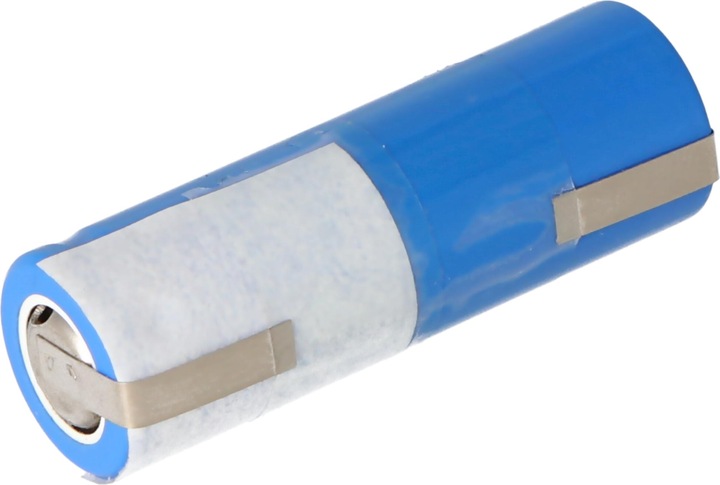

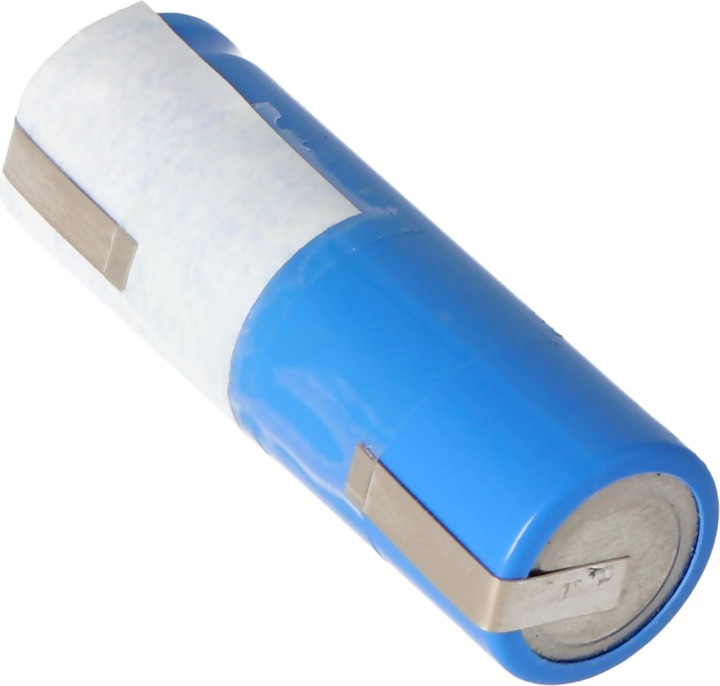

• IMR 14500 battery with U-shaped solder tab
• Dimensions must be observed: 49.05 x 13.95 mm

Technical specifications for Sony US14500VR2B UR 14500L: LiMn IMR system, Sony US14500VR2B lithium-manganese battery, flat top cell with U-shaped solder tabs.

Capacity: min. 680 mAh, max. 715 mAh.
Nominal voltage: 3.6 to 3.7 volts, charging cutoff voltage 4.2 volts.
Discharge cutoff voltage: min. 2.5 volts.
Max. discharge current: 2 A.
Standard charge current: 0.25 A to 0.5 A.
Fast charge current: max. 0.7 A.
Dimensions: diameter 13.95 mm ± 0.1 mm, height 49.05 mm ± 0.1 mm.
Weight: 22 grams.

Safety instructions: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by qualified personnel. Improper handling or short circuits can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and the number of charge cycles (potentially up to doubling). Only lithium-ion chargers should be used for charging.
