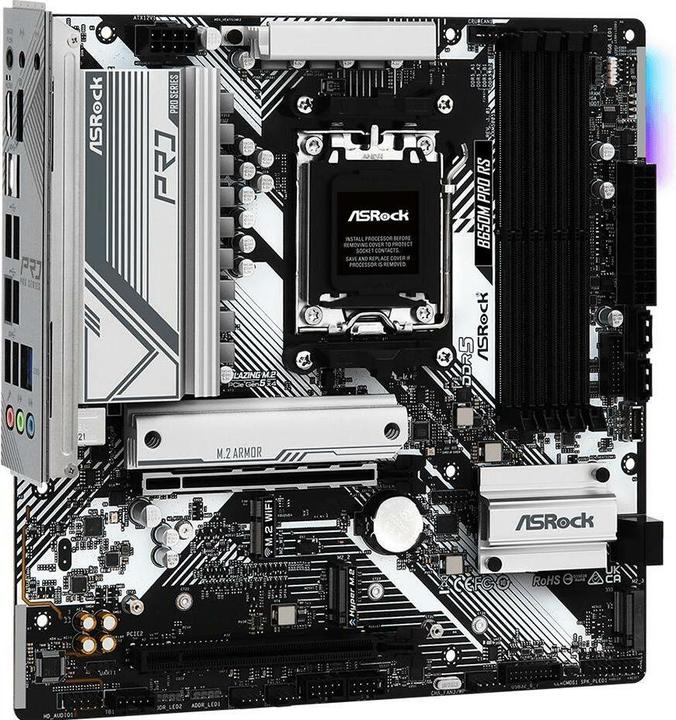

AsRock B650M PRO RS AM5 retail

AM5, AMD B650, mATX
Price in EUR including VAT, free shipping
3Ratings
Delivered tomorrow
More than 10 items in stock

Product details

The Asrock B650M Pro is equipped with the B650 chipset for AMD's Ryzen processors of the 7000 series and offers numerous features for enthusiasts and gamers. The Ryzen 7000 series processors require a socket that supports PCIe 5.0 and an extended power supply, which is why the AM5 (LGA 1718) socket is used on the 600 series motherboards. Despite the increased number of pins, the actual size of the socket remains identical to older sockets, allowing most CPU coolers for socket AM4 to be mounted on the motherboard.

Key specifications

Processor family
Ryzen 3 7th Gen,
Ryzen 5 7th Gen,
Ryzen 7 7th Gen,
Ryzen 9 7th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
24-pin ATX power connector (1x),
8-pin ATX 12V (1x),
M.2 PCIe (1x),
S-ATA III (4x)
Mainboard features
Front panel audio connector,
Thunderbolt header
Item number
35511148

General information

Manufacturer
Category
Manufacturer no.
90-MXBLP0-A0UAYZ
Release date
17.5.2023
Sales rank in Category Motherboards

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM5
Chipset
AMD B650
Mainboard features
Front panel audio connector,
Thunderbolt header
Operating system compatibility
Windows,
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 3 7th Gen,
Ryzen 5 7th Gen,
Ryzen 7 7th Gen,
Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5 SDRAM
Max. RAM OC
6000 MHz
Supported memory speed
6000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x),
HDMI (1x)
Video connection version
HDMI 1.4
Multi-GPU technology
AMD CrossFire

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Dragon RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Headphone output (1x),
Microphone

Data storage

RAID configuration
0,
1,
10

Internal interfaces

Internal connection options
24-pin ATX power connector (1x),
8-pin ATX 12V (1x),
M.2 PCIe (1x),
S-ATA III (4x)
Expansion slot
PCI Express x16 (Gen 3) (1x),
PCI Express x16 (Gen 4) (1x)
Number of fan connector
5

Further connections

USB ports
USB-A,
USB-C
Exact USB ports
USB-C 3.2 Gen 1 (1x),
USB-C 3.2 Gen 2 (1x)
Peripheral connections
USB 2.0 Type-A (8x),
USB 3.2 Gen 2 (1x),
USB Type-C (2x)

Power supply

Power connectors
8-pin PCI-E

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
244 mm
Width
244 mm
Height
65 mm
Weight
1242 g

Package dimensions

Length
28 cm
Width
26 cm
Height
6 cm
Weight
1.24 kg
