AsRock B850 LiveMixer WiFi
AM5, AMD B850, ATXPrice in EUR including VAT
Delivered between Thu, 24.4. and Fri, 25.4.
2 items ordered
2 items ordered
free shipping
Product details

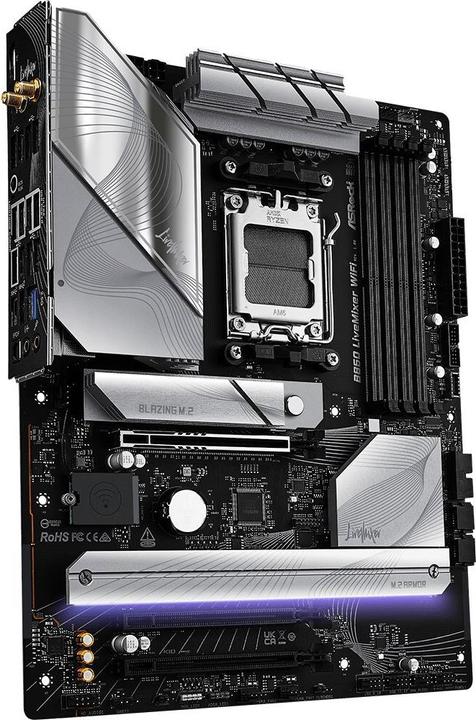

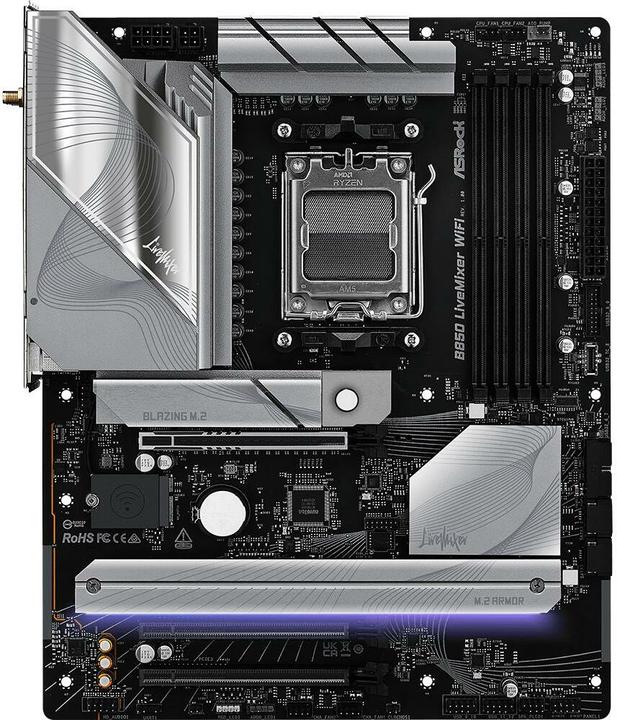

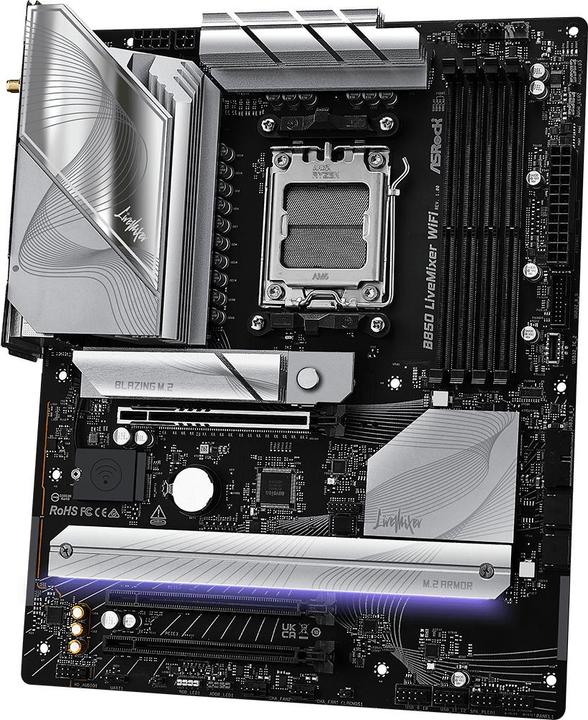

The ASROCK B850 LiveMixer WiFi is an ATX mainboard with the mid-range AMD B850 chipset and AMD AM5 socket. It supports both the Ryzen 9000, 8000 and 7000 CPUs.
Graphics cards and NVMe SSDs are connected via PCIe 5.0 and data transfer rates of up to 20 Gbit/s are possible via USB 3.2 Gen 2x2.
To get the best out of your gaming PC, the CPU can be overclocked to higher clock rates via the mainboard. This ensures a stable power supply to the processor so that even high-end CPUs can operate at full power over a longer period of time. You can also fully utilise the DDR5 memory with overclocking. Just in case, the ASROCK B850 LiveMixer WiFi offers you BIOS flashback.
Processor family | AMD 7000 Series |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (2x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Temperature sensor connections, Trusted Platform Module |
Item number | 53181633 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBQU0-A0UAYZ |
Release date | 27.11.2024 |
Sales rank in Category Motherboards | 128 of 878 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B850 |
Mainboard features | Temperature sensor connections, Trusted Platform Module |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | AMD 7000 Series |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Max. RAM OC | 8000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Dragon RTL8125BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10 |
Internal connection options | S-ATA III (2x) |
Expansion slot | PCI Express x16 (Gen 4) (2x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 2 |

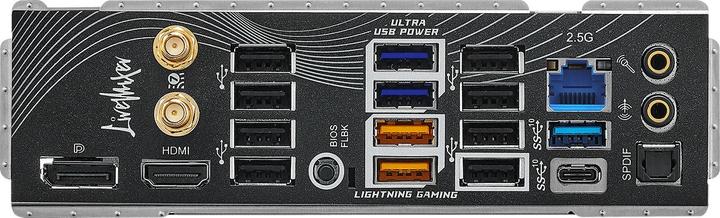

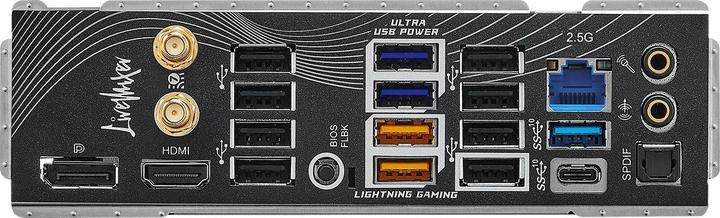

USB ports | USB-A, USB-C |
Exact USB ports | USB-C 3.2 Gen 1 (1x), USB-C 3.2 Gen 2 (1x) |
Country of origin | Vietnam |
CO₂-Emission | |
Climate contribution |

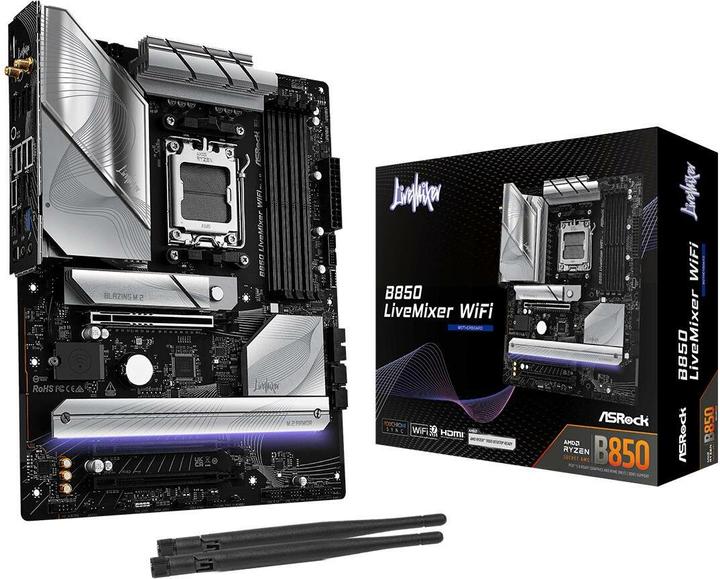

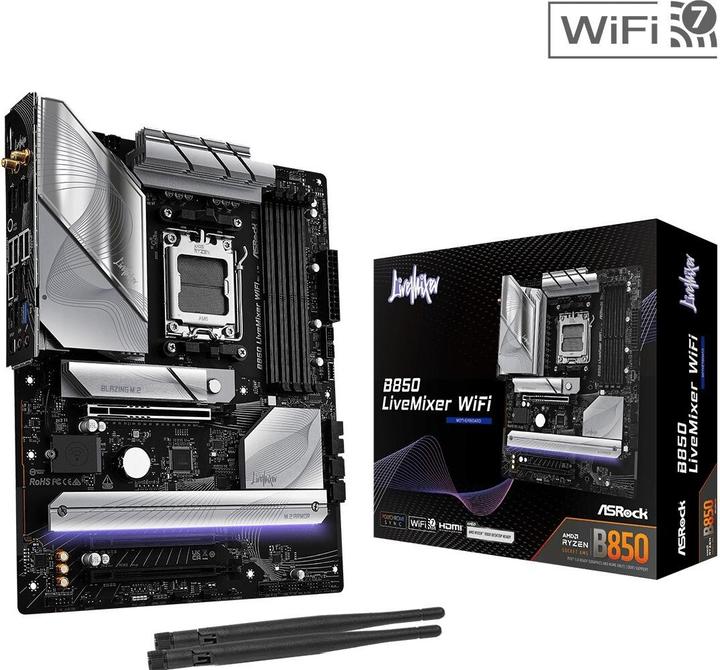

Scope of delivery | 2 wi-fi antennas, 2x SATA cable |
Length | 244 mm |
Width | 305 mm |
Length | 35.40 cm |
Width | 28.80 cm |
Height | 8.30 cm |
Weight | 2.04 kg |
Product Safety |
Specifications may include unverified machine translations.
