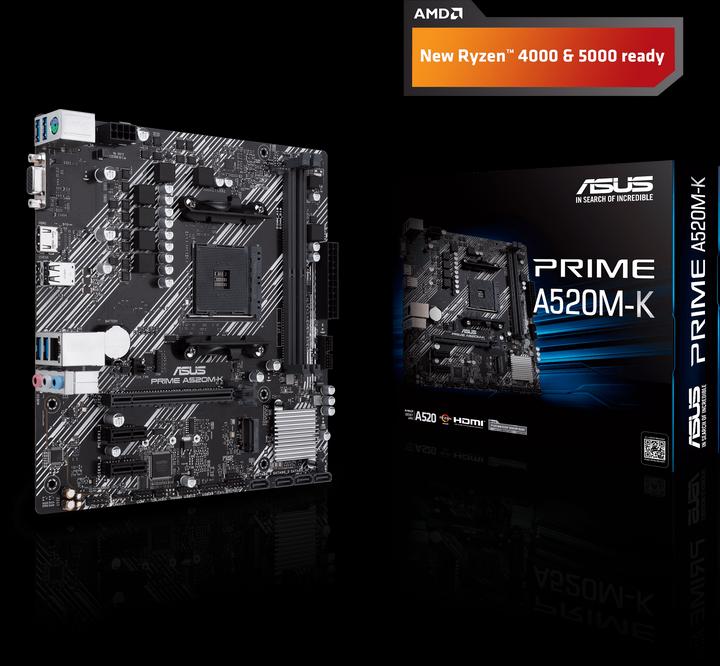

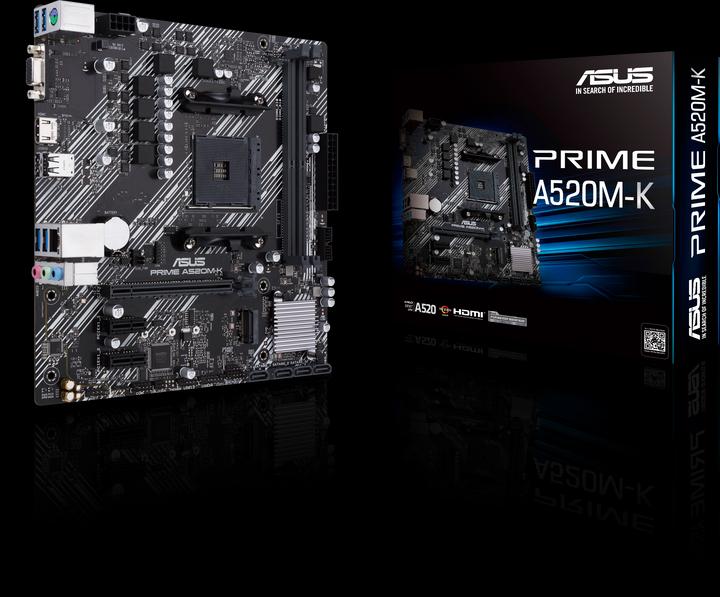

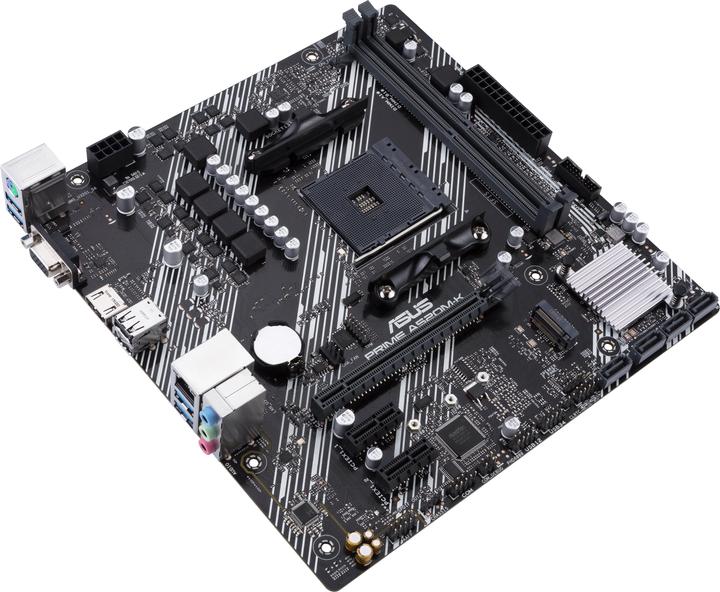

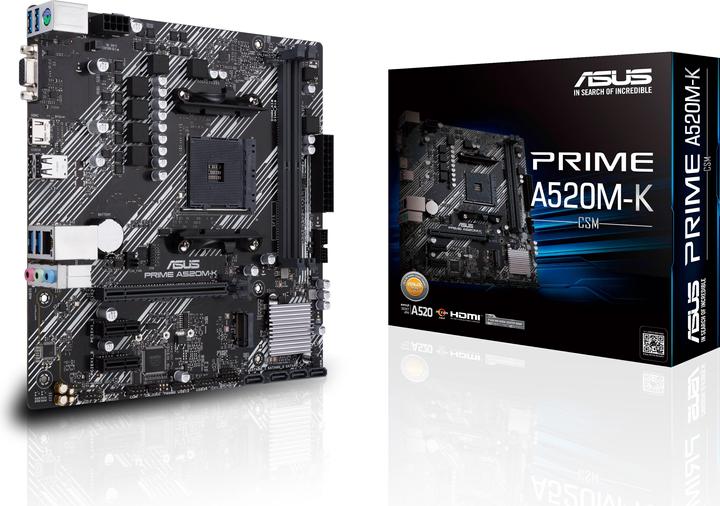

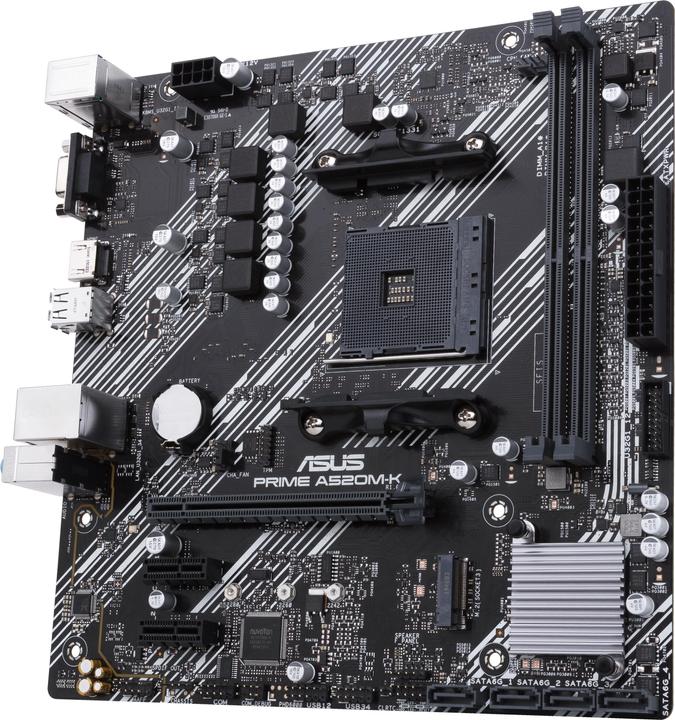

ASUS Prime A520M-K
AM4, AMD A520, mATXPrice in EUR including VAT, free shipping
Delivered between Fri, 25.4. and Tue, 29.4.
More than 10 items in stock at third-party supplier
More than 10 items in stock at third-party supplier
Supplied by
ASUS DE
Product details
The ASUS Prime A520M-K is a Micro-ATX motherboard designed for AMD Ryzen processors of the 3rd generation and Ryzen processors with Radeon Graphics of the 2nd generation. It features the AMD A520 chipset and supports DDR4 memory with speeds of up to 4600 MHz.
The motherboard offers a PCIe 3.0 x16 slot for the graphics card and a PCIe 3.0 x1 slot for other expansion cards. Additionally, there are 4 SATA slots and an M.2 slot for data storage. The ASUS Prime A520M-K also provides several USB ports, including 4 USB 3.2 Gen 1 ports and 2 USB 2.0 ports.
The motherboard is equipped with ASUS' UEFI BIOS, which offers a user-friendly interface and allows for the optimization of various settings and functions of the motherboard. It also includes the ASUS AI Suite 3, which contains a range of utilities for system optimization and management.
Processor family | Ryzen 3 3rd Gen, Ryzen 5 3rd Gen, Ryzen 7 3rd Gen, Ryzen 9 3rd Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | mSATA (4x) |
Mainboard features | Front panel audio connector |
Item number | 13645758 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1500-M0EAY0 |
Release date | 2.12.2021 |
Sales rank in Category Motherboards | 246 of 886 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD A520 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 3 3rd Gen, Ryzen 5 3rd Gen, Ryzen 7 3rd Gen, Ryzen 9 3rd Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Max. RAM OC | 4600 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 4300 MHz, 4400 MHz, 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Intel I211-AT, Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887, Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line Out (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | mSATA (4x) |
Expansion slot | PCI Express x1 (Gen 3) (2x), PCI Express x16 (Gen 3) (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 1 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x) |
Power connectors | 20+8 pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

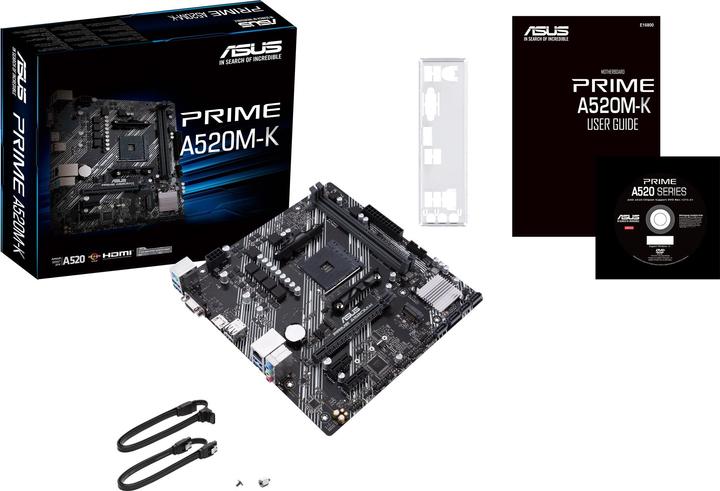

Scope of delivery | Sata Cables |
Length | 221 mm |
Width | 226 mm |
Height | 221 mm |
Weight | 750 g |
Length | 27.30 cm |
Width | 26.90 cm |
Height | 5.60 cm |
Weight | 820 g |
