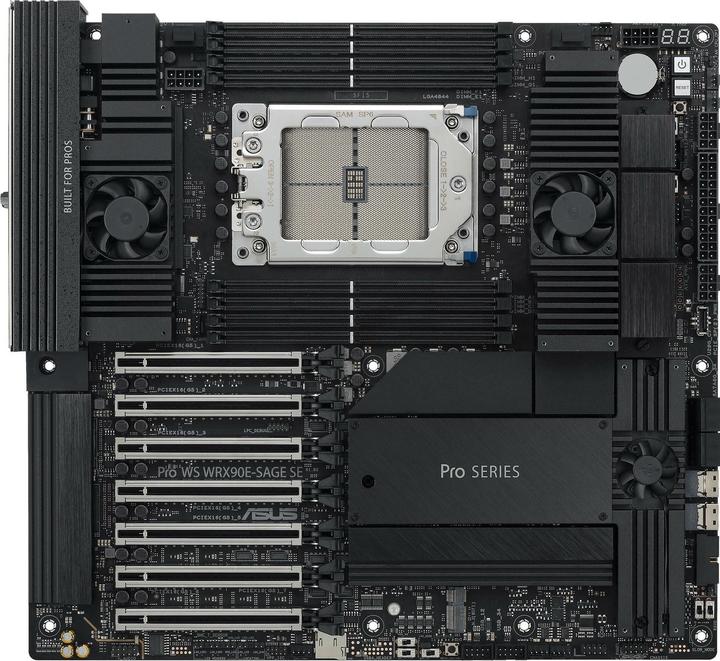

The AMD sTR5 socket supports up to 96-core CPUs and is ready for the AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors.

It offers ultra-fast connectivity with seven PCIe® 5.0 x16 slots, two 10-Gbit LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® ports, and SlimSAS NVMe support.

CPU and memory overclocking supports up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).

The robust power and thermal design includes 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, as well as chipset and M.2 heatsinks with active fans and an M.2 thermal pad.

With the PCIe Q-Release Slim feature, you can easily remove the graphics card by pulling it straight up instead of pressing a PCIe latch.

The IPMI server-level remote management and integrated BMC provide hardware and software-level control with a dedicated LAN port connected to an integrated AST2600 BMC controller, along with ASUS Control Center Express software for real-time monitoring and management.

Trusted stability is ensured through comprehensive compatibility with the latest technologies, an extensive QVL list, and testing for 24/7 operation.
