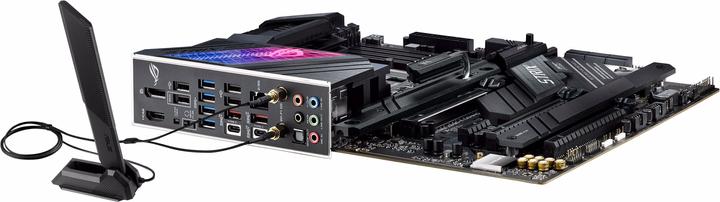

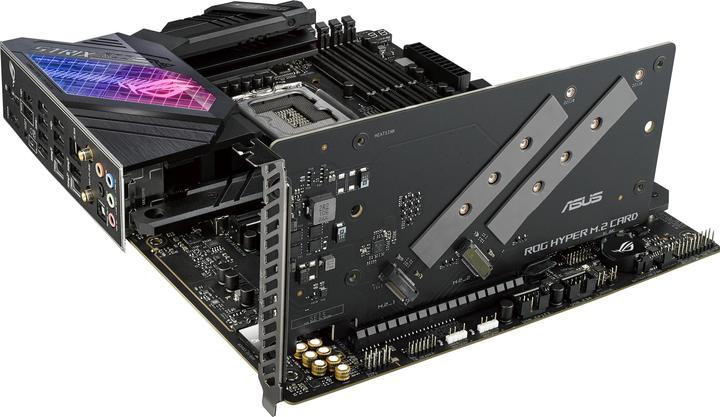

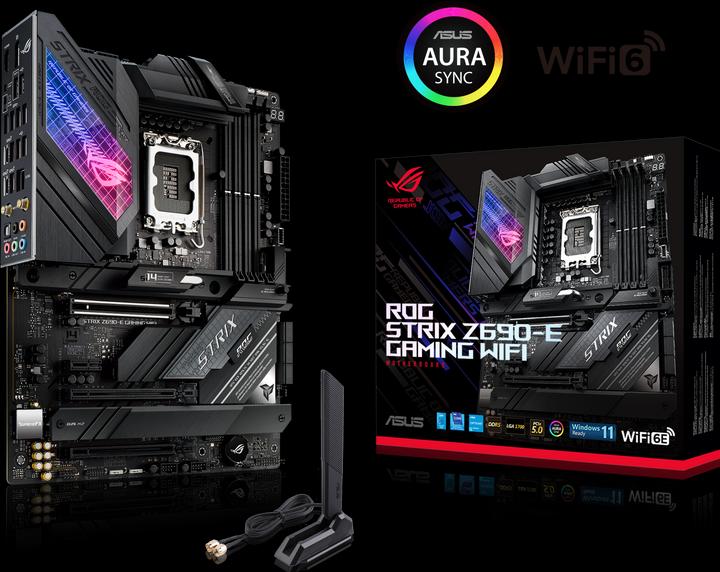

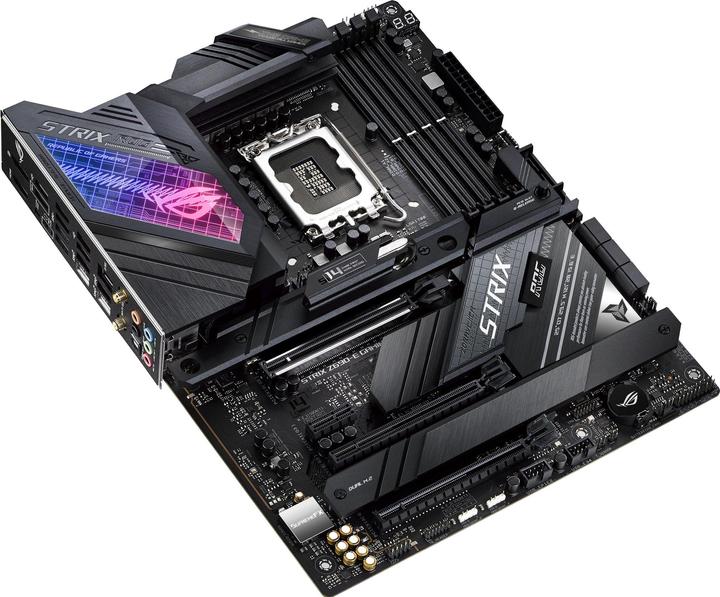

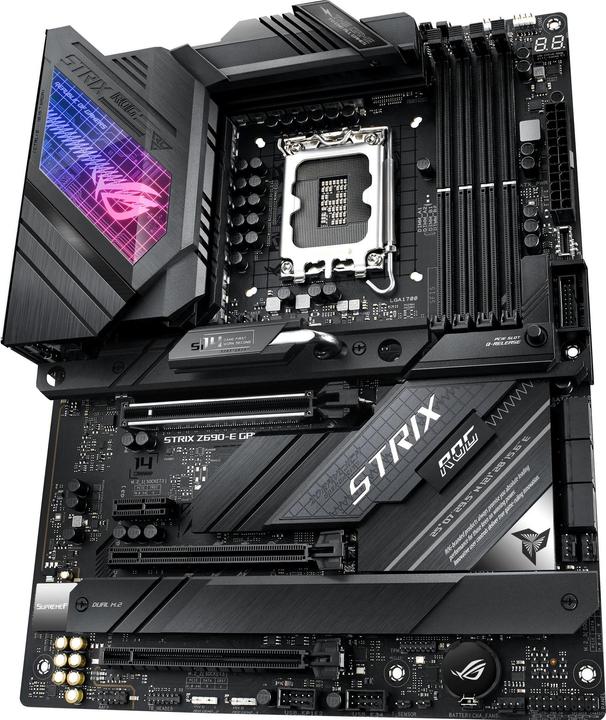

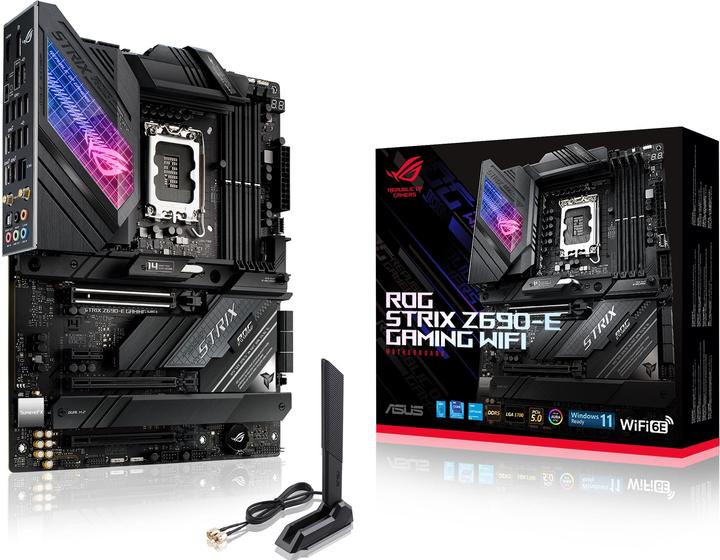

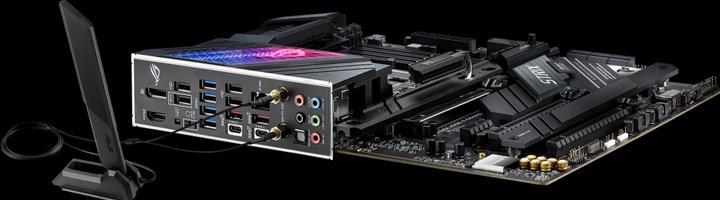

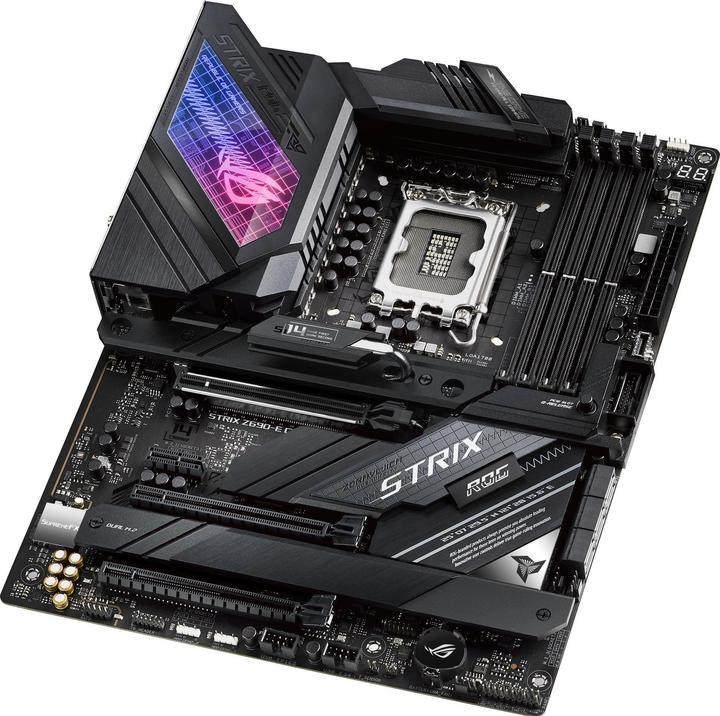

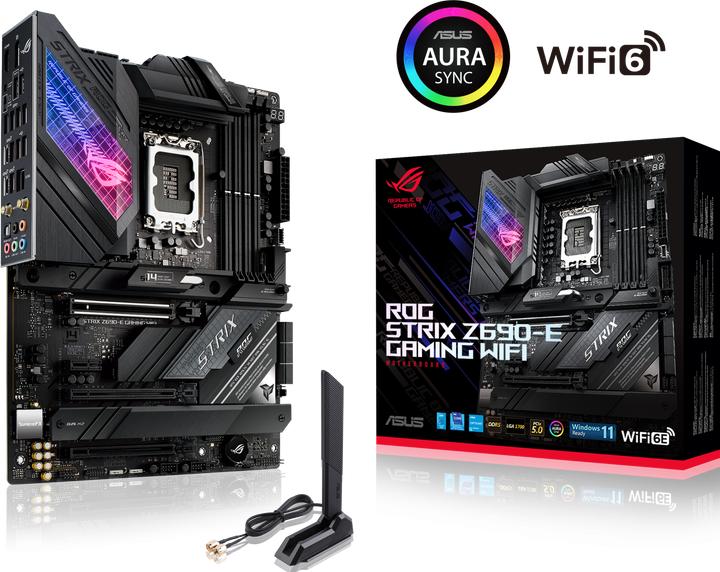

ASUS ROG Strix Z690-E Gaming Wifi
LGA 1700, Intel Z690 (DDR5), ATXPrice in EUR including VAT
Delivered Wed, 23.4.
5 items in stock
5 items in stock
free shipping
Product details
The ROG Strix Z690-E Gaming WiFi puts Intel's 12th generation Core processors at the forefront, featuring enhanced power delivery, cooling, cutting-edge connectivity options, and a range of features that effortlessly drive peak performance. This flagship model is your ticket to the next level of gaming.
Processor family | Core i5 12th Gen, Core i7 12th Gen, Core i9 12th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (2x), S-ATA III (6x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 17252881 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB18J0-M0EAY0 |
Release date | 4.11.2021 |
Sales rank in Category Motherboards | 191 of 878 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z690 (DDR5) |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Core i5 12th Gen, Core i7 12th Gen, Core i9 12th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 6400 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

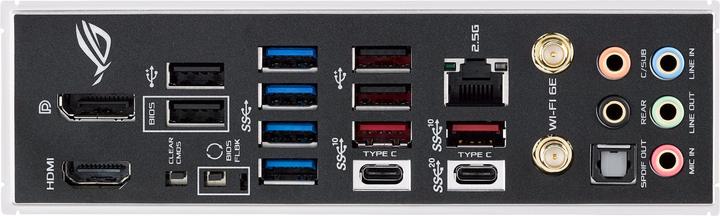

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Ethernet LAN, LAN |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x), Optical TOSLINK (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 PCI/SATA Combo (1x), M.2 PCIe (2x), S-ATA III (6x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x) |
Number of fan connector | 5 |
USB ports | USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 24-pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 110 mm |
Weight | 1543 g |
Length | 37.30 cm |
Width | 31 cm |
Height | 11.20 cm |
Weight | 3.47 kg |
