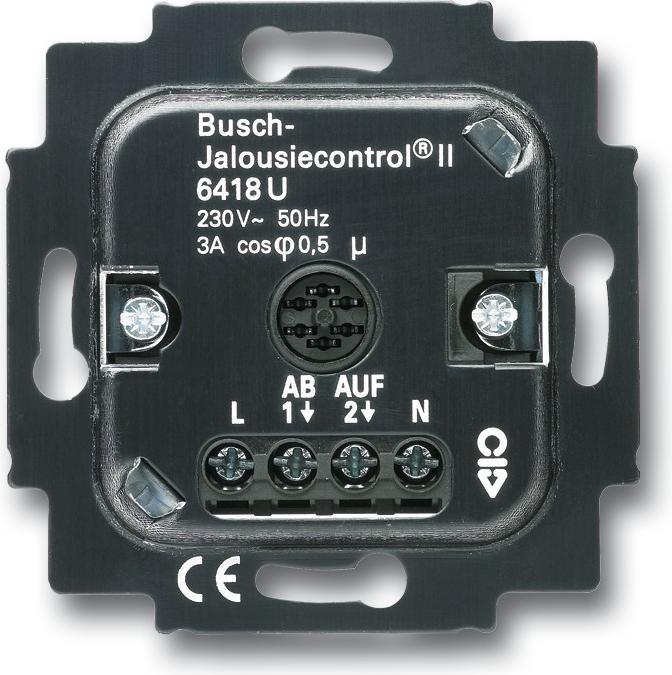

Busch-Jaeger blind base insert 6418 U

Manufacturer: Busch-Jaeger
Designation: Blind base insert 2closer 3A 690VA
Type: 6418 U
Composition: Base element
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Colour: Black
Suitable for protection class (IP): IP20
Max. switching capacity: 690 W
Switching capacity: 690 W
Rated voltage: 230 V
Frequency: 50 Hz
Mounting type: Claw/screw mounting

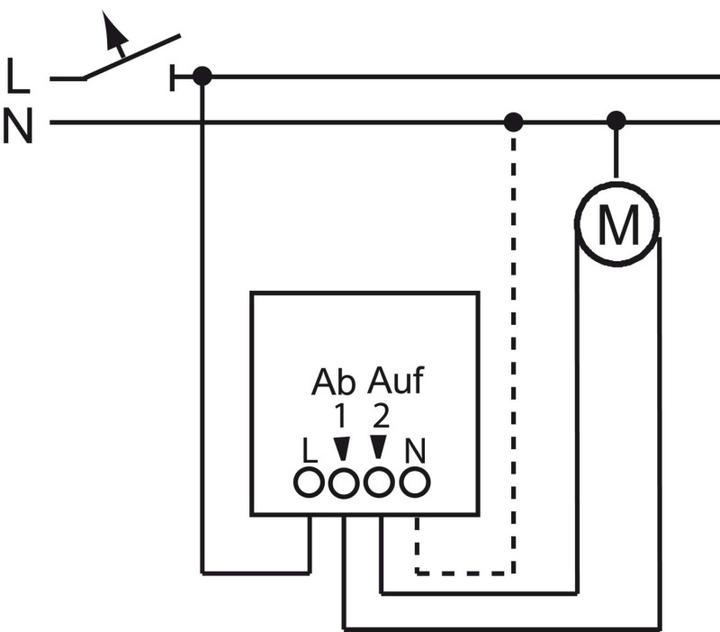

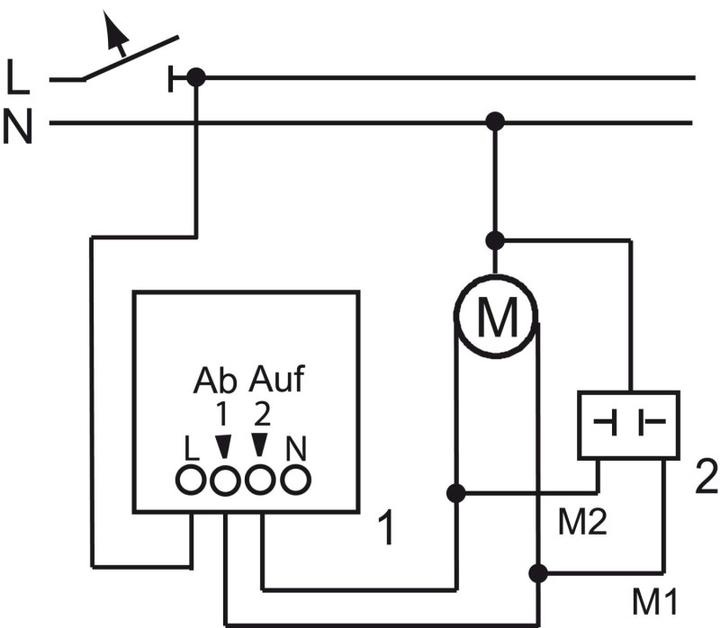

Further details: Suitable for roller shutter and venetian blind drives with mechanical or electronic limit switching. Suitable for operation without neutral conductor. Without extension input. For operating element 6430-xx-xxx. For standard timer control element 6456-101. Running time: 3 min. N-wire connection required for operation with control element with glow lamp. N conductor connection may be required for operation with roller shutter and blind drives with electronic end position switch-off. If no N conductor is available, capacitor set 6498 can be used. EAN: 4011395075753.
