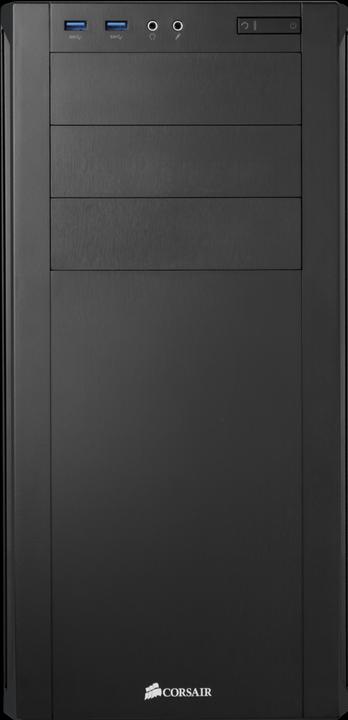

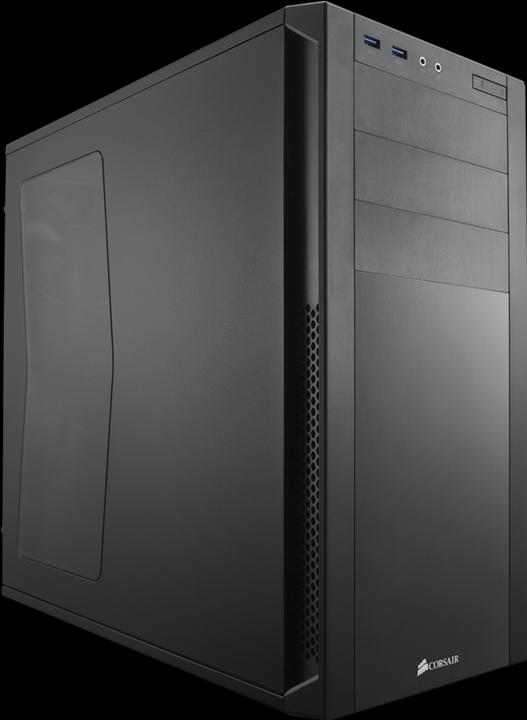

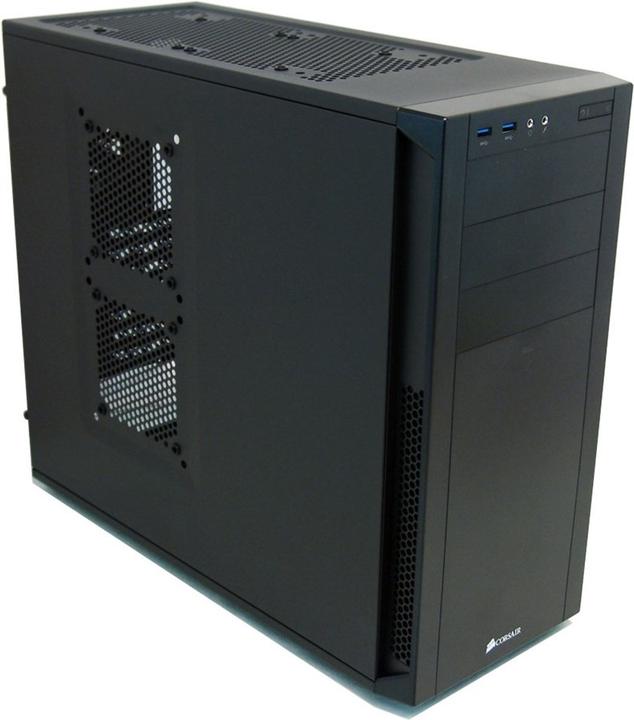

Corsair Carbide 200R

ATX, mATX, Mini-ITX
69Ratings
Currently out of stock

Product details

Below the high-end Obsidian series and the graphite models, Corsair offers affordable cases with impressive mid-range features with its range of carbide enclosures. The 200R replaces the 300 model as the smallest model in the Carbide series.

Radiator installation points (optional)
Top side: 240mm
Back side: 120mm
Bottom side: 120/140mm

Compatible Corsair liquid coolers:
H55, H60, H75, H80i

Key specifications

PC case design
Midi Tower
Number of 3.5" drive slots (internal)
4 x
"Number of 5.25"" drive slots"
3 x
Max. length graphics card
420 mm

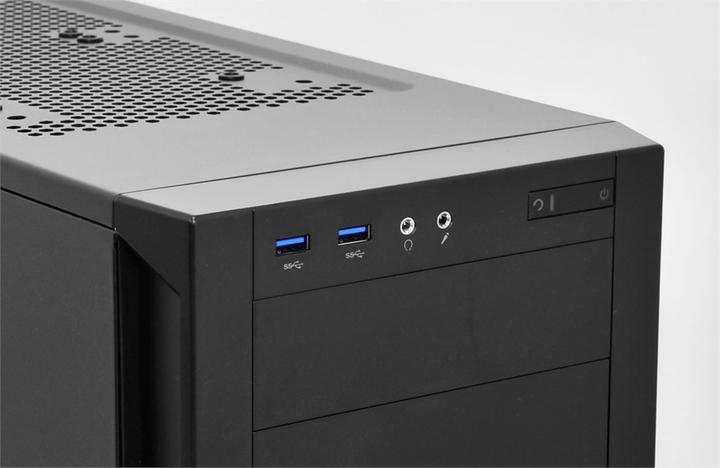

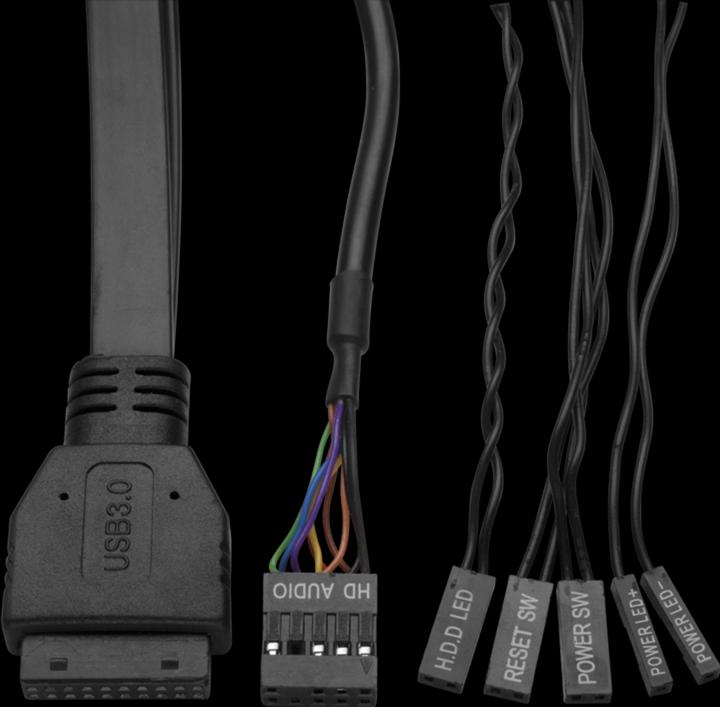

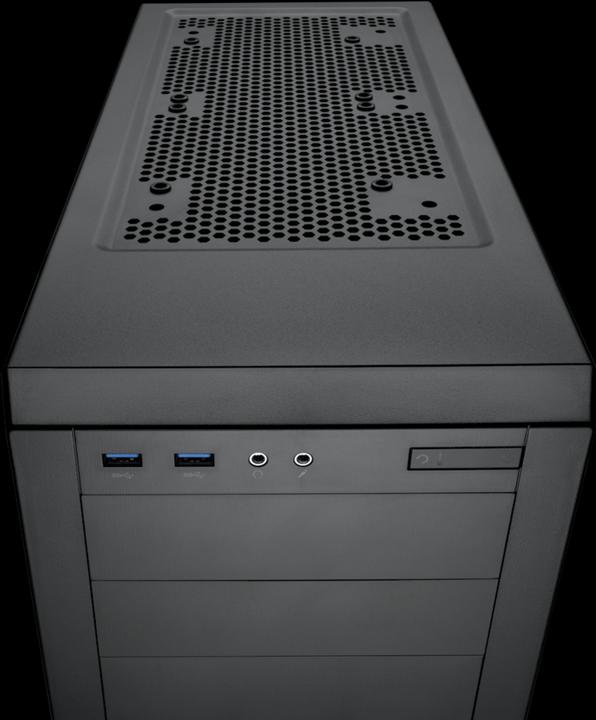

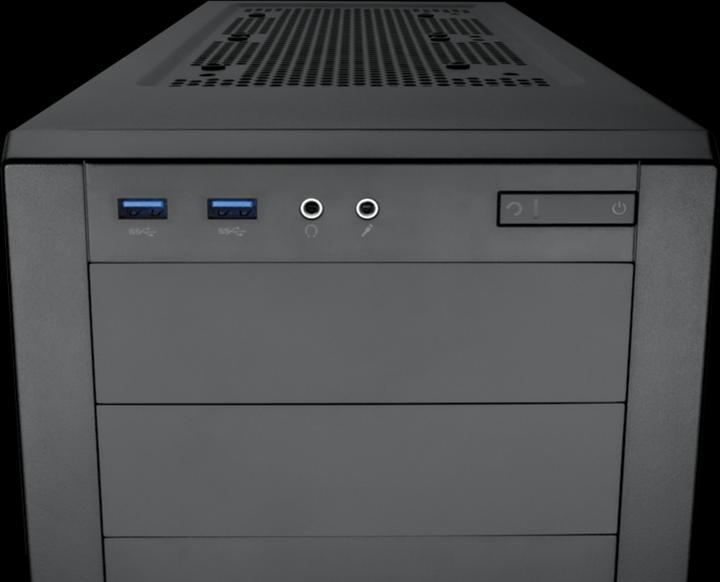

Front connectors
Headphones,
Microphone,
USB 3.0
PC case features

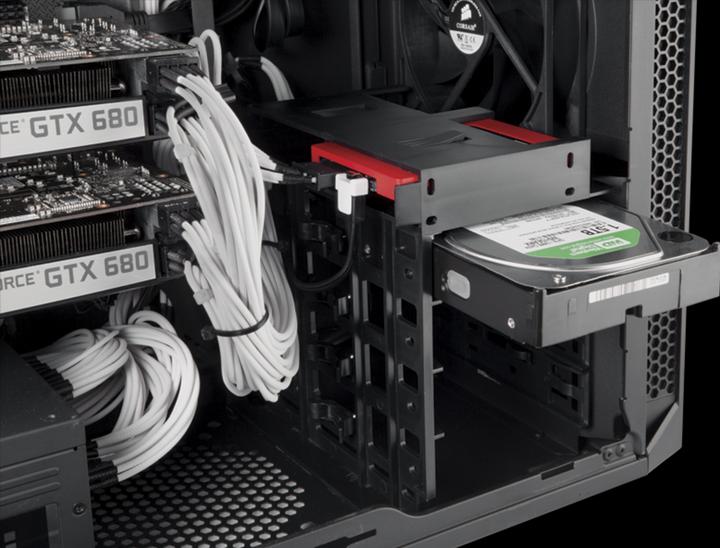

Modular HDD cage
Max. height CPU cooler
165 mm
Item number
375265

General information

Manufacturer
Category
Manufacturer no.
CC-9011023-WW
Release date
4.12.2012

Colour

Colour group
Black
Exact colour description
Black

Material

Material group
Metal
Specific material description
Steel

PC case properties

PC case design
Midi Tower
Form factor
ATX,
Micro ATX (mATX),
Mini-ITX
"Number of 5.25"" drive slots"
3 x
Number of 3.5" drive slots (external)
4 x

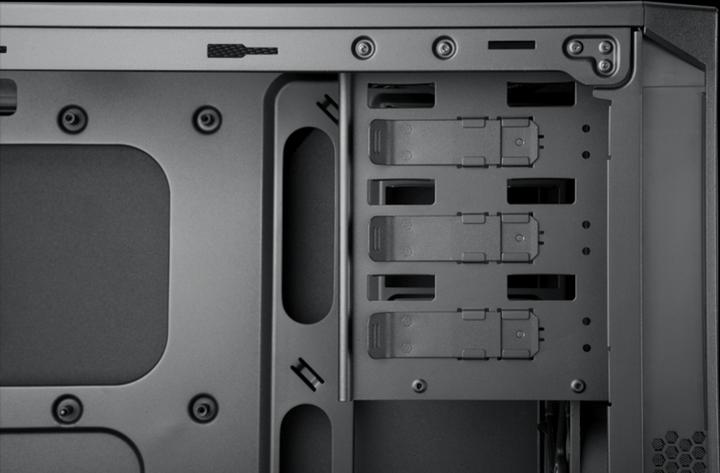

Number of 3.5" drive slots (internal)
4 x
"Number of 2.5""/3.5"" combination slots"
4 x
"Number of 2.5"" drive slots"
4 x

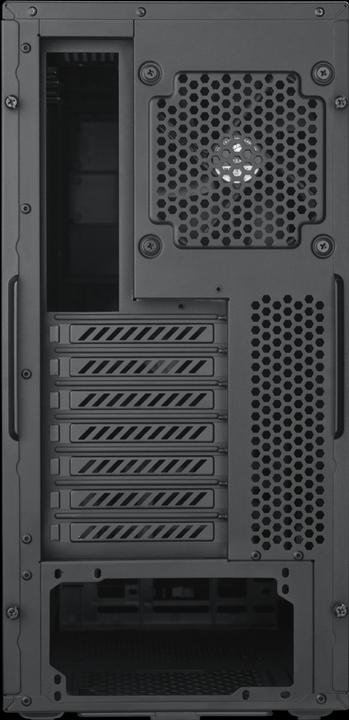

Number of expansion card slots
7 x
Max. length graphics card
420 mm
Max. height CPU cooler
165 mm

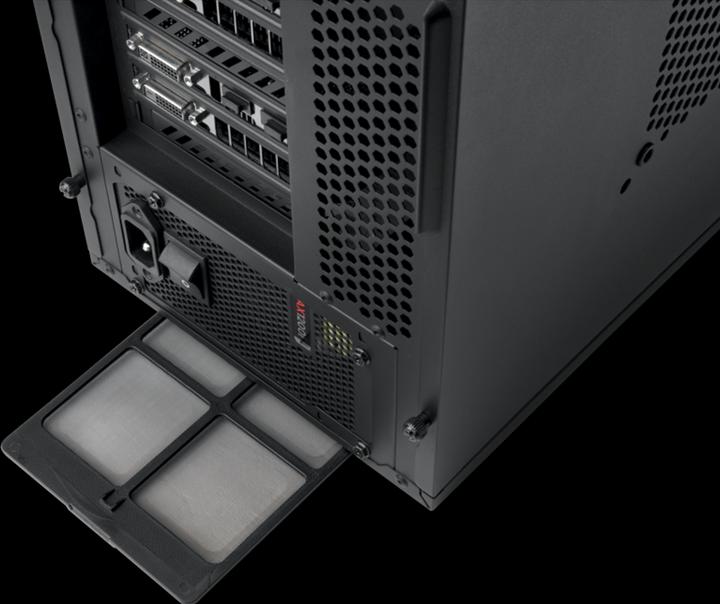

Max length of power supply
180 mm
PC case features
Modular HDD cage

Connections

Front connectors
Headphones,
Microphone,
USB 3.0

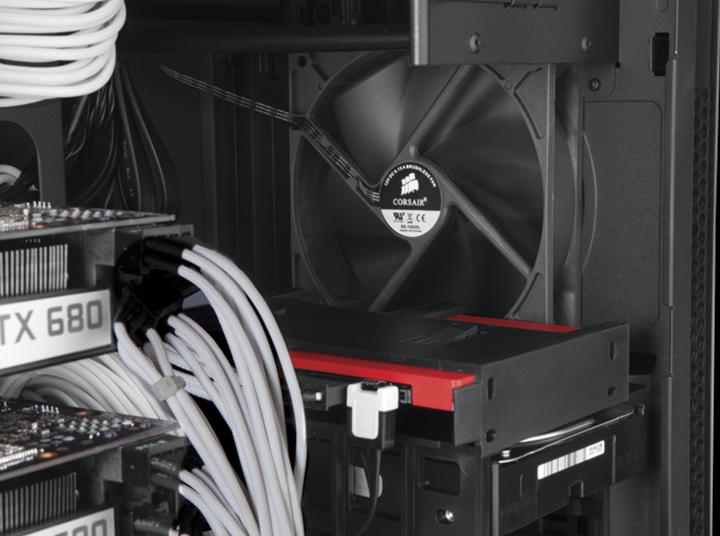

Cooling properties

Number of fans
2 x
Number of fan slots
8 x
Fan location
Aspect,
Bottom side,
Front side,
Rear side,
Top side
Cooling properties
Push/pull possible

Front side

Fans included
1x 120mm
Fan mount locations
2x 120mm

Rear side

Fans included
1x 120mm
Fan mount locations
1x 120mm

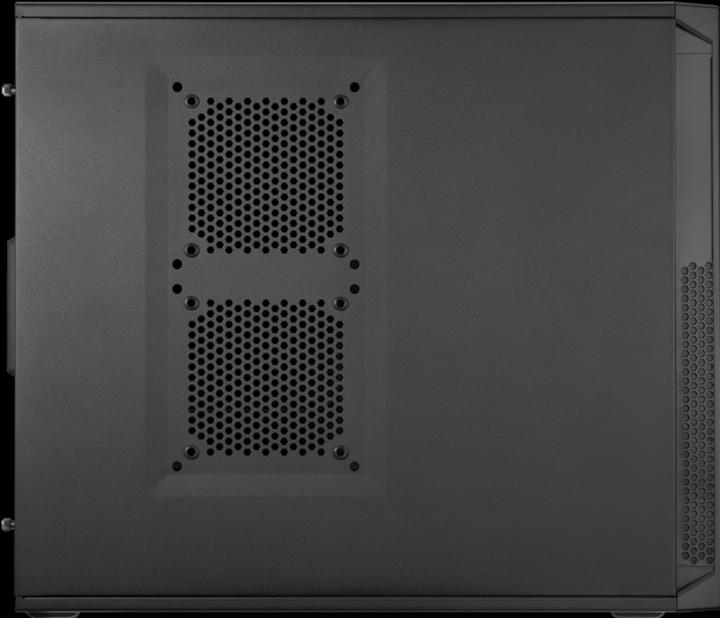

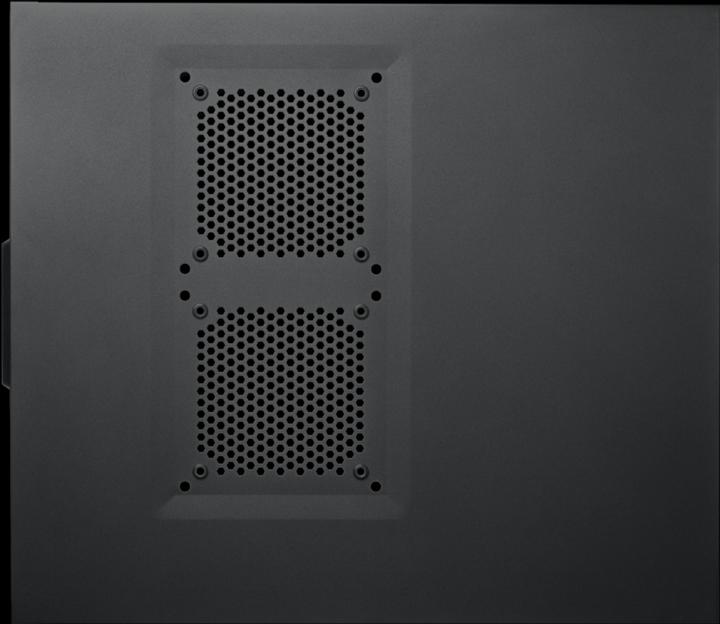

Side

Fans included
Optional fan
Fan mount locations
2x 120mm,
2x 140mm

Bottom side

Fans included
Optional fan
Fan mount locations
1x 120mm,
1x 140mm

Top side

Fans included
Optional fan
Fan mount locations
2x 120mm,
2x 140mm

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
43 cm
Length
49.70 cm
Width
21 cm
Weight
6 kg
