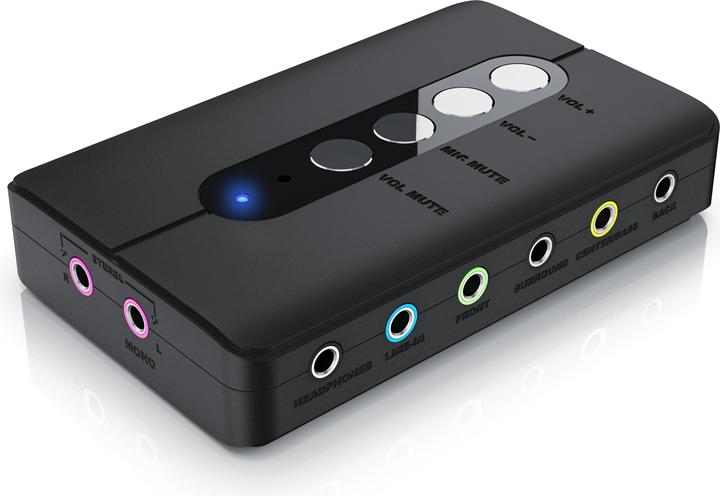

The external surround sound card for those who want more options.

11 connections and 7 functions in one device: line-in, headphone amplifier, 7.1 surround output, 2 microphone inputs, SPDIF input and output; USB type B input for connection to the computer.

Product features

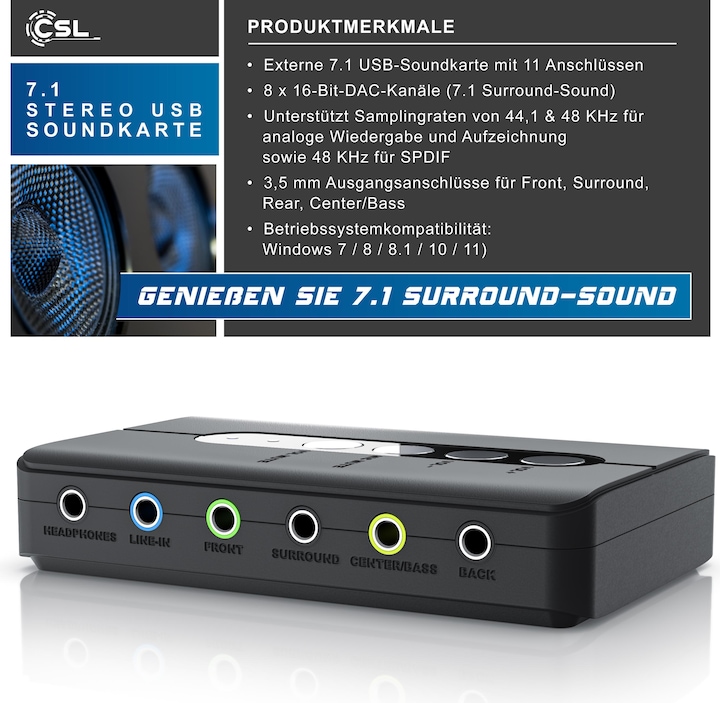

• External 7.1 USB sound card with 11 connections

• Headphone output

• 2 microphone inputs (2 x mono or 1 x stereo (with corresponding software)

• 1 surround outputs

• Analogue line-in input

• SPDIF input (looped through)

• SPDIF output

• USB cable from type A to type B (sound card input) included

• Volume control

• Microphone and sound mute

• 1 x blue LED for mic mute and 1 x blue LED for power/activity

• 8 x 16-bit DAC channels (7.1 surround sound)

• supports sampling rates of 44.1 and 48 KHz as well as 48 KHz for SPDIF

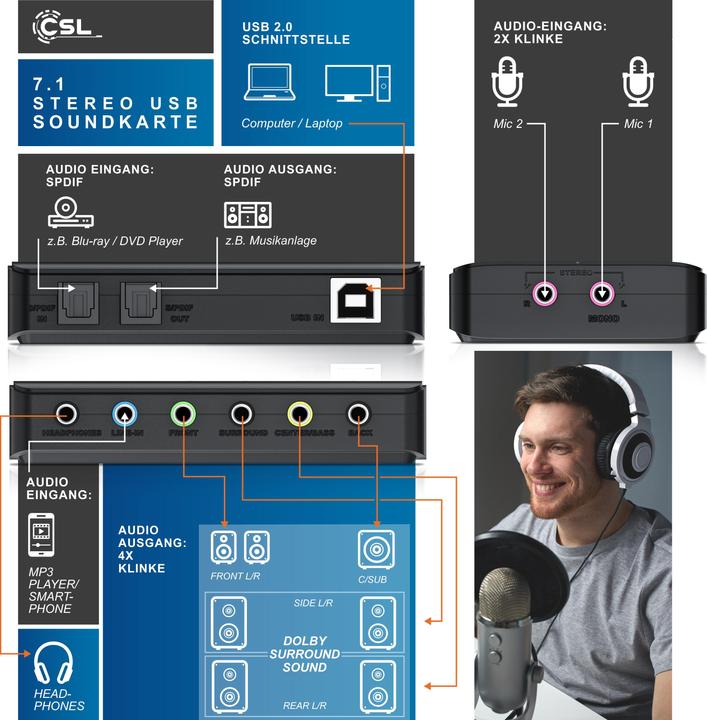

Connections

• USB type B (connection to PC/notebook)

• 3.5mm jack - headphones (headphones)

• 3.5mm jack - Line-IN

• 3.5mm jack - front

• 3.5mm jack - Surround

• 3.5mm jack - centre/bass

• 3.5mm jack - Back

• 3.5mm jack - right jack (R/MONO)

• 3.5mm jack - jack left (L/MONO)

• Toslink - S/PDIF In

• Toslink - S/PDIF Out

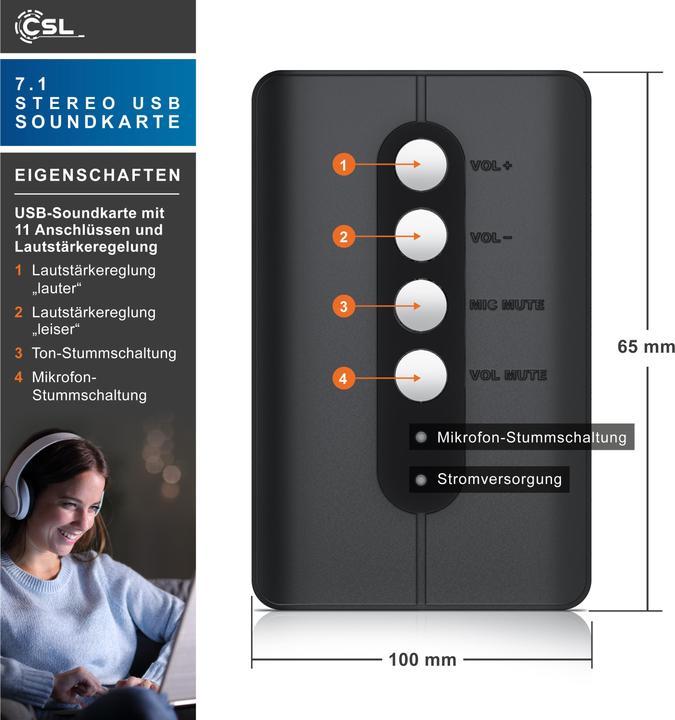

Dimensions - (L x W x H): 22 x 100 x 65 mm | Weight: 85 g | USB cable length: 100 cm | Colour: black

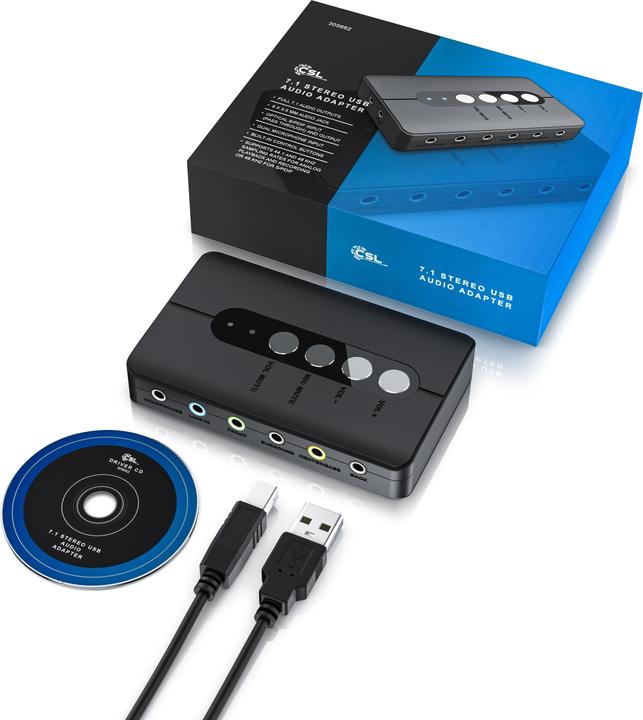

Scope of delivery - USB sound card + 1m USB cable type A to type B plug + driver CD + operating instructions

Technical data

• Operating system compatibility: Windows 7 / 8 / 8.1 / 10 / 11

• LED indicators: Microphone mute | power supply / activity

• Ambient temperature: + 0-3°C to 35-40°C

• Chipset: Cmedia CM6206.
