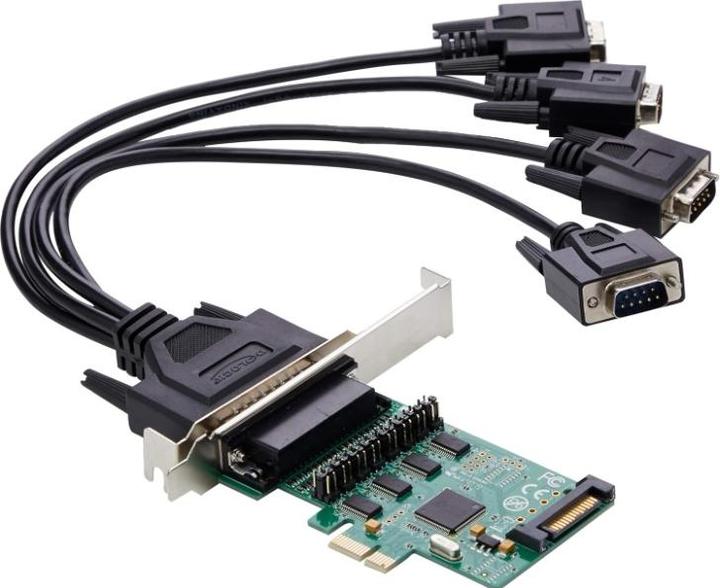

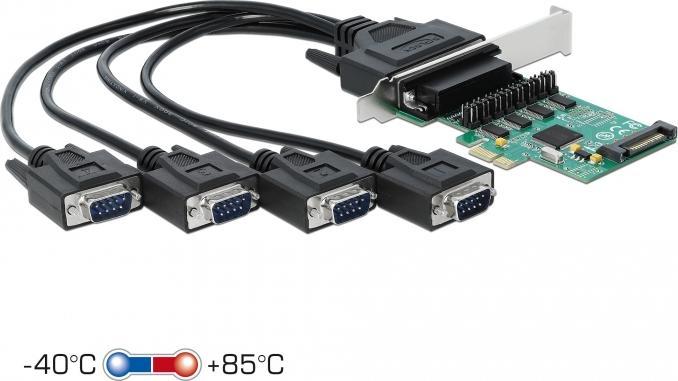

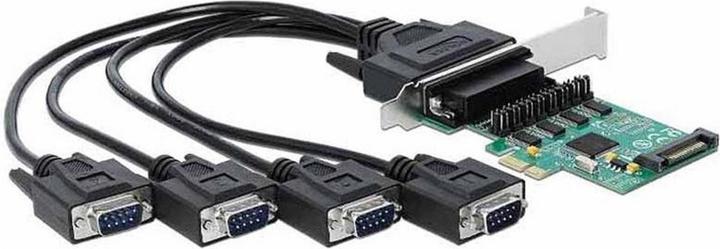

The Delock PCI Express card expands the PC with four external serial ports. Connected devices can optionally be powered with a voltage of 5 V or 12 V.

Low Profile Form Factor

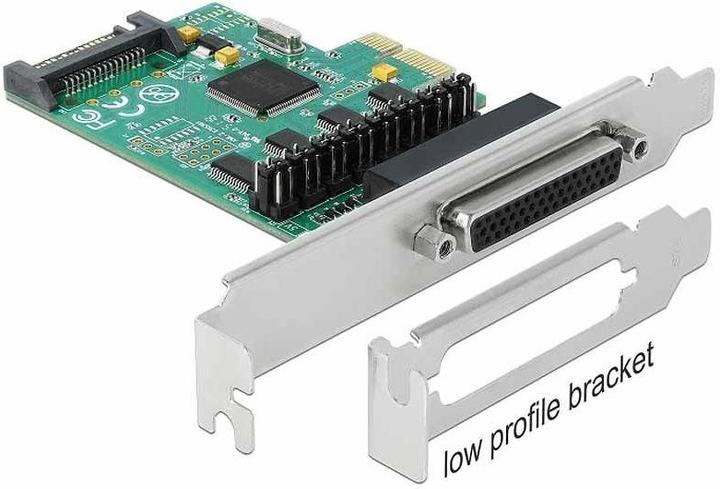

With the included low profile bracket, the PCI Express card can also be installed in a mini-PC.

Specifications

• Connections:

external:
1 x DB44 socket
Connection cable: DB44 plug > 4 x Serial RS-232 DB9 plugs
internal:
1 x PCI Express x1, V1.1
1 x SATA 15 Pin connector

• Chipset: WCH384L
• Data transfer rate up to 460.8 Kbps
• FIFO: 256 Byte
• Data bits: 4, 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity bit: even, odd, none, mark, space
• Flow control: none, hardware RTS/CTS, software XON/XOFF
• Compatible with 16C950 UART

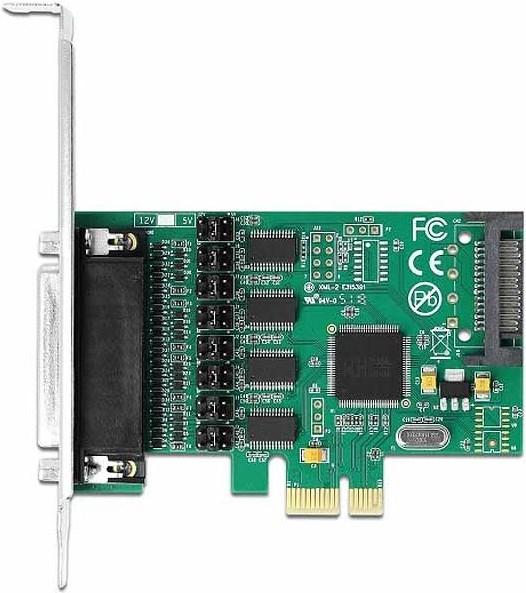

• 5 V or 12 V voltage individually adjustable for each port via jumper (Pin 1 or 9)
• Electrical power per port: 10 Watts (5 V / 2 A)
• Electrical power per port: 24 Watts (12 V / 2 A)

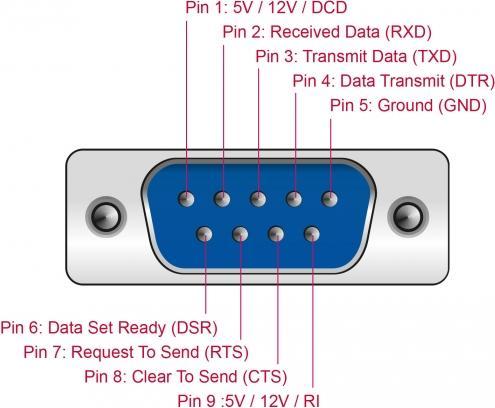

• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Cable length including connectors: approx. 35 cm

System Requirements

• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with a free PCI Express slot
• Power supply with a free SATA power connector

Package Contents

• PCI Express card
• Low profile bracket
• 1 serial connection cable
• Driver CD
• User manual.
