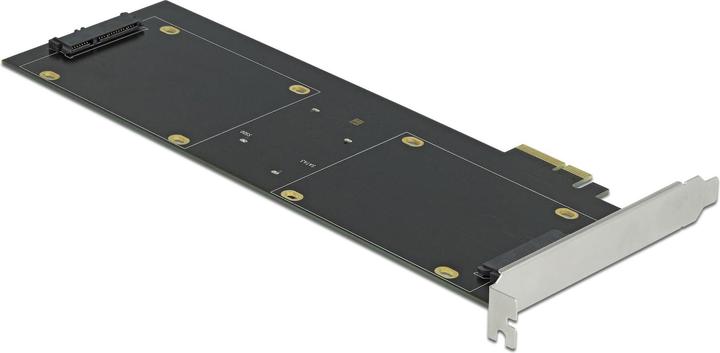

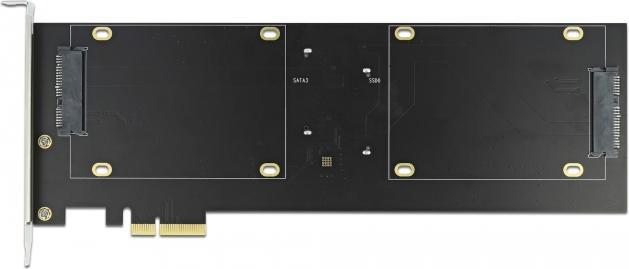

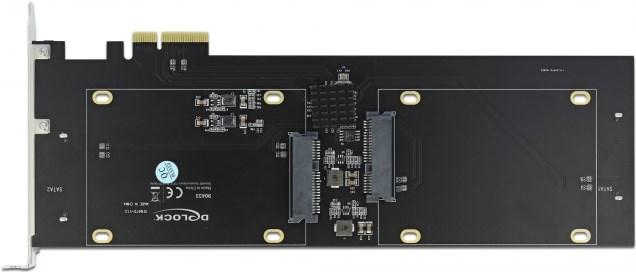

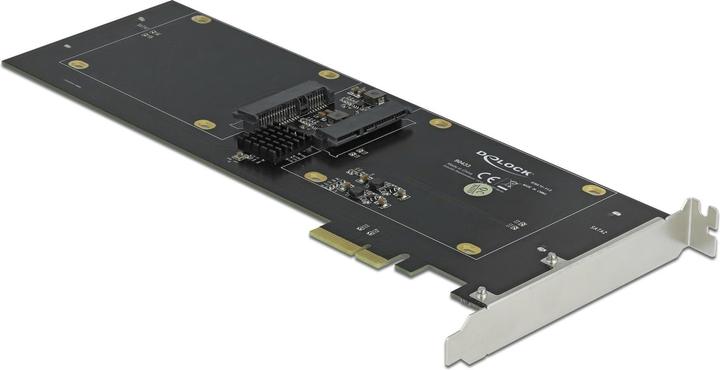

This PCI Express card from Delock expands the PC with four SATA 22 pin ports. Up to four 2.5-inch SSDs or HDDs can be connected to the card. When using more than one SATA port, there is the option to utilize different RAID modes.

HyperDuo Support
The card supports the HyperDuo function. This feature combines an SSD and an HDD to leverage the advantages of both storage types: the speed of the SSD and the capacity of the HDD.

RAID Support
Additionally, the card supports various RAID modes such as RAID 0, 1, 10, or JBOD. Furthermore, if enough SSDs or HDDs are installed, two different RAID modes can be operated simultaneously. For example, two drives can be configured in RAID 0 while two others are set up in HyperDuo, or also RAID 0 and RAID 1.

Specifications

• Connections:

internal:
1 x PCI Express x4 (2-Lane), V2.0
4 x SATA 22 pin sockets

• Chipset: Marvell 88SE9230
• Suitable for 2.5-inch SATA HDD/SSD:

SATA HDD/SSD up to 6 Gb/s
Supports 5 V HDD/SSD

• Supports RAID 0, 1, 10, JBOD, HyperDuo Virtual Disk (Safe/Capacity)
• Bootable
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Dimensions (LxWxH): approx. 227 x 120 x 20 mm

System Requirements

• Linux Kernel 4.9.4 or higher
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with a free PCI Express x4/x8/x16/x32 slot

Package Contents

• PCI Express card
• 16 x mounting screws
• 4 x HDD/SSD mounting brackets
• Driver CD
• User manual.
