Gigabyte Z790 AORUS ELITE AX

LGA 1700, Intel Z790, ATX
Price in EUR including VAT
128Ratings
BrandMore from Gigabyte
  • free shipping
  • Free returns within 30 days
  • Paypal, Klarna and Credit Card
  • 4.3 for Galaxus on Trustpilot
Delivered the day after tomorrow
8 items in stock

Product details

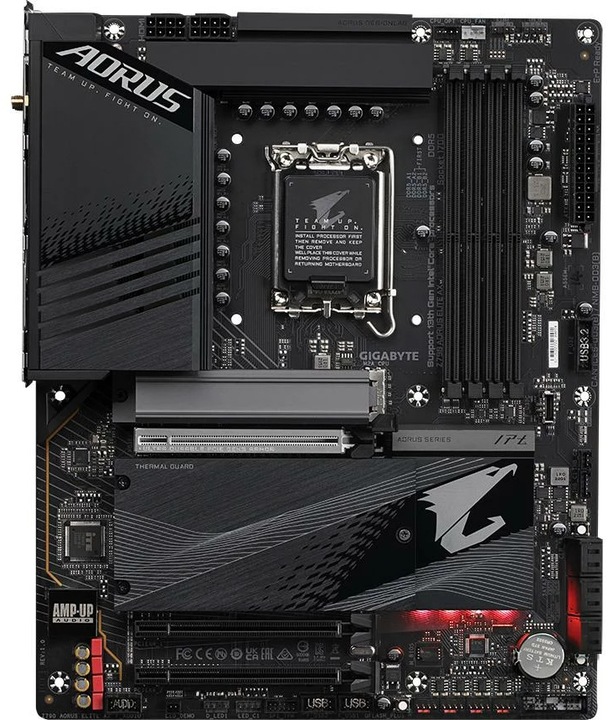

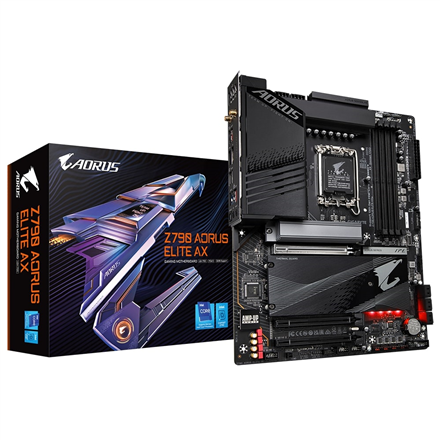

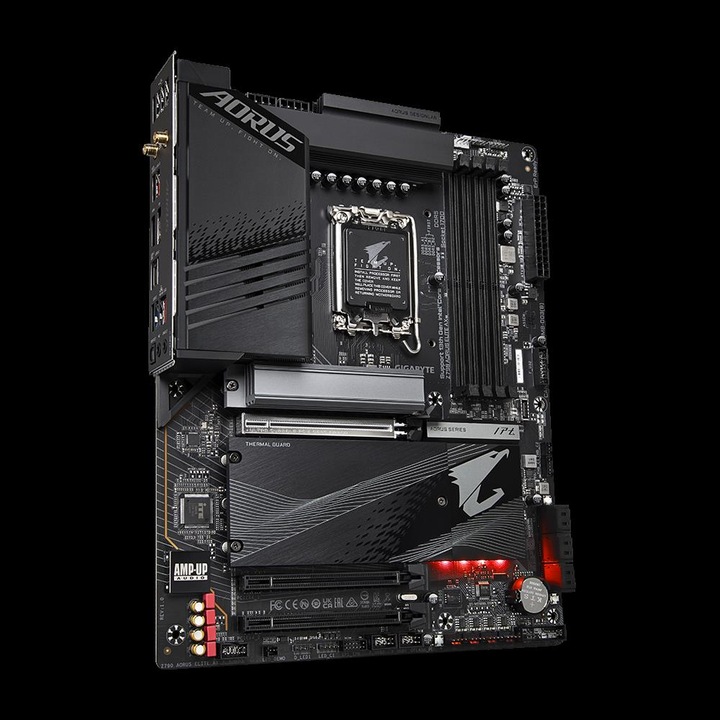

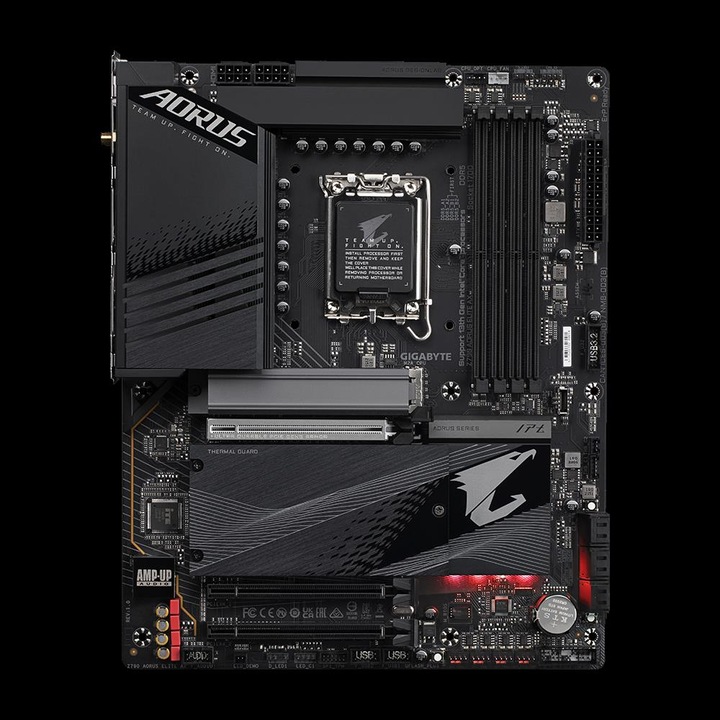

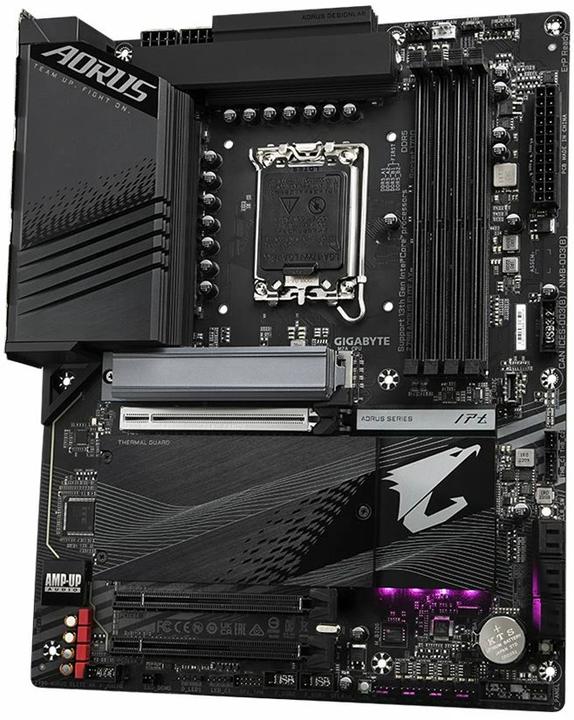

The Gigabyte Z790 Aorus Elite AX ATX motherboard is an ATX motherboard with the high-end Intel Z790 chipset and socket LGA 1700. The motherboard is suitable for desktop processors of the 12th generation
and 13th generation Intel Core CPUs, codename: Alder Lake and Raptor Lake. It supports DDR5 working memory with up to 7.600 MHz. With an extended voltage interface of 16+1+2 phases, this motherboard is perfect for OC enthusiasts. In addition to passively cooled voltage converters, the Gigabyte Z790 Aorus Elite AX impresses with further features such as reset jumpers and clear CMOS jumpers.

Key specifications

Processor family
Celeron,
Core i3 12th Gen,
Core i3 13th Gen,
Core i3 14th Gen,
Core i5 12th Gen,
Core i5 13th Gen,
Core i5 14th Gen,
Core i7 12th Gen,
Core i7 13th Gen,
Core i7 14th Gen,
Core i9 12th Gen,
Core i9 13th Gen,
Core i9 14th Gen,
Pentium
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 (4x),
S-ATA III (6x)
Wireless transmission
Bluetooth,
Wi-Fi
Mainboard features
Temperature sensor connections,
Trusted Platform Module
Item number
22542267

General information

Manufacturer
Gigabyte Technology
Category
Motherboards
Manufacturer no.
Z790 AORUS ELITE AX
Release date
26.9.2022
Sales rank in Category Motherboards
86 of 842

Motherboard properties

Form factor
ATX
Processor socket
LGA 1700
Chipset
Intel Z790
Mainboard features
Temperature sensor connections,
Trusted Platform Module
Operating system compatibility
Windows 10,
Windows 11 Home
Wireless transmission
Bluetooth,
Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b,
Wi-Fi 2 / 802.11a,
Wi-Fi 3 / 802.11g,
Wi-Fi 4 / 802.11n,
Wi-Fi 5 / 802.11ac,
Wi-Fi 6 / 802.11ax

Processor

Processor family
Celeron,
Core i3 12th Gen,
Core i3 13th Gen,
Core i3 14th Gen,
Core i5 12th Gen,
Core i5 13th Gen,
Core i5 14th Gen,
Core i7 12th Gen,
Core i7 13th Gen,
Core i7 14th Gen,
Core i9 12th Gen,
Core i9 13th Gen,
Core i9 14th Gen,
Pentium

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5
Max. RAM OC
7600 MHz
Supported memory speed
4000 MHz,
4800 MHz,
5200 MHz,
5400 MHz,
5600 MHz,
5800 MHz,
6000 MHz,
6200 MHz,
6400 MHz,
6600 MHz,
7000 MHz
Memory type
DDR5 RAM
RAM buffer
Error Correcting Code

Graphics properties

Video connections
DisplayPort (1x),
HDMI (1x)
Video connection version
Display port 1.2,
HDMI 2.0

Network

Network connections
RJ45 (1x)
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (2x)

Data storage

RAID configuration
0,
1,
10,
5

Internal interfaces

Internal connection options
M.2 (4x),
S-ATA III (6x)
Expansion slot
PCI Express x16 (3x)
PCI express version (max.)
5
Number of fan connector
6

Further connections

USB ports
USB-A,
USB-C
Exact USB ports
USB-A 2.0 (4x),
USB-A 3.2 Gen 1 (5x),
USB-A 3.2 Gen 2 (4x),
USB-C 3.2 Gen 2x2 (1x)
Peripheral connections
USB 2.0 Type-A (4x),
USB 3.0 Type-A (3x),
USB 3.1 Gen 2 Type-A (2x),
USB Type-C (1x)

Power supply

Power connectors
2x 8-pin ATX 12V

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
305 mm
Width
244 mm
Height
270 mm

Package dimensions

Length
34.60 cm
Width
28.10 cm
Height
8.50 cm
Weight
2.03 kg
