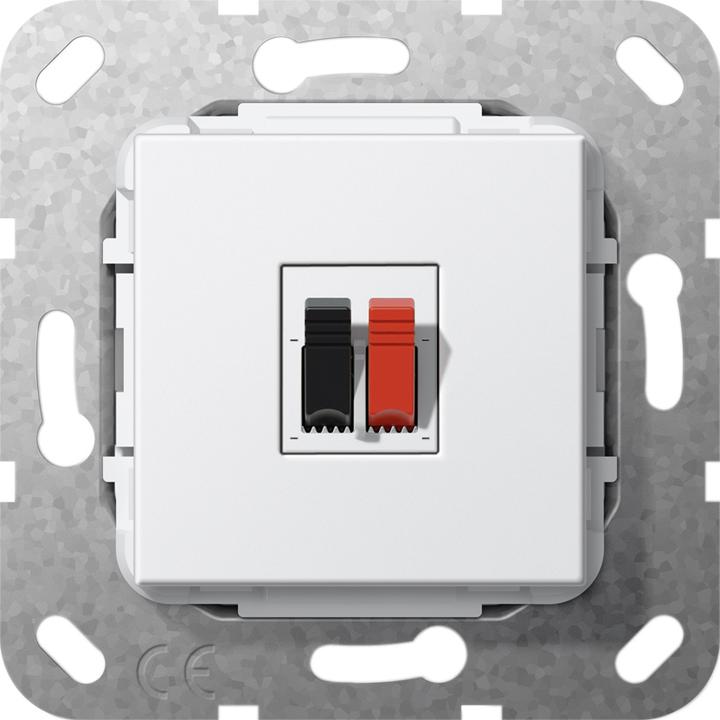

Gira loudspeaker connection 569203
Manufacturer: Gira
Designation: Loudspeaker connection 1 gang rws
Type: 569203
Assembly: Basic element with central cover plate
Use: Loudspeaker connection
Support ring: Yes
With dust protection: No
With hinged cover: No
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: No
Antibacterial treatment: No
Surface protection: Other
Surface finish: Glossy
Color: Pure white
RAL number (similar): 9010
Transparent: No
Mounting type: Mounting with screw
With strain relief: No
Luster terminal: No
With lighting: No
Suitable for protection class (IP): IP20

Gira loudspeaker connection 569203: Further details
Insert loudspeaker connection 1 gang pure white glossy

Features:
Front connection: Plug-in terminals, red black.
Rear connection: Screw terminals.

Notes: For screw mounting only. Attention: Observe installation space for plugs and bending radii. Note for inserts with couplings: Not suitable for duct installation and standard device box. Connection with angle plugs recommended. When using these plugs, there is a power limit of 15 watts for connected devices.

Installation recommendation: Kaiser Elektronic sockets
Flush mounting: Kaiser order no.: 1068-02
Cavity wall mounting: Kaiser order no.: 9062-94
Concrete installation: Kaiser order no.: 1268-40
EAN: 4010337463207.
