Icy Box Raidsonic external dual RAID system for 3.5" SATA I

3.5"
Price in EUR including VAT, free shipping
Delivered between Wed, 30.4. and Mon, 5.5.
More than 10 items in stock at supplier

Product details

Tall. Sure. Quickly.

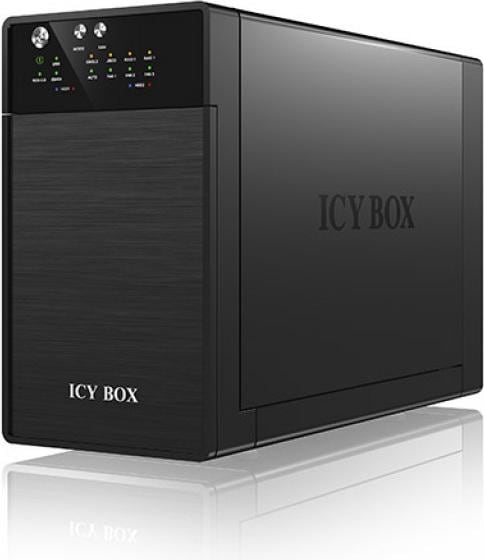

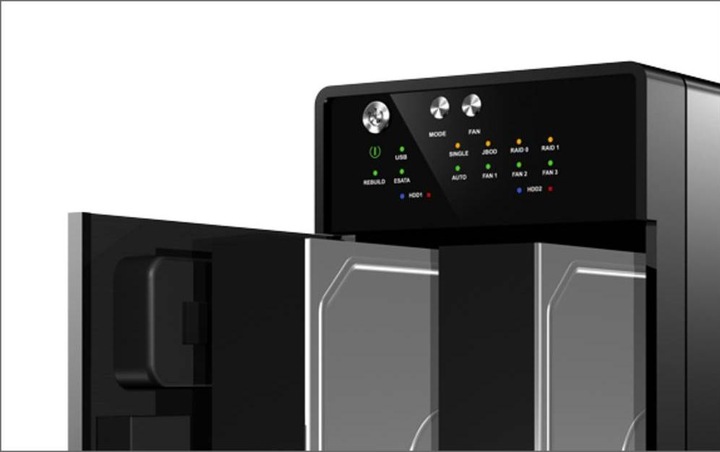

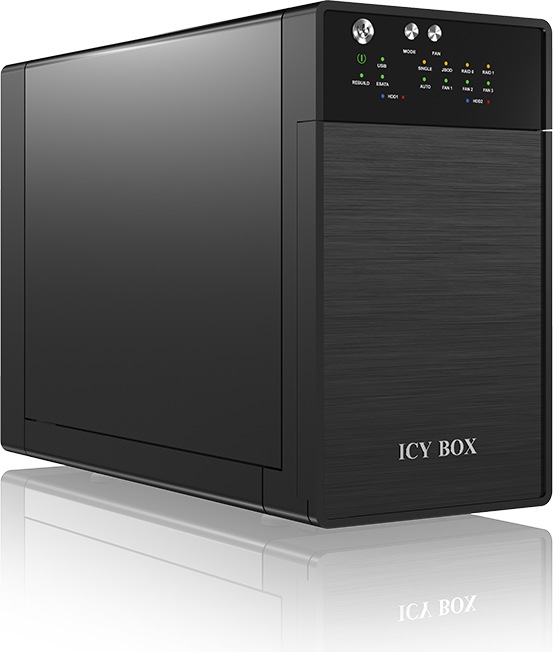

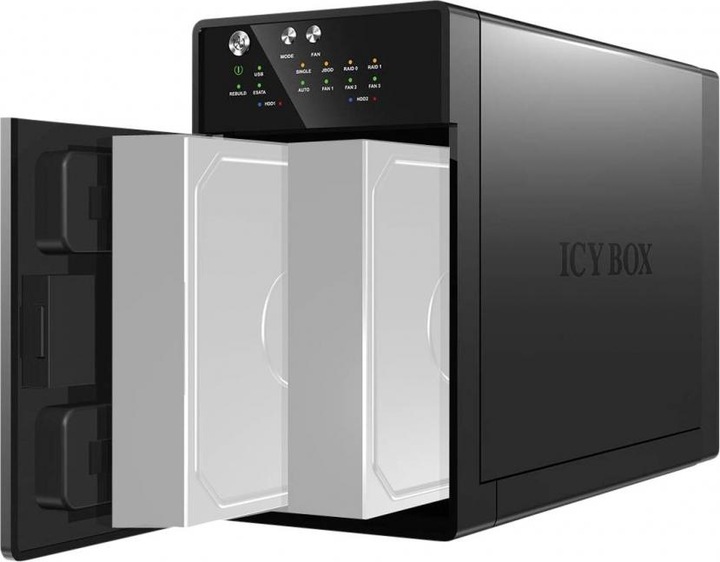

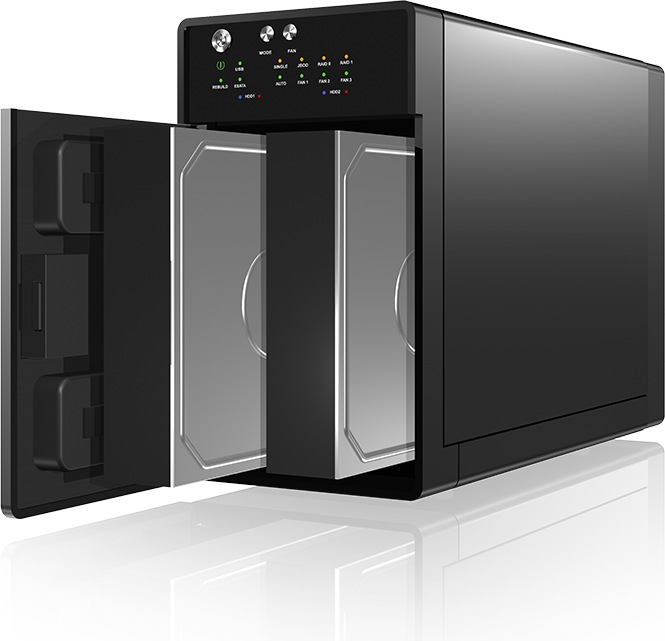

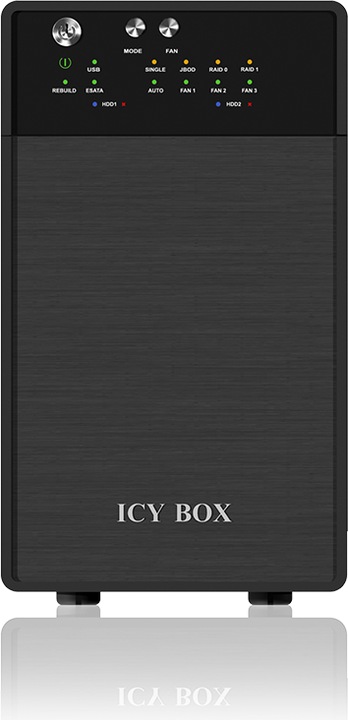

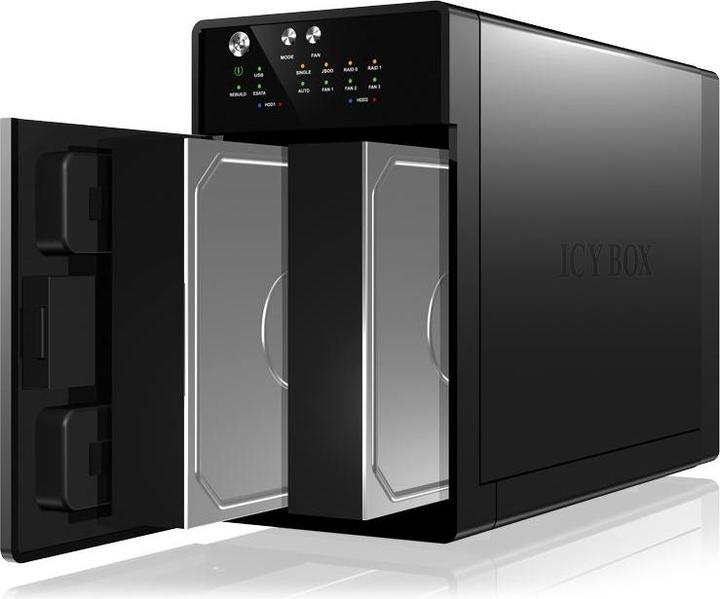

The ICY BOX IB-RD3620 is a dual RAID system designed for fast working with large amounts of data. Up to two SATA hard disks can be installed in the high-quality aluminium housing without tools.

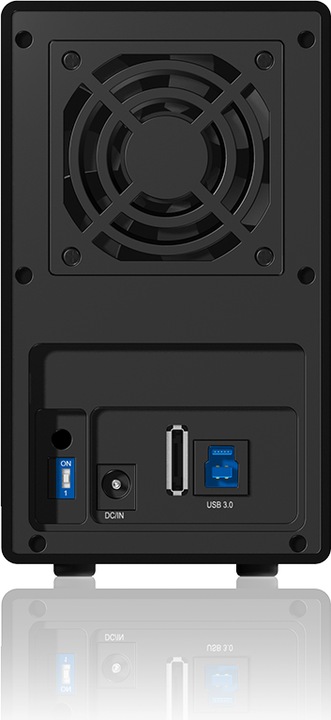

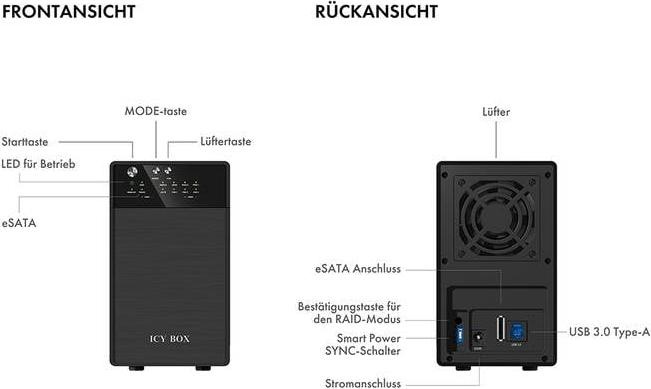

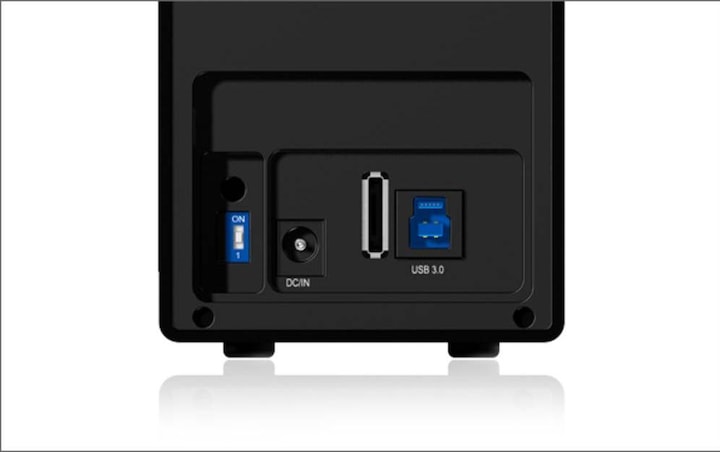

The fast connections (eSATA, USB 3.0) ensure high performance on PCs and MACs, e. g. for video editing or music editing.

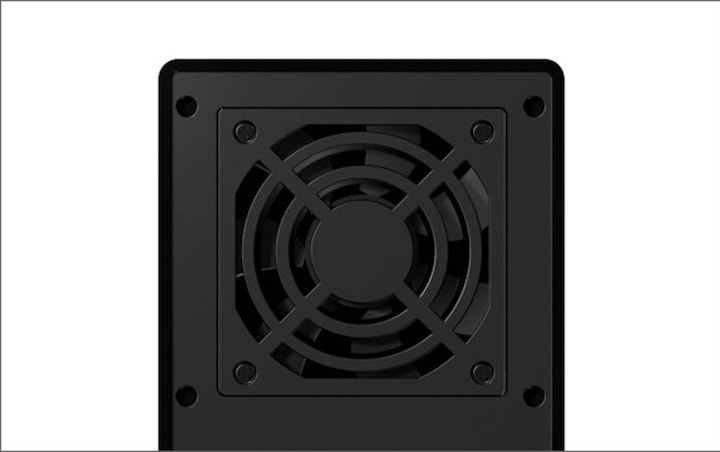

Thanks to the temperature-controlled fan, the IB-RD3620 operates quietly and provides an optimal environment for the valuable data.
The model also has a synchronized standby mode and is therefore very energy-saving.

RAID Definitions for the IB-RD3620SU3
JBOD (RAID 0 Spanning) Spanning connects multiple drives to a large virtual drive, bypassing the physical limitation of individually attached disks.
The data is continuously written from HDD1 to HDD2.
JBOD (Single) Configuration of a RAID controller with multiple disks that do not form a group.
This means that the connected hard disks are made available to the operating system individually.
RAID 0 (RAID 0 Striping) Striping connects multiple drives to a large virtual drive as a logical unit. The data is written to all hard disks in parallel, which leads to an increase in the data transfer rate.
However, if a hard disk fails, all data is lost.
RAID 1 (RAID1 Mirroring) Mirroring is the automatic mirroring of data on several hard disks. This ensures a high level of data security. If a hard disk fails, access is still possible and after the defective hard disk has been replaced, the data mirror is restored.
The usable memory corresponds to the smallest hard disk.

Key specifications

Form factor
3.5"
Number of HDD slots
2
Interface
SATA
USB ports
USB-A
Exact USB ports
USB-A 3.0 (1x)
Documents
Item number
5099410

General information

Manufacturer
Icy Box
Category
Hard drive enclosures
Manufacturer no.
IB-RD3620SU3
Release date
16.6.2015
Sales rank in Category Hard drive enclosures
31 of 720
External links

Colour

Colour
Black
Exact colour description
Black

Material

Material group
MetalPlastic
Material
AluminiumPlastic

Case properties

External case type
HDD housing
Form factor
3.5"
Number of HDD slots
2
Protocol
AHCI (SATA)
Maximum possible storage capacity
3 TB
Max. data transfer rate
5000 Mbit/s
RAID configuration
01JBOD
Hard drive height
26mm
Hard disk enclosure functions
FanHot swapping

Internal interfaces

Interface
SATA

Connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (1x)
Data ports
eSATA (1x)

Power supply

Power supply
Electrical connection
Power consumption
48 W

Origin

Country of origin
Taiwan

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
eSata cableUSB cable

Product dimensions

Length
21.50 cm
Width
12.60 cm
Height
16.60 cm
Weight
1110 g

Package dimensions

Length
24.10 cm
Width
23.90 cm
Height
10 cm
Weight
1.67 kg
