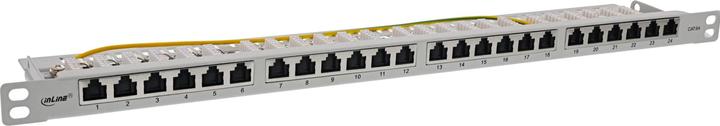

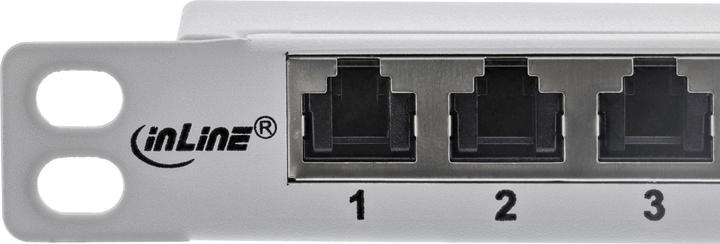

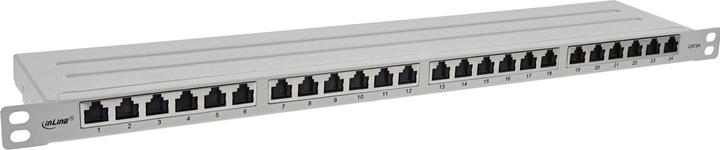

Up to 24 installation cables can be connected via LSA insulation displacement connectors in this 19" patch panel. The patch panel is designed for Cat. 6A and is fully shielded. The RJ45 connections are numbered consecutively. To protect the contacts from coarse dust, the sockets are equipped with an integrated dust cover that folds away inwards when the network cable is plugged in.

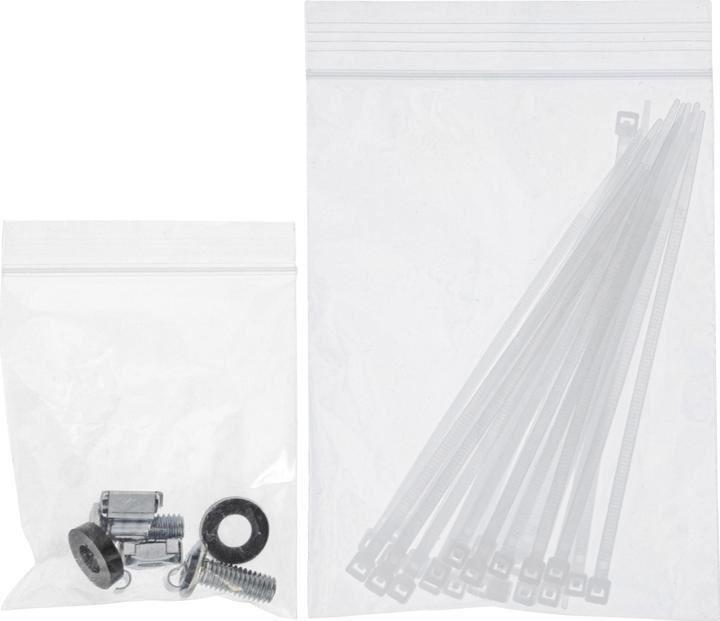

• Suitable for mounting in a 19" network cabinet, incl. mounting material.

• Only 23 mm high (0.5 U), slim design, so that e.g. two panels can also be installed in one U

• With 24 RJ45 sockets

• Connection of the installation cable via LSA insulation displacement connectors

• Designed up to Cat. 6A according to IEC 60603-7-5, fully shielded

• Assignable according to TIA/EIA-568A/B with colour coding

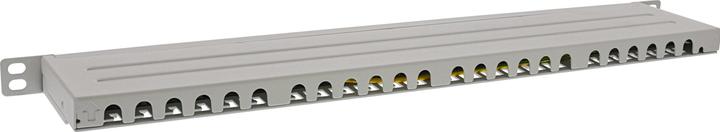

• With strain relief for the installation cable

• with earthing cable

• Housing can be opened without screws.
