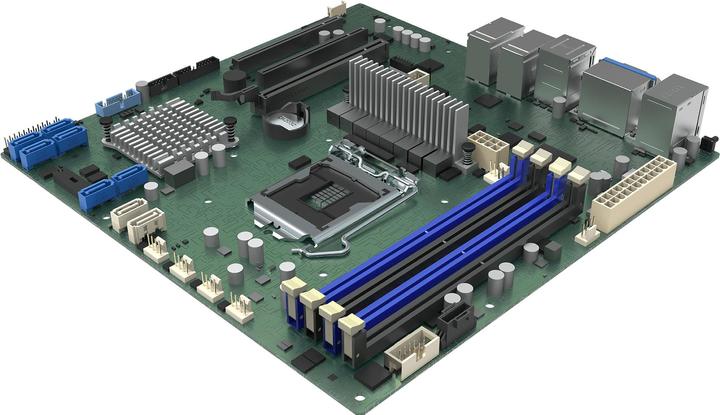

Intel Server Board M10JNP2SB Disti 5 p

LGA 1151, Intel C246, mATX
Price in EUR including VAT, free shipping
Delivered between Thu, 8.5. and Thu, 15.5.
Only 3 items in stock at supplier

Product details

TPM Version
TPM (Trusted Platform Module) is a component that provides hardware-level security at system startup using stored security keys, passwords, as well as encryption and hash functions.

Integrated BMC with IPMI
IPMI (Intelligent Platform Management Interface) is a standardized interface used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a special microcontroller that enables IPMI.

PCIe x4 Gen 3
PCIe (Peripheral Component Interconnect Express) is a high-speed serial computer expansion bus standard that allows hardware devices to be connected to a computer. This field indicates the number of PCIe sockets for the existing lane configuration (x8, x16) and PCIe generation (1.x, 2.x).

Integrated Graphics
The integrated graphics provide exceptional graphic quality, fast graphic performance, and flexible display options without the need for a separate graphics card.

RAID Configuration
RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple hard drive components into a logical unit and distributes data across the array defined by RAID levels. It specifies the level of redundancy and the required performance.

Key specifications

Processor family
Xeon E
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
S-ATA III (8x)
Mainboard features
Trusted Platform Module
Item number
15655339

General information

Manufacturer
Intel
Category
Motherboards
Manufacturer no.
DBM10JNP2SB
Release date
14.4.2021

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
LGA 1151
Chipset
Intel C246
Mainboard features
Trusted Platform Module

Processor

Processor family
Xeon E

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Max. RAM OC
2666 MHz
Supported memory speed
2666 MHz
Memory type
DDR4-RAM
RAM buffer
ECC Registered

Graphics properties

Video connections
D-Sub (1x)DisplayPort (2x)

Network

Network connections
RJ45 (4x)

Data storage

RAID configuration
01105

Internal interfaces

Internal connection options
S-ATA III (8x)
Expansion slot
PCI Express x4 (Gen 3) (1x)PCI Express x8 (Gen 3) (2x)

Further connections

USB ports
USB-A
Exact USB ports
USB-A 3.2 Gen 1 (4x)

Sustainability

Manufacturer commitment
RE100

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Intel fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Package dimensions

Length
38 cm
Width
34 cm
Height
8 cm
Weight
1.31 kg
