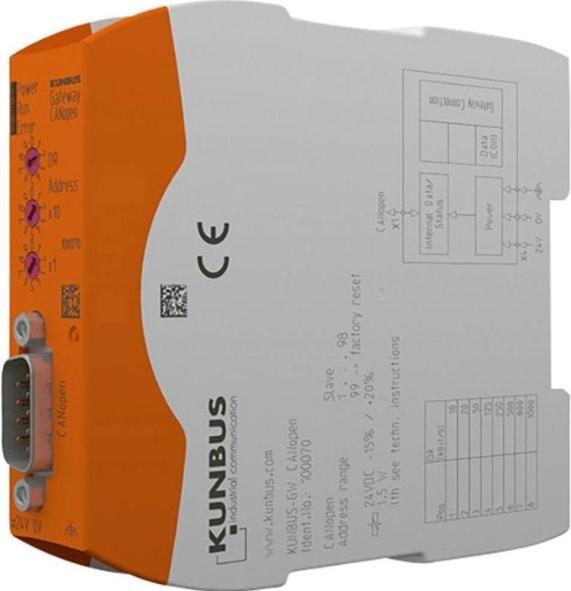

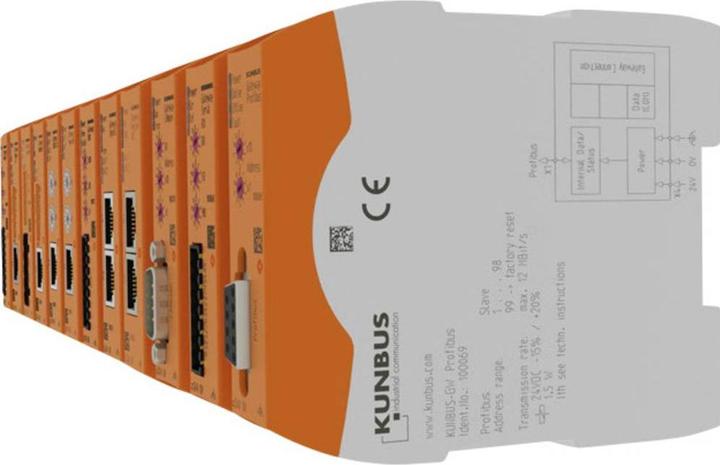

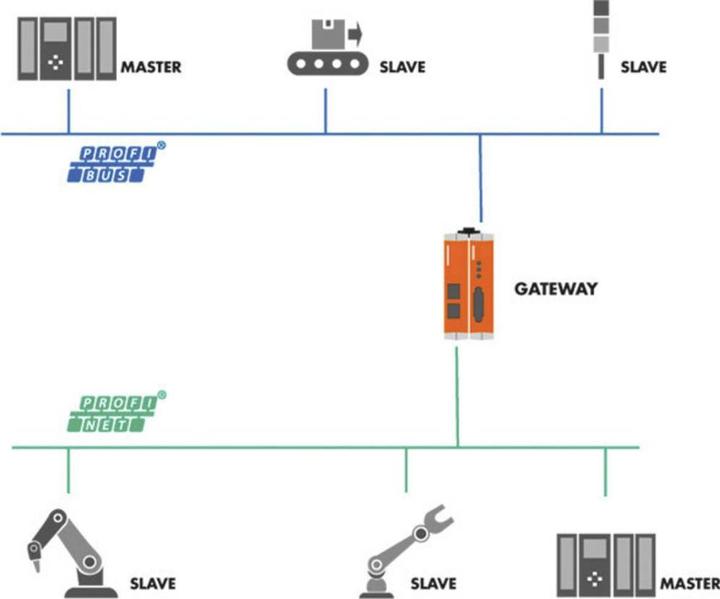

With the help of the RevPi Gates, the RevPi system can be connected to various industrial networks. These gateways are connected to the base module via the system connector, just like the other expansion modules. Up to two gateways can be connected to each base module. The cyclical data exchange between the gateway and the central process image of the RevPi Core 3 or RevPi Connect occurs every 5 ms, regardless of the bus protocol and system configuration. Due to the required computing power, we recommend using the gateways exclusively in conjunction with the Quad-Core equipped RevPi Core 3 or RevPi Connect. Dimensions: 22.5 x 101.4 x 115 mm.
