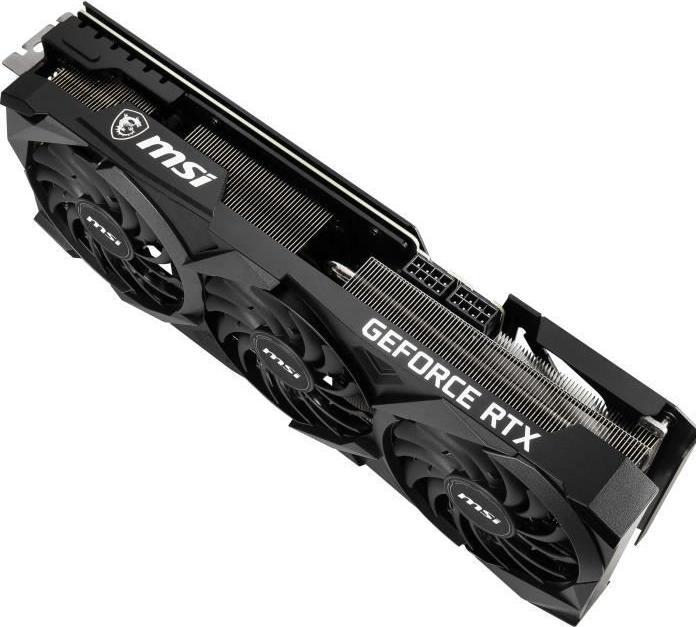

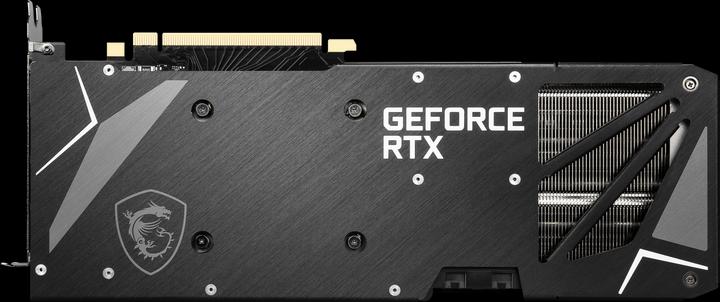

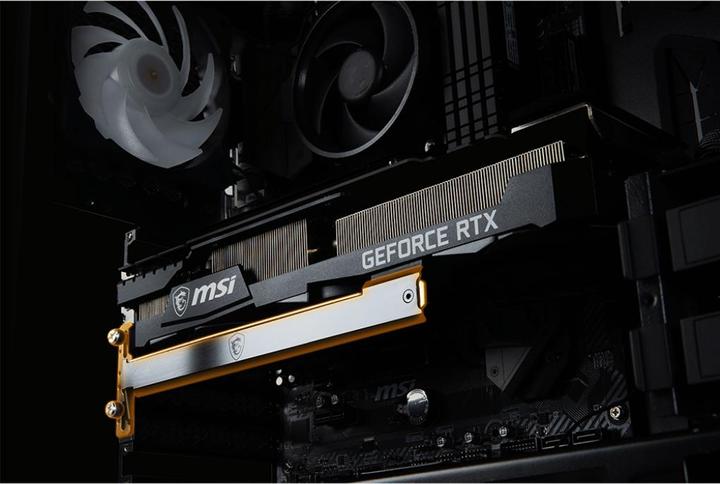

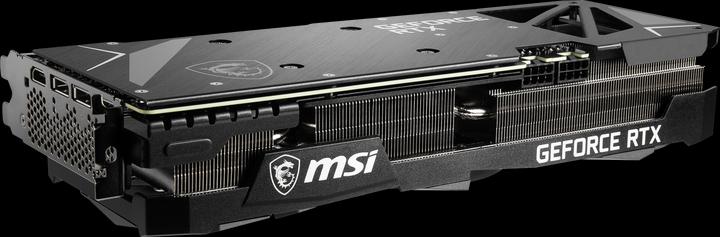

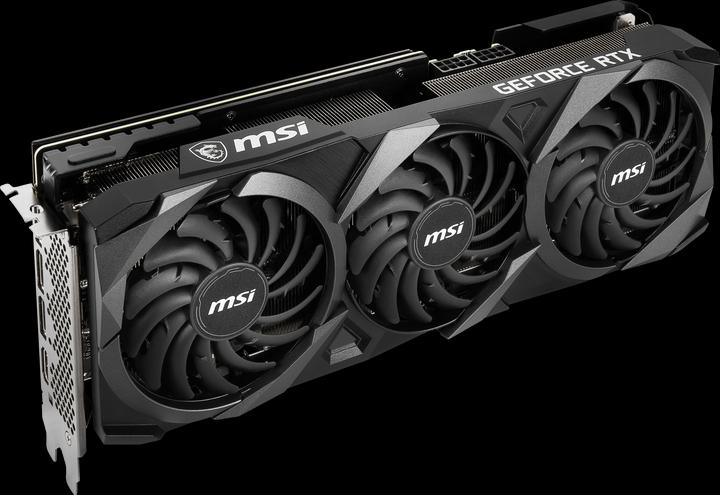

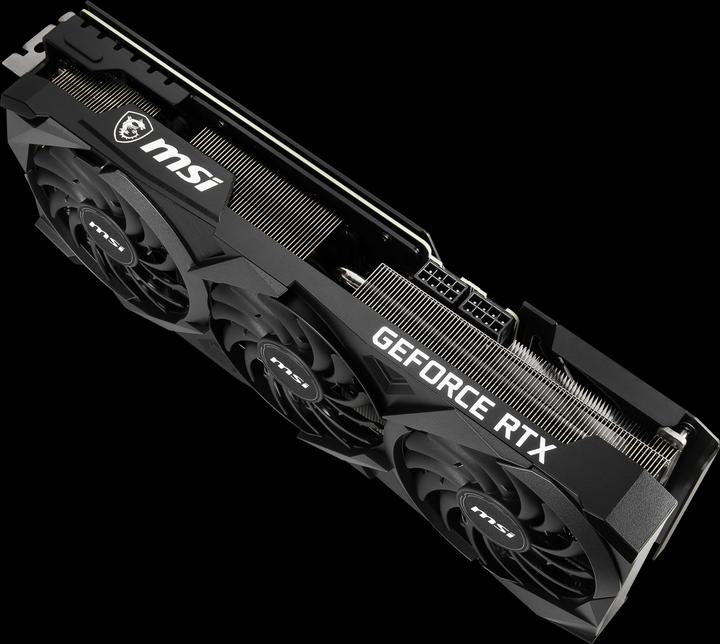

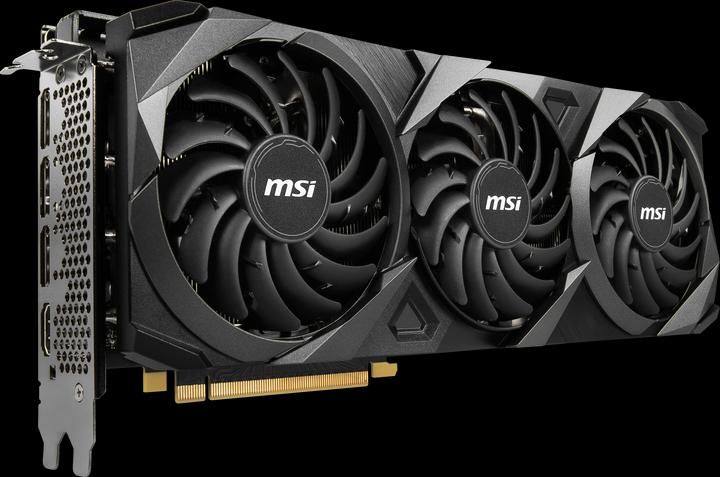

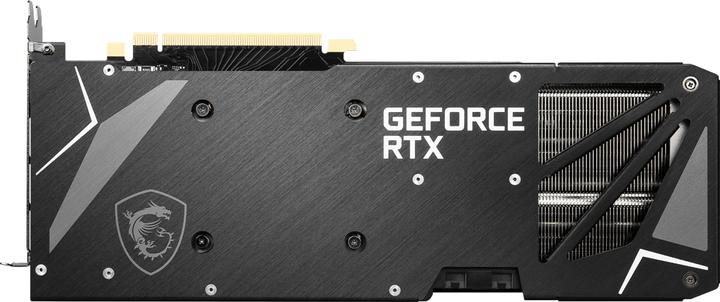

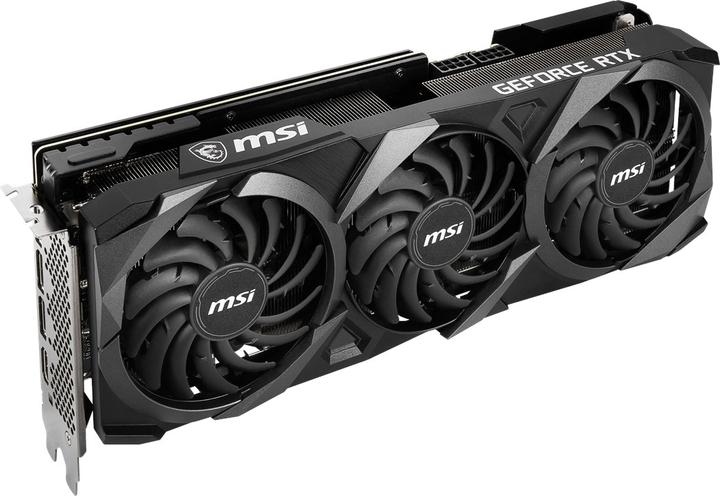

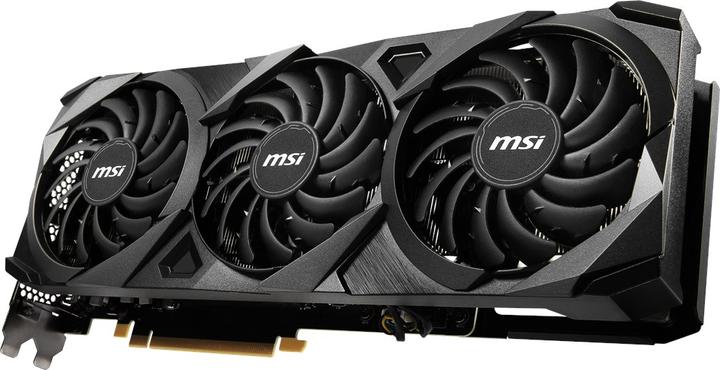

Name: GeForce RTX 3070 Ti Ventus
Brand: MSI
SKU: 16006612
Rating: 4.07 (14 reviews)

productDetailPageQuery

The GeForce RTX 3070 Ti graphics card is powered by Ampere, Nvidia's second-generation RTX architecture. Equipped with enhanced RT cores and Tensor cores, modern streaming multiprocessors, and ultra-fast G6X memory, it provides you with the performance you need to play the most demanding games.

Key specifications

Length

Number of shaders

A shader in the field of computer graphics is a set of software instructions, which is used by the graphic resources primarily to perform rendering effects. Shaders are used to allow a 3D application designer to program the GPU (Graphics Processing Unit) "programmable pipeline", which has mostly superseded the older "fixed-function pipeline", allowing more flexibility in making use of advanced GPU programmability features.

Graphics card model

A video card, also referred to as a graphics accelerator card, display adapter, graphics card, and numerous other terms, is an item of personal computer hardware whose function is to generate and output images to a display.

Video memory clock

Clock speed of the graphics memory, which is calculated depending upon type of memory (GDDR5, etc.) from the effective memory clock. A graphics card with effective memory clock of 975MHz and GDDR5 memory type has, thus a memory clock of 3.9 GHz since GDDR5 allows a 4X data transfer per clock cycle.

Max. connected monitors

Max. Video resolution

Power consumption

Item number

GeForce RTX 3070 Ti Ventus

Graphics card

Internal cables (PC)

Monitor

Motherboards

Power Supply PC

Video cables

14-day cancellation right
30-day right of return

General information

Graphics card properties

Graphics processing unit

Video memory

Cooling properties

Graphics card technologies

Connections

Power supply

Sustainability

Voluntary climate contribution

Product dimensions

Legal Notice

Manufacturer	MSI
Category	Graphics card
Manufacturer no.	V505-007R
Release date	18.5.2021

Max. connected monitors	4 x
PCI Express version	PCIe 4.0
Max. Video resolution	7680 x 4320 pixels
Expansion card form factor	3 slots
LED colour	without LED

Graphics chip (GPU)	nVidia GeForce
Graphics card model	GeForce RTX 3070 Ti
Processor clock frequency	1575 MHz
Boost frequency	1800 MHz
Number of shaders	6144 x

Video memory type	GDDR6X
Storage capacity	8 GB
Video memory clock	19 GHz
Memory Interface	256 bits
Memory Bandwidth	19 GB/s

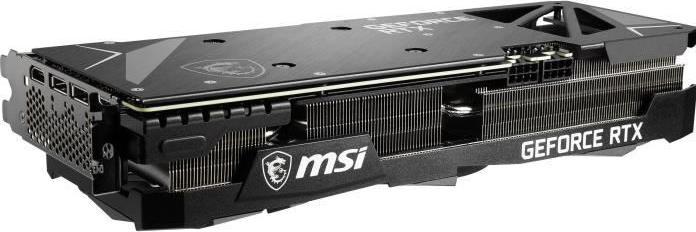

Graphics card cooling system	Active cooler
Number of fans	3 x

Your data. Your choice.

Search

MSI GeForce RTX 3070 Ti Ventus

Product details

Key specifications

General information

Graphics card properties

Graphics processing unit

Video memory

Cooling properties

Graphics card technologies

Connections

Power supply

Sustainability

Product dimensions

Legal Notice

Reviews & Ratings

Length	31.60 cm
Number of shaders	6144 x
Graphics card model	GeForce RTX 3070 Ti
Video memory clock	19 GHz
Max. connected monitors	4 x
Max. Video resolution	7680 x 4320 pixels
Power consumption	290 W
Item number	16006612

DirectX version	12
OpenGL version	4.60
Multi-GPU technology	NVIDIA Quad SLI

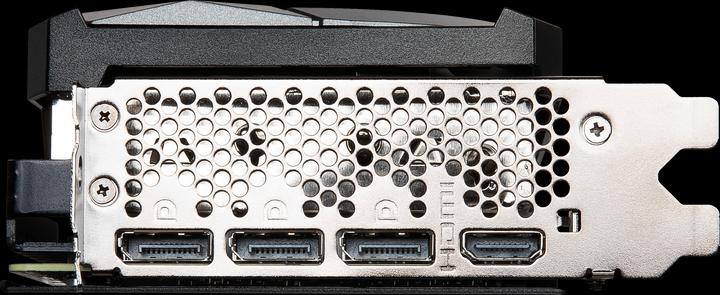

Video connections	DisplayPort (3x), HDMI (1x)
HDMI version	2.1
DisplayPort version	1.4a

Power consumption	290 W
Min. recommended system performance	750 W
Power connectors	2x 8-pin PCI-E

Product dimensions
Length	31.60 cm
Width	5.60 cm
Height	12.10 cm
