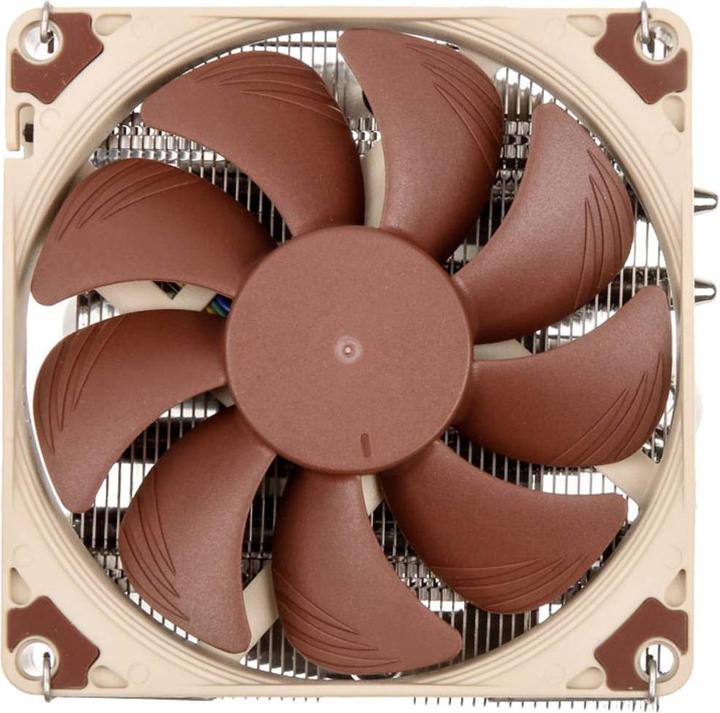

Noctua NH-L9x65

65 mm
Price in EUR including VAT, free shipping
Delivered between Sat, 26.4. and Tue, 29.4.
1 item ordered

Product details

With a height of 65 mm instead of 37 mm and four heat pipes instead of two, the NH-L9x65 offers significantly more performance reserves than its lower-profile sibling models, while maintaining the same footprint of 95 x 95 mm. This ensures 100% RAM and PCIe compatibility on Intel-based ITX motherboards, and the cooler does not obstruct any nearby ports. Thanks to the highly optimized NF-A9x14 premium fan with PWM support for automatic speed control, the NH-L9x65 operates remarkably quietly. The package is completed with the professional SecuFirm2 multi-socket mounting system and Noctua's renowned NT-H1 thermal paste. Thus, the NH-L9x65 combines the familiar advantages of larger Noctua coolers in a compact, high-quality complete package for systems with limited space.

Key specifications

Socket
AM4AM5LGA 1150LGA 1151LGA 1155LGA 1156LGA 1200LGA 1700LGA 2011LGA 2011-v3
Height (with fan)
65 mm
Diameter
92 mm
power connector
4-pin PWM
Number of fans
1 x
Item number
5165322

General information

Manufacturer
Noctua
Category
CPU coolers
Manufacturer no.
NH-L9x65
Release date
15.6.2015
Sales rank in Category CPU coolers
41 of 926

Colour

Colour
Brown
Exact colour description
BeigeBrown

Cooler properties

CPU cooler design
Top Blower
Fan type
Standard
Socket
AM4AM5LGA 1150LGA 1151LGA 1155LGA 1156LGA 1200LGA 1700LGA 2011LGA 2011-v3
Supported fan sizes
92mm

Heat sink properties

Number of heatpipes
4
Diameter heat pipe
6 mm
Materials radiator core
Copper
Material cooling fins
Aluminium

Fan dimensions

Diameter
92 mm
Length
92 mm
Width
92 mm
Height
14 mm
Weight
73 g

Fan properties

Number of fans
1 x
Maximum mountable fan
1
Max. Speed
2500 RPM
Airflow
57.50 m³/h
Max. noise level
23.60 dB
LED colour
without LED

Connections

power connector
4-pin PWM

Power supply

Power consumption
2.52 W
Voltage
12 V

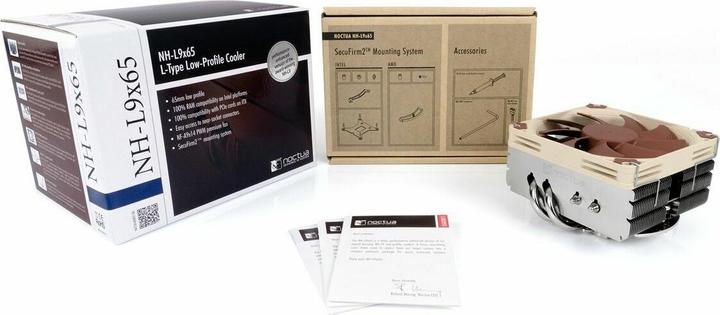

Scope of delivery

Scope of delivery
Installation materialManualThermal grease

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
95 mm
Length (with fan)
95 mm
Height (with fan)
65 mm
Weight
413 g

Package dimensions

Length
18.60 cm
Width
13.80 cm
Height
14.10 cm
Weight
892 g

Legal Notice

Product Safety

14-day cancellation right
30-day right of return
Return policy
24 Months Statutory warrantyGuarantee provisions
2 additional offers

Compare products

Goes with

Reviews & Ratings

Very good85/100
Toms Hardware Guide Logo
Toms Hardware GuideSingle testReleaseSeptember 2021
  • PositiveQuality build and design
  • PositiveSimple to install
  • Positive100% memory and graphics cards clearance on ITX platforms
  • NegativePrice
  • NegativeFan noise at 100% PWM

The NH-L9x65 provides all the impressive Noctua engineering you’d expect in an exceptionally tiny footprint. And while it’s expensive, unlike other compact downdraft cooler designs, it boasts 100% PCI-e card and memory compatibility on Intel platforms.
