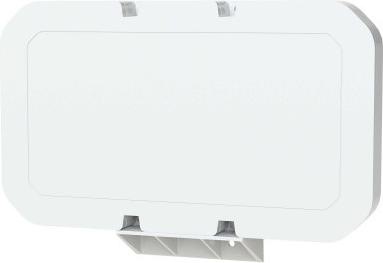

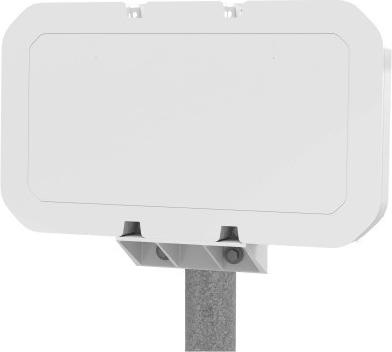

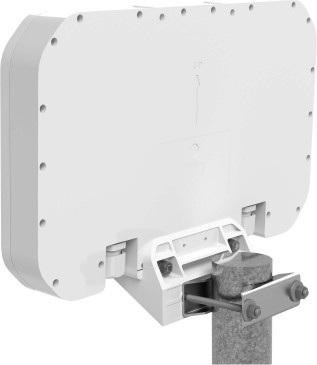

The DWMM4[G]-6-60 antenna provides a 4x4 MIMO solution for global 4G/5G networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing, the DWMM4[G] is suitable for a wide range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the provided screws and wall plugs, as well as mast mounting using the supplied clamps.

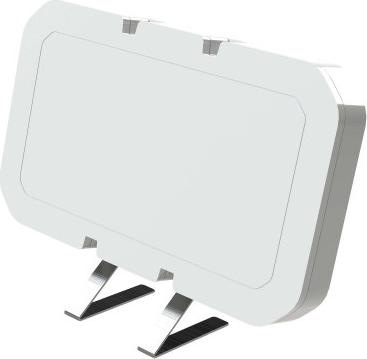

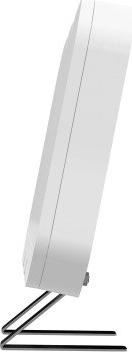

The antenna can also be mounted with screws directly to non-conductive panels or internal walls, or placed on a desk using the supplied mounting feet. The omnidirectional radiation pattern allows for easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.

The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS), which minimizes exposed connector joints and simplifies cable management for easy installation.
