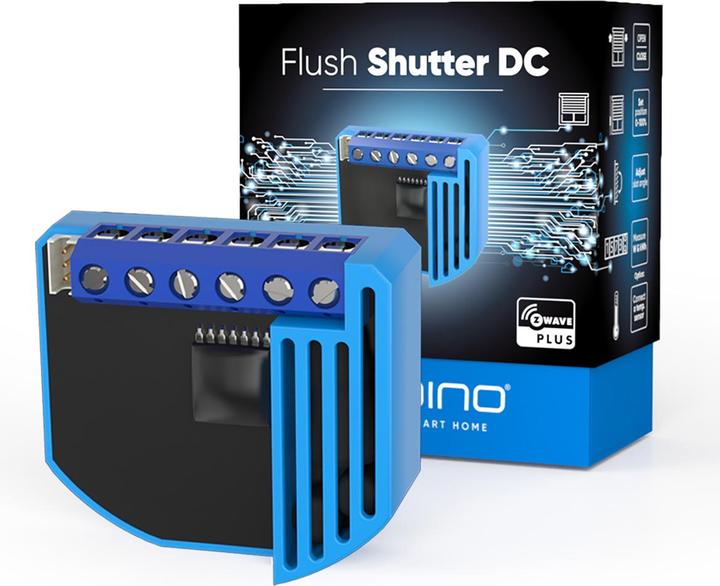

Qubino Flush Shutter DC Blinds Controller 12-24V

The Qubino Flush Shutter DC is a DC controller with inverted polarity for 12-24 V (direct current). This module enhances motors for blinds, roller shutters, garage doors, etc., with Z-Wave wireless technology. As a result, roller shutters and blinds can be controlled via Z-Wave commands as well as conventional wall switches. The Qubino Flush Shutter DC is designed to fit into a flush-mounted box behind a conventional wall switch.

Additionally, the Qubino Flush Shutter provides insights into the power consumption of your connected devices and ensures that the range and stability of your Z-Wave network are enhanced. An optional temperature sensor is available, which further expands its functionality.

Features:

• The flattest Z-Wave wireless module for flush-mounted installation
• Precise positioning of roller shutter, blind motors, etc.
• Energy measurement and repeater function
• Compatible with any switch series (push button, toggle, or rocker switch) and any design
• Additional connection for a digital temperature sensor (optional)
• Voltage: 12-24 VDC +/-10%
• Standby power consumption: 0.3 W
• Dimensions: 42 x 37 x 15 mm
• Wireless technology: Z-Wave Plus
• Product dimensions (WxHxL): 36 x 41 x 15 mm
• Packaging dimensions (WxHxL): 77 x 52 x 17 mm
• Product weight (net): 0.020 kg
• Product weight (gross): 0.030 kg
• Z-Wave Plus
• WEEE
• CE
• IP Class: IP20.
