Resistance: 47 Ω
Power: 1 kW
Series: R1000
Enclosure Type: Aluminum housing
Tolerance: ±5%
Technology: Wound
Connection Type: Wire connection
Operating Temperature Min.: -25 °C
Operating Temperature Max.: +250 °C
Temperature Coefficient Min.: -200 ppm/°C
Temperature Coefficient Max.: +200 ppm/°C
Overall Length: 400 mm

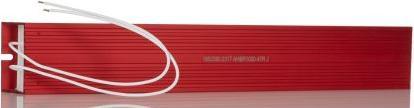

The RS Pro R1000 series resistor has a resistance of 47 Ohms and a rated power of 1 kW. It features an aluminum housing with a tolerance of ±5%. This metal-clad braking resistor is designed for direct attachment to heat sinks.

Features and Benefits:
• Heat sinks can be mounted for increased power dissipation
• High power density
• The operating temperature coefficient ranges from -200 ppm/°C to +200 ppm/°C
• The operating temperature ranges from -25 °C to +250 °C
• Wire connection terminals

Certifications:
• UL approved
• RoHS compliant.
