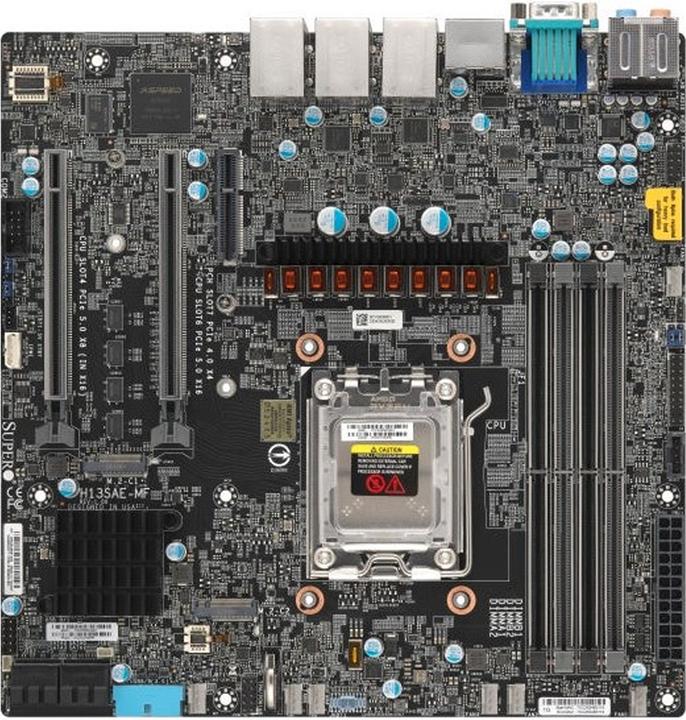

Supermicro H13SAE-MF

AM5, AMD B650, mATX
Currently out of stock

Product details

The Super Micro Computer H13SAE-MF motherboard is a powerful and versatile solution for modern computing applications. It supports AMD 7000 Series processors and offers a variety of connectivity options that ensure high flexibility and expandability. With a Micro ATX form factor, this motherboard is suitable for both compact and high-performance systems. The support for up to 192 GB of DDR5 RAM enables excellent performance in memory-intensive applications. Additionally, the H13SAE-MF provides a range of internal and external connectivity options, including M.2 PCIe and SATA III, to meet the needs of diverse users. The integrated error correction technology ensures added stability and reliability, while the Intel network ports provide a fast and reliable connection.

  • Supports up to 192 GB of DDR5 RAM for high performance
  • Two M.2 PCIe and four SATA III ports for flexible storage options
  • Integrated error correction technology for improved stability
  • Two RJ45 network ports with 1 Gbit/s speed
  • Compatible with AMD 7000 Series processors via AM5 socket.

Key specifications

Processor family
AMD 7000 Series
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCIe (2x)S-ATA III (4x)
Mainboard features
Error Correcting CodeTrusted Platform Module
Item number
39139121

General information

Manufacturer
Supermicro
Category
Motherboards
Manufacturer no.
MBD-H13SAE-MF-B
Release date
4.10.2023

Motherboard properties

Form factor
Micro ATX (mATX)
Socket
AM5
Chipset
AMD B650
Mainboard features
Error Correcting CodeTrusted Platform Module
BIOS type
Ami

Processor

Processor family
AMD 7000 Series

Memory

Memory form factor
DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
192 GB
Memory chip
DDR4 RAM
Supported memory speed
4800 MHz5200 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x)HDMI (1x)VGA (1x)

Network

Network connections
RJ45 (2x)
Ethernet controller brand
Intel
Ethernet controller
Intel I210
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC888S
Audio Connections
HDMI (1x)

Data storage

RAID configuration
0110

Internal interfaces

Internal connection options
M.2 PCIe (2x)S-ATA III (4x)
Expansion slot
PCI Express x4 (1x)
PCI express version (max.)
5

Further connections

USB ports
USB-AUSB-C
Exact USB ports
USB-C 3.2 Gen 2 (1x)USB-C 3.2 Gen 2x2 (1x)

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
243.80 mm
Width
243.84 mm
