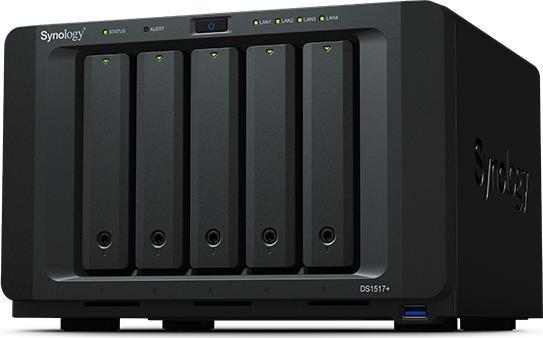

Synology Ds1517+

10Ratings
BrandMore from Synology
Currently out of stock

Product details

The Synology DiskStation DS1517+ features a quad-core processor with an AES-NI hardware encryption module, delivering excellent performance even with encryption. Enhance your storage further with the optional M.2 SSD adapter card for two SSD cache drives. The DS1517+ is the ideal storage solution for centralized data backup, protecting critical assets, and sharing files across various platforms. The Synology DS1517+ comes with a 3-year limited warranty from Synology.

The DS1517+ can be expanded to up to 15 drives with two Synology DX517 expansion units, allowing you to start small and easily scale your storage solution as your needs grow. The PCIe slot supports the optional PCIe M.2 SSD adapter card M2D17 for two M.2 SATA SSD slots, which can be used as SSD cache for significantly improved storage performance without occupying 3.5" drive bays. Additionally, the PCIe slot allows the DS1517+ to be expanded with 10GbE network interface cards.

Key specifications

Max. number of hard disks
5
Memory
8 GB
RAID configuration
0, 1, 10, 5, 6, JBOD
Network connections
RJ45 Gigabit Ethernet (4x)
Exact USB ports
USB-A 3.0 (4x)
Item number
6276463

General information

Manufacturer
Synology
Category
NAS
Manufacturer no.
DS1517+ (8GB)
Release date
10.4.2017
External links
Manufacturer's site (de)

Colour

Colour
Black
Exact colour description
Black

NAS properties

Model
Desktop
Max. number of hard disks
5
Hard drive form factor
2.5", 3.5"
RAID configuration
0, 1, 10, 5, 6, JBOD
Memory type
DDR3L-RAM
Memory
8 GB
Maximum possible memory
16 GB
Add-on packages
Synology: antivirus, audio station, station of cloud, cloud sync, directory server, DNS server, printer server, DynDNS, download station, iTunes server, mail server, media server, DLNA Certification, photo station, RADIUS server, surveillance station, time backup, UPnP, video station, VPN server
NAS features – model-specific
Max. number of groups 256, Max. number of user accounts 2048, Maximum concurrent CIFS/AFP/FTP connections 512, Maximum shared folders 512

Hard drive slots

Hard disk additional functions
Hot swapping

Processor

Processor type
Intel Atom C2538
Clock frequency
2.40 GHz
Number of processor cores
4 -Core

Network connections

Network connections
RJ45 Gigabit Ethernet (4x)

Wireless transmission

Connectivity
RJ45, USB

Additional connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (4x)
Internal connection options
PCI Express x8 (1x)
Data ports
eSATA (2x)

Video surveillance

Number of camera licenses included
2 x
Max. number of cameras
40 x

Mains supply properties

Number of fans
2 x
Fan diameter
80 mm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2x RJ45 cable, Power cord

Product dimensions

Length
24.30 cm
Width
25 cm
Height
16.60 cm
Weight
4.46 kg

Package dimensions

Length
32 cm
Width
35.50 cm
Height
30 cm
Weight
5.62 kg
