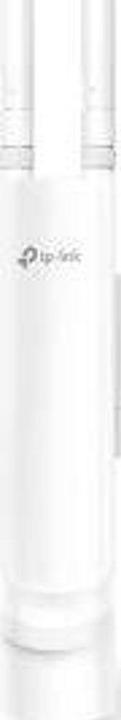

TP-Link EAP225-Outdoor - 802.11ac Outdoor Access Point

The EAP225-Outdoor access point supports simultaneous transmission speeds of up to 1200 Mbps across both bands. With the latest 802.11ac Wave 2 MU-MIMO technology, it can communicate with multiple clients at the same time, making it ideal for environments with very high traffic.

Advanced Hardware

The specially designed antenna layout, appearance, power supply, and installation options make the EAP225-Outdoor perfect for a variety of indoor and outdoor scenarios.

Free Centralized Cloud Management

The Omada Cloud Controller OC200 and the Omada Software Controller simplify the management and monitoring of the entire Omada network in real-time. The cloud service enables secure remote access, regardless of your location.

Package Includes

• Device
• Wall/antenna mount
• PoE power supply 24 V
• Power cable
• (2) plastic ties
• Screws
• Connectors and interfaces

Technical Specifications

• RF Connectors: (2) RSMA sockets
• LAN Speed: (1) 10/100/1000 Mbps
• Gigabit LAN: Yes
• Usage: Outdoor
• Buttons: Reset
• Operating Temperature: -30 to 70 °C
• Depth: 27 mm
• Width: 46 mm
• Height: 215 mm
• Max Power Consumption: 10.5 W
• Power over Ethernet: 802.3af, 24 V DC
• PoE Type: Input

Software

• Operating Mode: Access Point
• Default IP Address: Dynamically from DHCP

Wireless Features

• Radio Frequency: 2.4 + 5 GHz (Dual Band)
• WiFi Standards: 802.11ac, 802.11ac-wave2, 802.11n, 802.11a, 802.11b/g
• MU-MIMO: Yes
• Transmission Speed - Wi-Fi 2.4 GHz: 300 Mb/s
• Transmission Speed - Wi-Fi 5 GHz: 866 Mb/s
• Transmit Power 2.4 GHz: 20 dBm
• Transmit Power 5 GHz: 23 dBm
• Security: WEP, WPA, WPA2
• 2.4 GHz MIMO: 2x2
• 5 GHz MIMO: 2x2
• Antenna Type: Removable
• Removable Antennas: 2
• Roaming: Yes
• Antenna Gain: 5 dBi.
