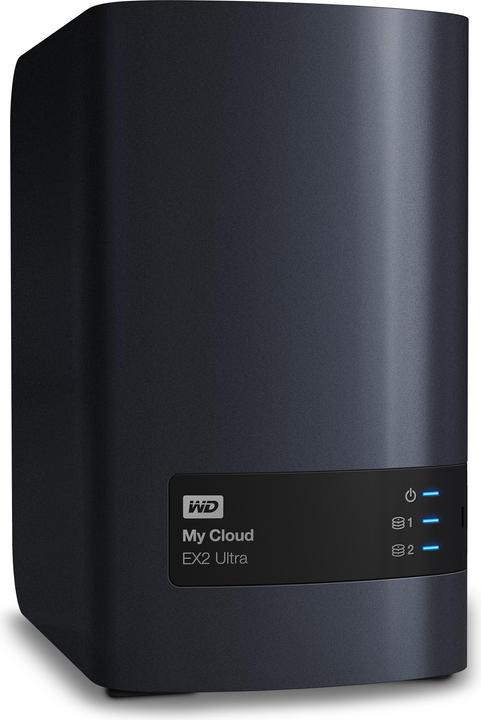

WD My Cloud EX2 Ultra

2 x 4 TB, WD Red
465Ratings
BrandMore from WD
Test reportsGood based on 5 tests
Currently out of stock
Show all

Product details

The special construction of the housing interior offers plenty of space for the installation of a wide variety of components, including unobtrusive cabling. The power supply unit and up to three 3.5-inch hard disks can be mounted decoupled behind a panel on the underside of the case. The mainboard and other components can also be wired discretely. In addition to the useful installation opening for CPU coolers, there are numerous openings for all required cables in the mainboard area. For water cooling, the tower offers the option of using a 280 mm radiator with an overall height of up to 5.7 cm, including the fan, in the front of the housing. Tower coolers can be installed up to a height of 17.5 cm. The maximum length of the usable graphic cards is 38 cm, and power supply units can be used up to a length of 23 cm. Pre-installed dust filters protect the installed hardware from contamination and can be easily removed and reinstalled for cleaning. Additionally, a dust filter is pre-installed on the upper side, which can also be easily removed thanks to magnetic fastening.

Key specifications

Max. number of hard disks
2
Memory
1 GB
NAS HDD assembly
NAS Hardbundle
Total storage capacity
8 TB
RAID configuration
0,
1,
JBOD
Network connections
RJ45 Gigabit Ethernet (1x)
Exact USB ports
USB-A 3.0 (2x)
Documents
Item number
5758193

General information

Manufacturer
Category
Manufacturer no.
WDBVBZ0080JCH-EESN
Release date
4.1.2016
External links

Colour

Colour
Black
Exact colour description
Black

NAS properties

NAS HDD assembly
NAS Hardbundle
Model
Desktop
Max. number of hard disks
2
Hard drive form factor
3.5"
RAID configuration
0,
1,
JBOD
Memory type
DDR3-RAM
Memory
1 GB
Maximum possible memory
1 GB
Add-on packages
Surveillance Station
NAS features – model-specific
AES 256-bit volume encryption,
Max. number of user accounts 512,
Maximum concurrent CIFS connections 10,
Number of groups max. 64

Hard drive slots

Data storage configuration
2 x 4 TB
Total storage capacity
8 TB
HDD/SSD model
WD Red
Hard disk additional functions
Hot swapping

Processor

Processor type
Marvell Armada 385
Clock frequency
1.30 GHz
Max. turbo clock rate
1.30 GHz
Number of processor cores
2 -Core

Network connections

Network connections
RJ45 Gigabit Ethernet (1x)

Wireless transmission

Connectivity
Ethernet

Additional connections

USB ports
USB-A
Exact USB ports
USB-A 3.0 (2x)

Video surveillance

Number of camera licenses included
2 x
Max. number of cameras
10 x

Mains supply properties

Power consumption
25 W
Power consumption (standby)
15 W
Redundant power supply unit
Yes

Scope of delivery

Scope of delivery
1x RJ-45 cable,
External power supply

Product dimensions

Length
15.70 cm
Width
9.90 cm
Height
16.50 cm
Weight
2.30 kg

Package dimensions

Length
30 cm
Width
24 cm
Height
18 cm
Weight
2.74 kg
