The Weller WXDP 120 desoldering iron is a fast and powerful high-performance desoldering iron. It is particularly suitable for reworking and repairing SMD or conventionally assembled PCBs.
The heating time is 35 seconds. Its high-quality sensor and heat transfer technology ensures precise temperature control behaviour. Thanks to the sensor, the desoldering iron only switches on when there is movement. When not in use, the desoldering iron switches to stand-by mode.

Features:

• compatible with supply units WXD 2 and WXR 3
• Desoldering iron set with eccentric attachment
• Short heat-up time and set-back function
• soldering tip can be changed with one hand
• programmable, intelligent WX desoldering iron
• Usable tip family XDS, XDSL

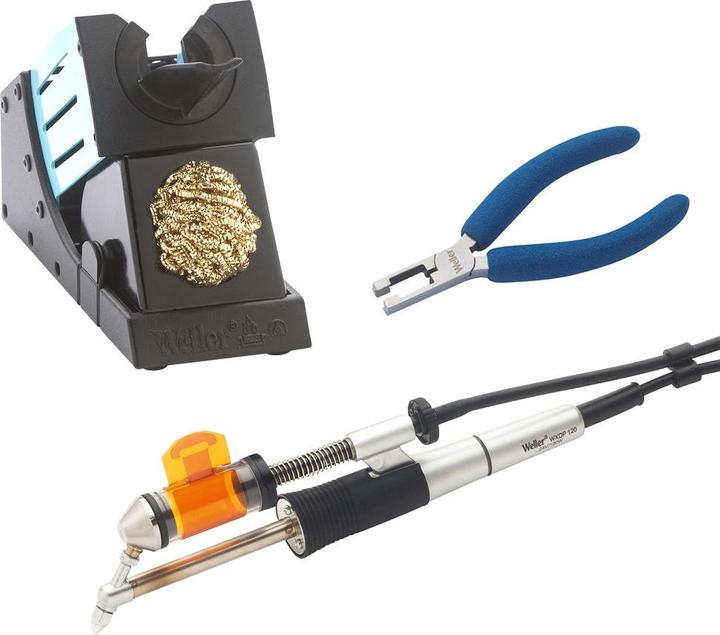

Scope of delivery:
1 piece WXDP 120 desoldering iron
1 suction nozzle XDS 1, inside ß 1.4 mm, outside ß 2.5 mm
1 piece safety rest WDH 70 (only for 801221)
1 suction nozzle XDS 5, inside ß 1,8 mm, outside ß 3,3 mm (only for 801221)
1 suction nozzle XDS 3, inside ß 1.0 mm, outside ß 2.3 mm (only for 801221)
1 piece Operating instructions

• ----------------------------

Selection criteria:
Version: with tray WDH70

• ----------------------------

Technical data:
Power: 120 W
Heating time: approx. 35 s
Temperature range: 100-450 °C
Weight: 1.3 kg

Item number: COO51320299
Shop number: 801221.
