Tehalit Floor Connection Column DAP80 650 ELN

Manufacturer: Tehalit

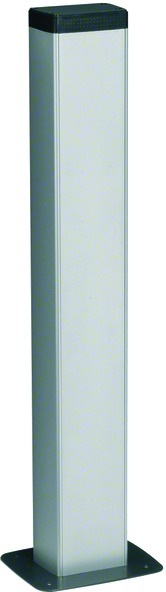

Description: Floor connection column front-facing
Type: DAP80 650 ELN
Column shape: rectangular
Design: single-sided
Pre-wired: no
Adjustable: no
Height compensation: 0 mm

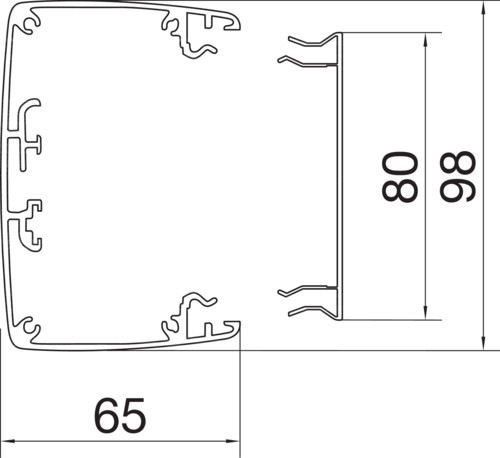

Column height: 650 mm
Column depth: 65 mm
Column width: 98 mm
Number of usable tops: 1
Top width: 80 mm
Mounting type: screw
Portable: no
Suitable for ceiling mounting: no
Suitable for floor mounting: yes
Cable entry: bottom
Continuous profile: yes
Material of the installation column: Aluminum
Material quality of installation column: other
Halogen-free material of installation column: yes
Surface protection of column: anodized
Color of column: Aluminum
Material of the top: Aluminum
Material quality of top: other
Halogen-free material of top: yes
Surface of top: untreated
Color of top: Aluminum
Number of partition walls: 1
Usable cross-section: 5400 mm²

Additional details:
Front-facing floor connection column made of aluminum for DAP, length 0.65 m, anodized. Stand columns for mounting on the floor using a stable base plate. Cable entry through the floor or through floor channels that can be seamlessly connected to the floor covering. Pre-equipped mounting modules for room columns and stand columns. The mounting modules can be retrofitted, relocated, or rotated at any time without damaging the base profile. Optional circuit labeling through mounting modules with labeling signs.
