MDT technologies rain sensor SCN-RS1R.01

Manufacturer: MDT technologies
Designation: Rain sensor
Type: SCN-RS1R.01
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Design: Precipitation sensor
Mounting type: Surface-mounted
With bus coupling: Yes
With DCF77: No
Acoustic signal: No
With heating: Yes
Color: Other
Weather station: Yes
Protection class (IP): IP55

More details:

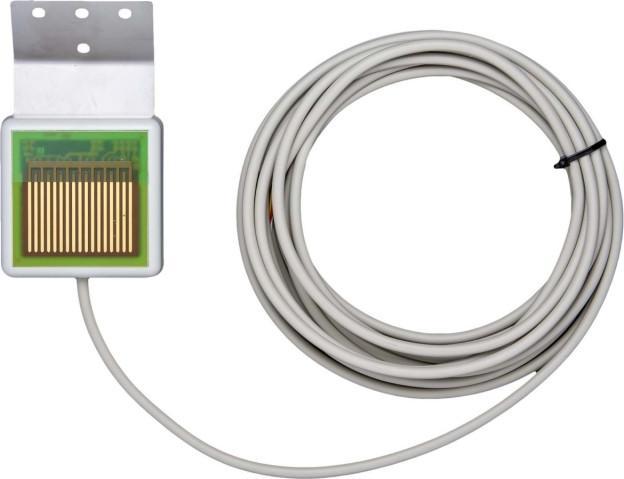

Rain sensor for outdoor mounting in a surface mount housing, with a mounting bracket. Features automatic heating to dry the sensor surface. Heater operation via unchoked output STV-640/STC series or external 24VDC supply voltage. Current consumption of the heater is less than 100mA. Includes a 5m bus connection cable and a stainless mounting bracket. Dimensions (W x H x D): 67mm x 67mm x 29mm. Integrated bus coupler.
EAN: 4251916111571.
