Stiebel Eltron Thermo Floor TBS TC 200/1 SetPlus

Manufacturer: Stiebel Eltron
Designation: Thermo Floor 1 sqm, 200 W/sqm
Type: TBS TC 200/1 SetPlus
Design: Heating cable
With carrier mat: yes
Fixation of heating conductor: sewn
Self-adhesive: yes
Connection voltage: 230 V
Connection power: 200 W
Power: 200 W/m²
Heating conductor load: 10 W/m
Resistance: 260 Ohm
Number of cold leads: 1
Length of cold leads: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 1 m²
Length: 3300 mm
Width: 300 mm
Thickness: 3 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

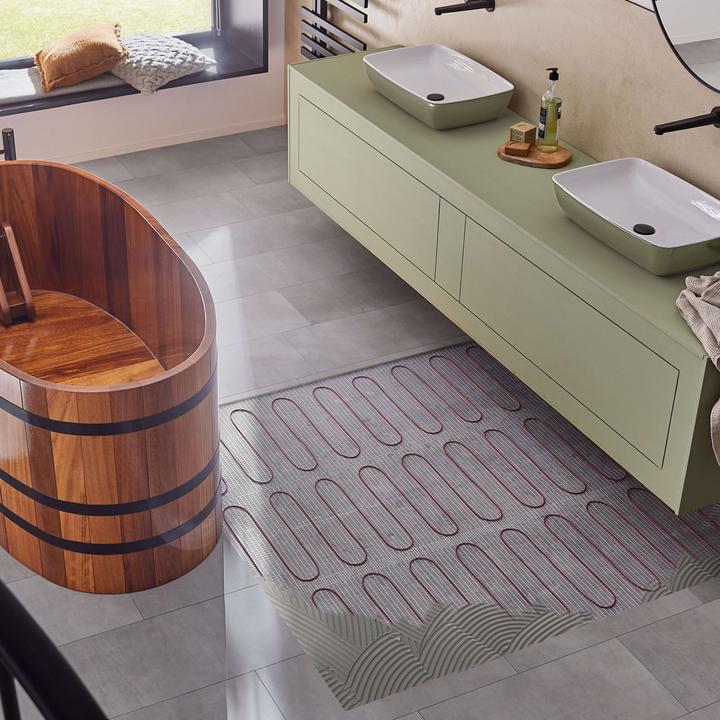

The set consists of a thin-bed heating mat specifically designed for thicker ceramic floor coverings, along with the corresponding controller and installation materials. The thin-bed heating mat is used for floor temperature control in new builds and renovations. It is installed directly under the floor covering and quickly provides a pleasantly warm floor surface, regardless of the existing heating system. The heating mat is suitable as an additional or supplementary heating solution.

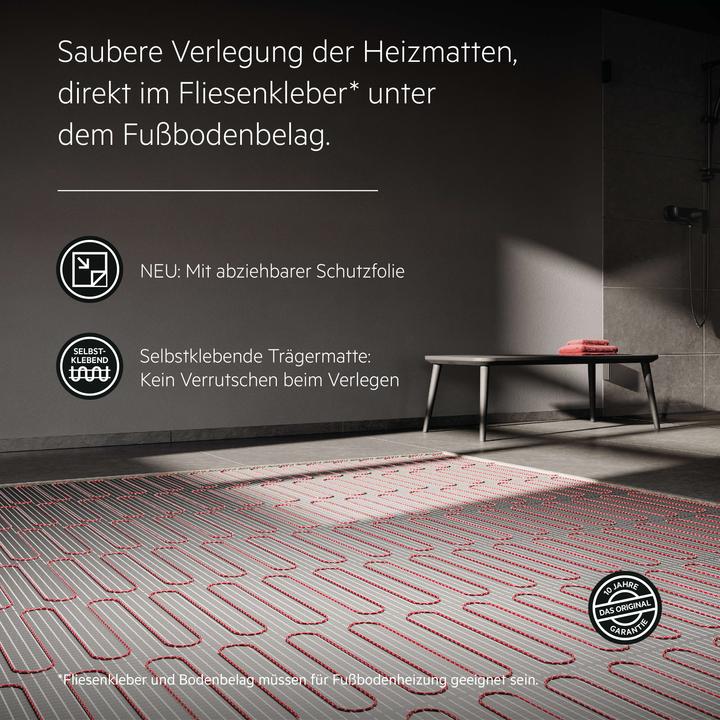

Comfort features: Due to its low installation height, the heating mat is installed directly in the tile adhesive under ceramic coverings. The narrower installation width is particularly suitable for small, angular floor plans. In combination with a water-based underfloor heating system, it allows for the comfort of a warm floor even outside the heating season. The heating conductor is completely sewn onto the self-adhesive carrier mat, making it easy and quick to lay on the floor.

Installation: The mat can be installed in the bathroom in conjunction with a residual current device. By cutting the carrier fabric, it can be easily adapted to individual space conditions.
