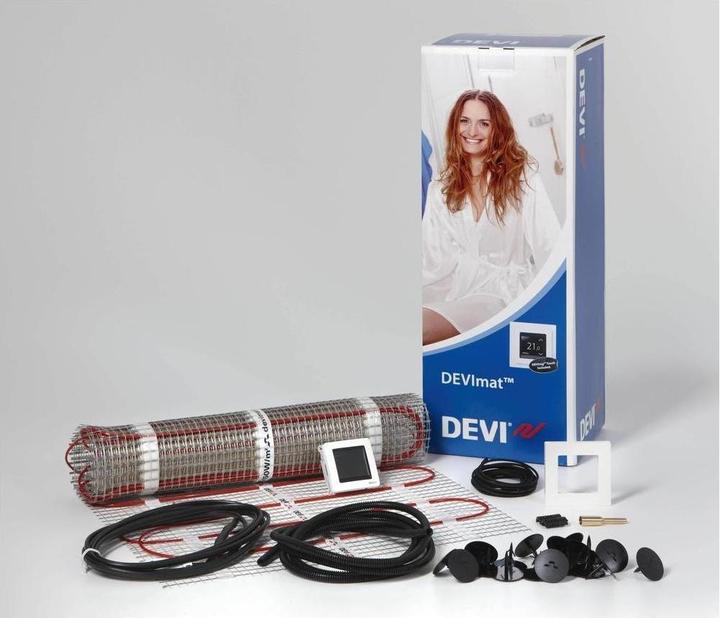

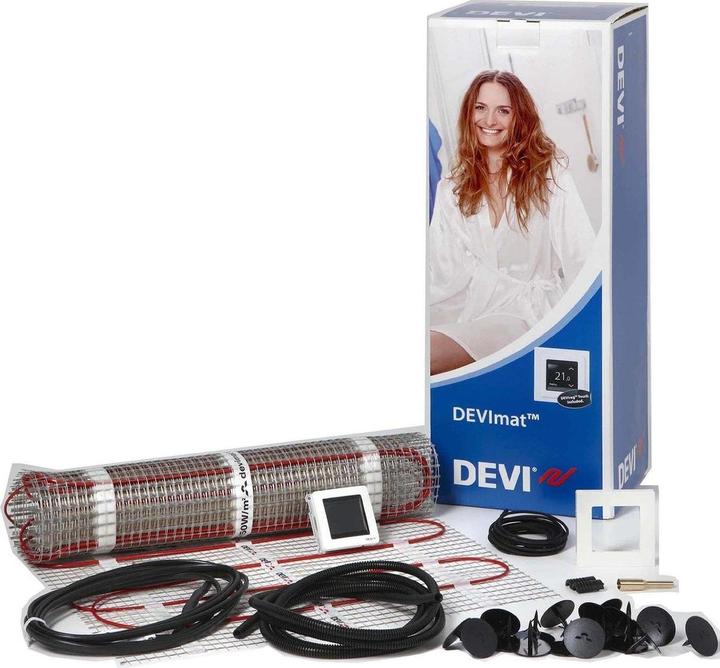

Devi Thin-bed set 1-225 W 140F0817 Manufacturer :Devi Designation :Thin-bed set 1-225 W DTIF 1,5 sqm,professi Type :140F0817 With support mat :yes Fixation of the heating conductor :Glued Self-adhesive :yes Connected load :0..225 W Output :150 W/m² Heatsealing band load :11 W/m Number of PTC thermistors :1 Length of PTC thermistors :4000 mm Suitable for damp rooms :yes Suitable as open space heating :no Suitable as roof surface heating :no Area :1.5 m² Length :3000 mm Width :500 mm Thickness :3,5 mm With controller :yes With room thermostat :yes With floor temperature sensor :yes Devi thin-bed set 1-225 W 140F0817: more details Thin-bed set with touch thermostat, flexible sensor protection tube DN10 with red cap, plastic nails, installation instructions. The self-adhesive thin-bed heating mat with a connection cable is ready to install and has been specially developed for installation in levelling compound or flexible adhesive directly underneath the floor covering. Due to the low installation height of only 3.2 mm, it is ideal for the renovation and modernisation of bathrooms, showers, kitchens, etc. This floor temperature control system is particularly suitable for retrofitting in rooms with many nooks and crannies and/or large rooms, as there is no need to lead back the second connection. The heating cable with additional protective braiding for the use of the FI protection circuit, is mounted on a plastic net. The length of the connection cables is 4.0 m. PTC resistor: 1 x 4m, 1.0mm², voltage: 230 V, nominal limit temperature: 120°C, specific heat output: 150 W/m², linear load: 11W, insulation: PVDF / FEP, resistance tolerance: +10% / -5%, minimum laying temperature:5°C, Smallest bending radius: 6 x dA, Calculation width 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval : EN 60335-2-96, Area 1.5 m², 0.5 x 3.0 m , EAN: 5703466216514.
