Eaton Cam switch 6 pole
Price in EUR including VAT
Delivered between Sat, 3.5. and Tue, 6.5.
More than 10 items in stock at supplier
More than 10 items in stock at supplier
free shipping
Product details
Number of poles: 6
Current max: 20 A
Mounting type: Closed
Contact configuration: NO
Power: 6.5 kW
Protection class: IP65
Padlock option: Yes
Operating voltage: 415 V AC
Auxiliary switch available: Yes
Breaking capacity: 320 A
Length: 137 mm
Width: 80 mm
Depth: 95 mm
Connection type: Screw mounting

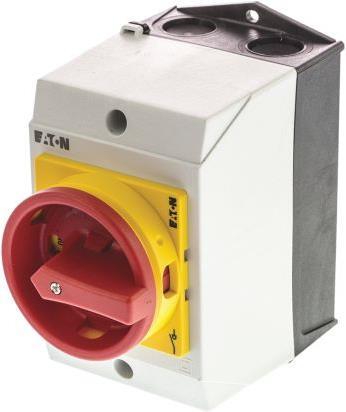

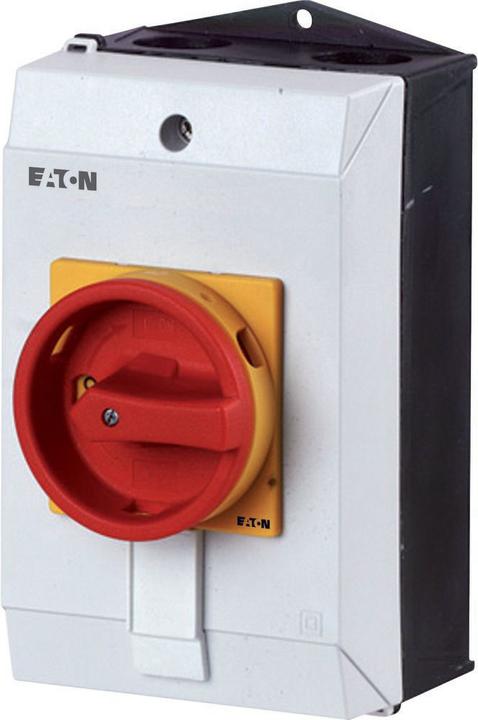

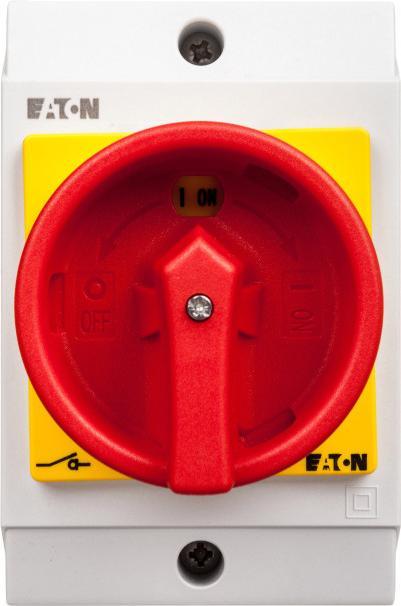

This insulated, enclosed termintable disconnect switch features a thermoplastic enclosure with high impact resistance to IP65. It includes a built-in earth distribution block and is lockable in the OFF position, with up to three interlocks. Breaking capacity refers to AC23A at 380-440 V.
Nominal current | 20 A |
Nominal voltage | 690 V |
Protection type (IP code) | IP65 |
Item number | 9725846 |
Manufacturer | Eaton |
Category | Mobile power distributors |
Manufacturer no. | T0-4-15682/I1/SVB |
Release date | 24.9.2018 |
Colour | Red, Yellow |
Exact colour description | Red, Yellow |
Nominal current | 20 A |
Nominal voltage | 690 V |
mounting type | Closed |
Number of poles | 6 x |
Contact Configuration | 1 NO contact: 1 NC contact or 1 NO contact: 1 |
Actuator Type | Emergency stop rotary switch |
Power | 6.50 kW |
input voltage | 690 V |
number of poles | 6 |
Protection type (IP code) | IP65 |
Country of origin | Germany |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Width | 84 mm |
Length | 95 mm |
Height | 137 mm |
Product Safety |
Specifications may include unverified machine translations.
