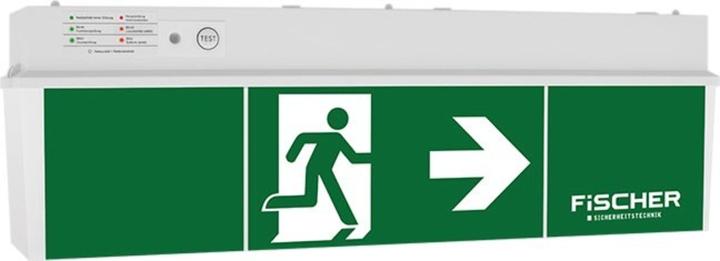

Fischer LED Emergency Sign Light ULU383AT2.V4

Manufacturer: Fischer
Designation: LED Emergency Sign Light 3/8h, 18m, IP54
Type: ULU383AT2.V4
Mounting Type: Wall mount/Ceiling mount
Function: Emergency exit marking
Suitable for marking type: Acrylic glass panel
With pictogram: yes
Power supply: decentralized (single battery)
Battery type: Lithium-ion
Light source: non-replaceable LED
With light source: yes
Housing material: Plastic
Housing color: white
Cover material: Opal plastic
Protection class (IP): IP54
Max. system power: 6.3 W
Detection range: 16 m
Nominal operating duration: 8 h

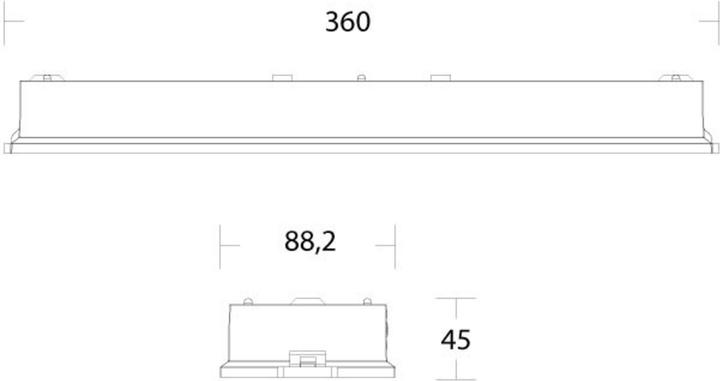

Width: 92 mm
Height/Depth: 125 mm
Length: 360 mm

The emergency light is equipped with a monitoring module for automatic function and operating duration tests to ensure operation according to DIN V VDE 0108-100-1 and DIN VDE 0711-400. The status display (ready for operation, charging mode, battery operation, battery fault, LED/electronics fault) is indicated by a two-color status LED. Critical errors can be reported via an optional acoustic signal. The integrated accumulator features electronic charge monitoring and deep discharge protection.
