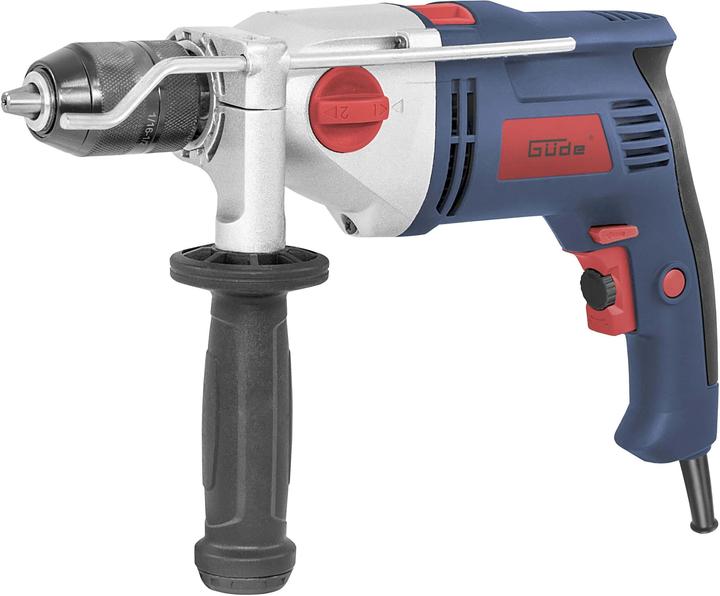

Güde Impact drill SBM 1050 E

Electrical connection
Currently out of stock

Product details

  • Softgrip support for safe working
  • Robust metal gear housing

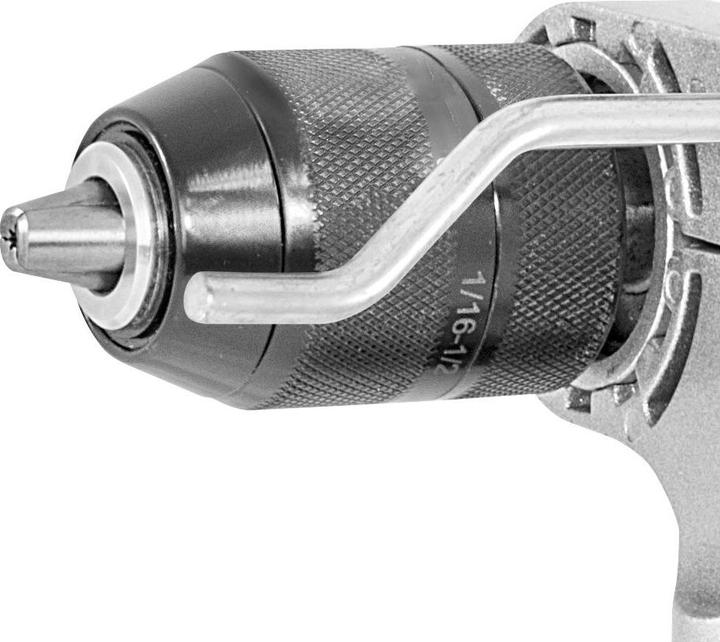

  • Tool-free metal quick-action drill chuck
  • Variable, removable metal auxiliary handle (suitable for right- and left-handers)
  • Stable adjustable metal drill depth stop

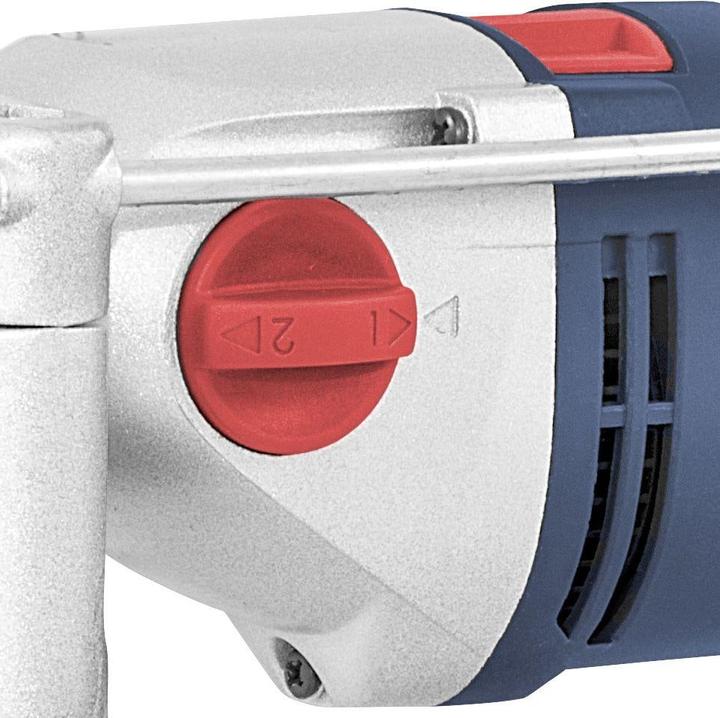

  • 2-speed gearbox

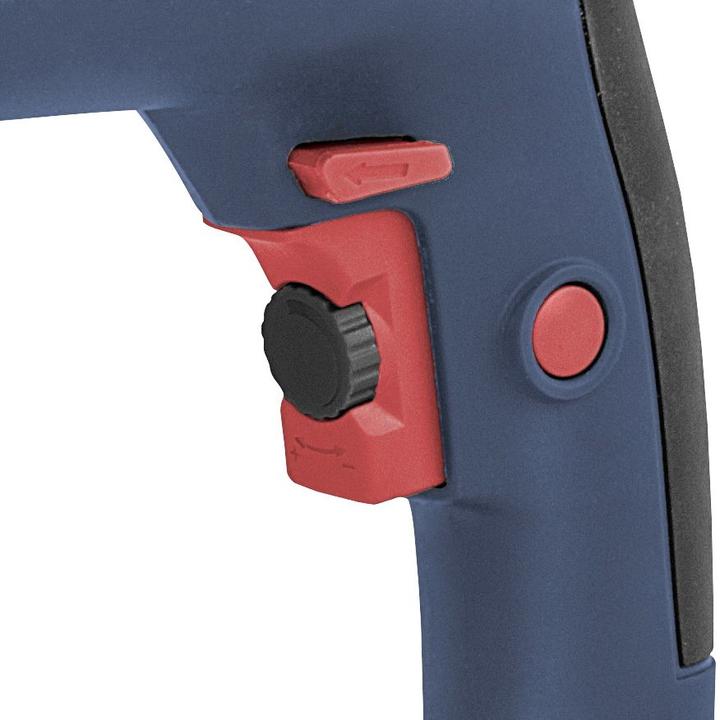

  • Throttle switch with speed preselection
  • Right/left rotation
  • Impact stop for drilling in wood and metal
  • Lockable switch for continuous operation
  • 3 m power cable H05VV-F
  • 2 years warranty!

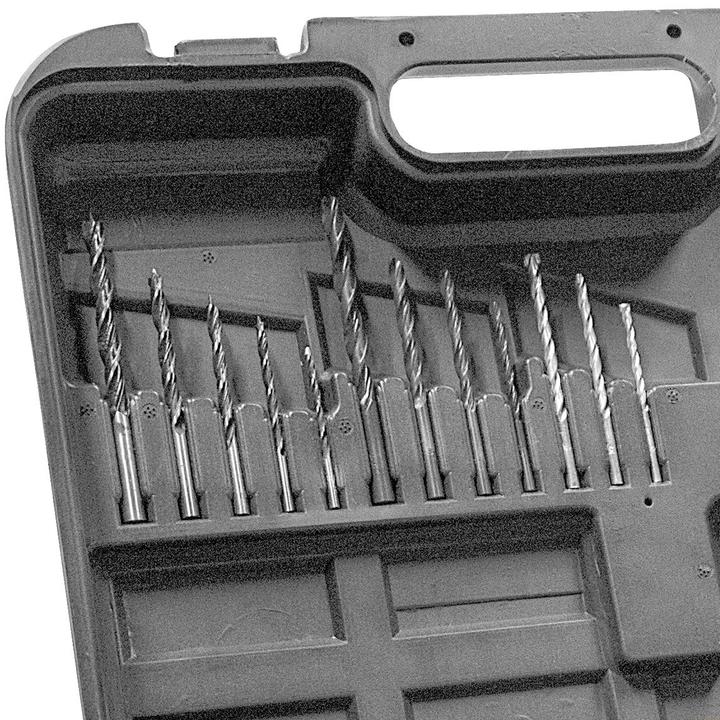

Scope of delivery:

  • 5 x wood drill Ø (3/4/5/6/8)
  • 3 x HM stone drill Ø (4/5/6)
  • 2 x HSS metal drill Ø (4/5/6/8)
  • Metal drill depth stop and metal auxiliary handle
  • High quality carrying case with metal buckles

Optional accessories:

  • Wood drill bit set 8 pcs.
  • HM stone drill bit set 8 pcs.
  • HSS metal drill bit set 8 pcs.

Technical data:
Mains voltage: 230 V
Frequency: 50 Hz
Motor power (P1): 1050 W
Max. idle speed: 0-1000 / 0-2800 1/min
Min. drill chuck clamping width: 2 mm
Max. drill chuck clamping width: 13 mm
Metal drill chuck: Yes
Drill diameter for wood: 25 mm
Drill diameter for steel: 13 mm
Drilling diameter for stone: 13 mm
Left-right run: Yes
Continuous running lock: Yes
Speed preselection: Yes
Speed electronics: Yes
Velcro cable strap: Yes
Soft grip: Yes
Auxiliary handle: Yes
Continuous operation lock: Yes
Vibration: 5.5 m/s²
Noise value specification LWA: 104 dB
Cable length: 3 m
Cable type: H05VV-F
Weight without cable: 2.3 kg
Length: 355 mm
Width: 85 mm
Height: 220 mm
Net weight: 3.7 kg
Gross weight: 4.2 kg

Scope of delivery:
1 x impact drill SBM 1050 E.

Key specifications

Drilling machine + percussion drilling machine Type
Impact drill
Weight
4.20 kg
Item number
13333874

General information

Manufacturer
Güde
Category
Drills + Cordless screwdriver
Manufacturer no.
58113
Release date
13.6.2020

Colour

Colour
Blue
Exact colour description
Blue

Drilling machine + percussion drill features

Drilling machine + percussion drilling machine Type
Impact drill
Additional functions
Connection for dust extractionSpeed preselection

Drilling performance

Max. drilling diameter in wood
25 mm
Max. drilling diameter in steel
13 mm

Energy supply

Power supply
Electrical connection

Mains operation Features

Mains voltage
230 V
Cable length
3 m

Power

Power
1050 W
Number of gears
2 x
Idle speed 1st gear
1000 rpm
Idle speed 2nd gear
2800 rpm
Max. Idle speed
1000 rpm
Sound power level (LWA)
104 dB

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
5 x wood drill bits Ø (3/4/5/6/8) 3 x carbide masonry drill bits Ø (4/5/6) 2 x HSS metal drill bits Ø (4/5/6/8) Metal drilling depth stop and additional metal handle
Items per sales unit
1 x

Product dimensions

Length
35.50 cm
Width
8.50 cm
Height
22 cm
Weight
4.20 kg
