Product details

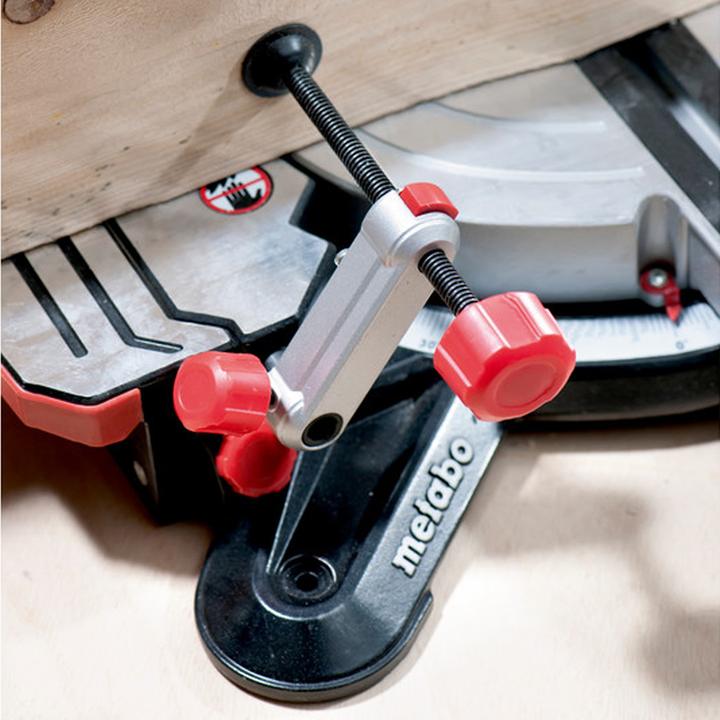

Pull function for wide workpieces. Compact and lightweight, also suitable for one-handed transport. Robust construction made of die-cast aluminum for the toughest requirements. Easy transport due to ergonomic carrying handles and saw head protection. Effective chip extraction via integrated chip funnel. Fast and precise adjustment of common angles via snap-in points. Laser for exact indication of the cutting line (mains operated, no batteries required). Steplessly extendable table extensions, removable to support long panels, moldings, etc. Bright LED working light to illuminate the interface (mains operated, no batteries required). High, laterally adjustable stops for safe sawing. Material clamp for secure fixing of the workpiece from above or from the front. Depth stop for easy production of grooves. Saw head can be tilted to the left, with additional angle range for undercuts. All scales and operating elements can be viewed and intuitively operated from working position. Simple saw blade change due to spindle locking; no disassembly of the pendulum protective hood required.
Nominal diameter | 216 mm |
Max. depth of cut at 90° | 30.50 mm |
Mains voltage | 230 V |
Power | 1200 W |
Item number | 8499320 |
Manufacturer | Metabo |
Category | Chop saw + mitre saw |
Manufacturer no. | 619260000 |
Release date | 21.4.2018 |
Colour | Green |
Exact colour description | Black, Green, Red, Silver |
Suitable for | Metal |
Max. tilt adjustment | 47° |
Mounting hole | 30 mm |
Nominal diameter | 216 mm |
Number of teeth | 40 |
Max. depth of cut at 90° | 30.50 mm |
Max. Depth of cut at 45 | 36 mm |
Power supply | Electrical connection |
Battery type | Lithium |
Battery equipment | No batteries supplied |
Mains voltage | 230 V |
Cable length | 2 m |
Plug type | CEE 7/4 |
Power | 1200 W |
Max. Idle speed | 5000 rpm |
Max. noise level | 44 dB |
Sound power level (LWA) | 104 dB |
Sound pressure level (LpA) | 97 dB |
Material group | Plastic |
Material | Metal / plastic |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 760 mm |
Width | 760 mm |
Height | 475 mm |
Weight | 13.50 kg |
Length | 82 cm |
Width | 48 cm |
Height | 35 cm |
Weight | 17.10 kg |
Product Safety |
Specifications may include unverified machine translations.
