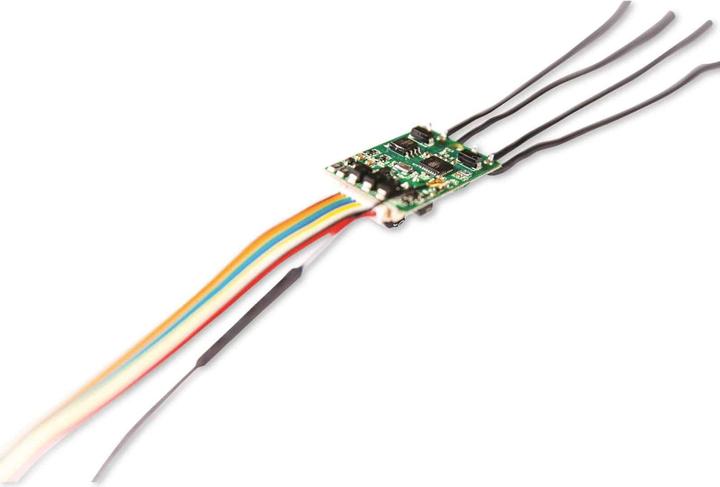

Make your old devices smart with Shelly UNI! The smallest universal module with two available digital inputs and potential-free outputs offers you endless functionalities.

Wi-Fi: No hub is needed - connect Shelly UNI directly to your Wi-Fi.

Flexible power supply: Shelly UNI can be powered with a wide range of 12V-36V DC and 12V-24V AC.

Universal ADC: The ADC range can measure any voltage from 0 to 30 VDC. Two ranges of 0-12V and 12-30V provide exceptionally high accuracy.

Temperature and humidity sensors: The Shelly UNI supports up to 3 DS18B20 temperature sensors or 1 humidity sensor. This allows for triggering outputs as well as local and cloud scenes.

Digital inputs: Includes 2 digital inputs that support different voltages and can operate separately from 2.2-36V DC and 12-24V AC.

Universal protocols: The Shelly UNI supports REST, MQTT, CoAP, Alexa, Google Home, and Samsung Smart Things, making it highly compatible with all major home automation platforms.

Durability: The transparent insulating cover protects the chip from high humidity, dust, and the risk of short circuits.

Power supply: 12V - 24V AC, 12V - 36V DC
Inputs: 2 separate digital inputs from 2.2-36V DC and 12-24V AC
Outputs: 2 potential-free outputs up to 36VAC and 24VDC, max 100 mA each
Power measurement: 1 ADC - two ranges of 0-12V and 12-30V
Channels: 2
Operating temperature: -40°C to 40°C
Power consumption: under 1W
Radio signal power: 1mW
Frequency: 2400 - 2484 MHz
Range (depending on local construction): up to 50 m outdoors and up to 30 m indoors
Product dimensions (WxHxL): 20 x 13 x 33 mm
Packaging dimensions (WxHxL): 32 x 63 x 22 mm
Net weight: 0.007 kg
Gross weight: 0.016 kg
WEEE
CE
IP class: IP10.
