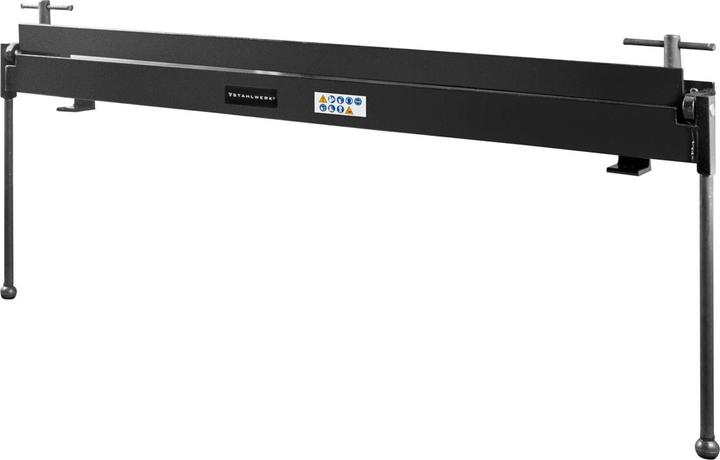

Steelworks Bending Machine AB-1000 ST - Sheet metal bending machine for precise bending of sheets up to 1.2 mm, bending angle from 0 to 135 degrees, maximum working area of 1,000 mm.

Features

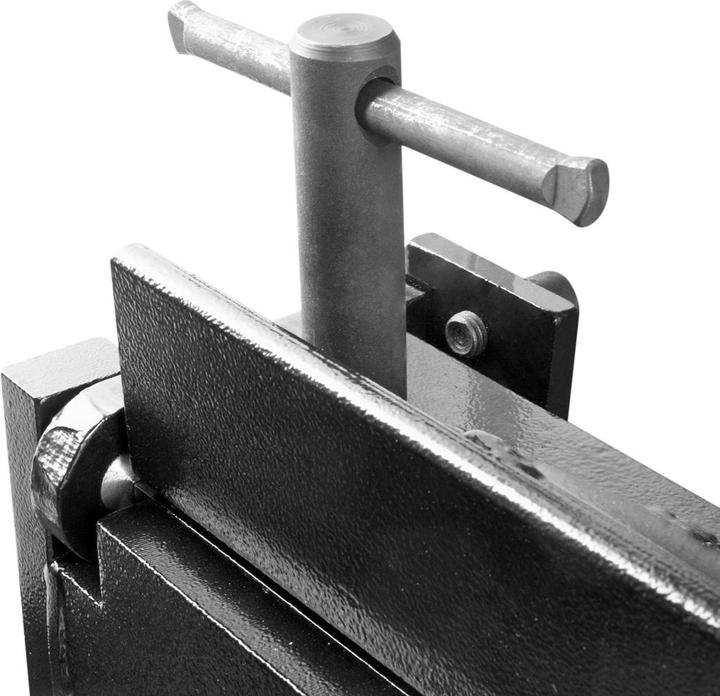

Bending machine for precise bending of sheets with a material thickness of up to 1.2 mm. Bending angle from 0 to 135 degrees with a maximum working area of 1,000 mm. Special solid holding plate for comfortable fixation of the swing bending device in a vice with a jaw size of 150 mm or more. To secure the bending machine to a workbench or work table, two holding brackets with mounting holes are welded to the machine body. Solid construction made of solid steel sheet / solid material. Stable bending levers with ball grips ensure easy and safe operation with optimal handling. Manufactured in industrial quality for professional use in industry, crafts, and DIY.

Technical Data

Maximum working area: 1,000 mm
Maximum bending thickness: 1.2 mm
Bending angle: 0 to 135 degrees
Dimensions: 1,200 x 180 x 240 mm
Weight: 30 kg

Delivery Includes

1 x Bending Machine AB-1000 ST including bending arm and counter plate or lower arm

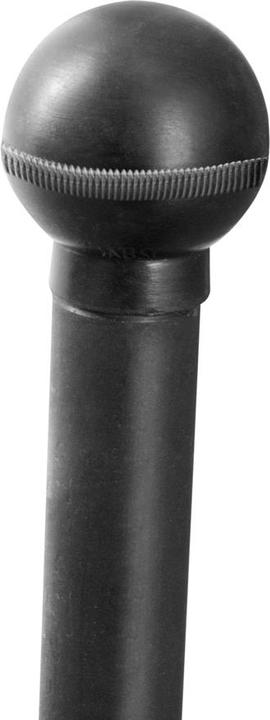

2 x Operating levers with ball grip
2 x Holding bolts / clamping screws
2 x Adjustment screws
1 x 4 mm Allen key
1 x 6 mm Allen key
2 x Return springs
1 x Mounting kit including Allen screws and washers.
