PCE Instruments Digital microscope

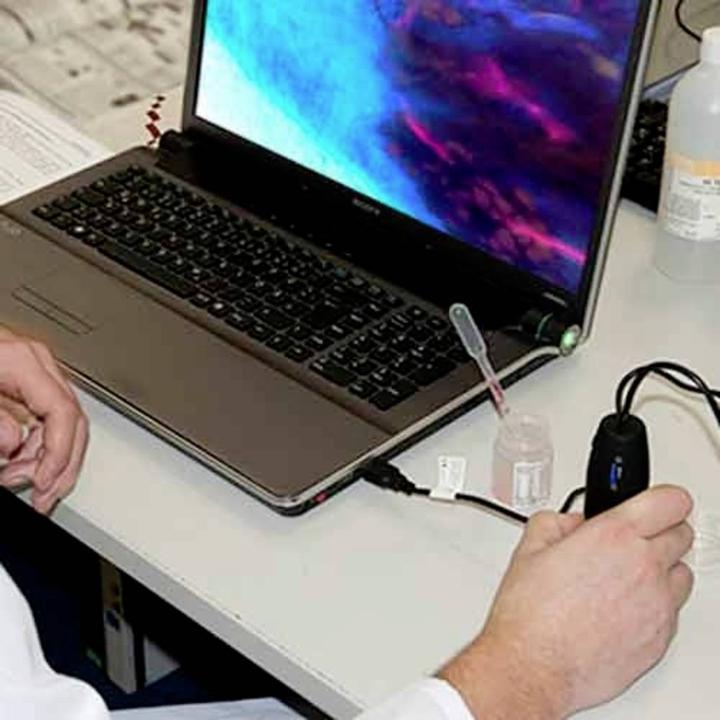

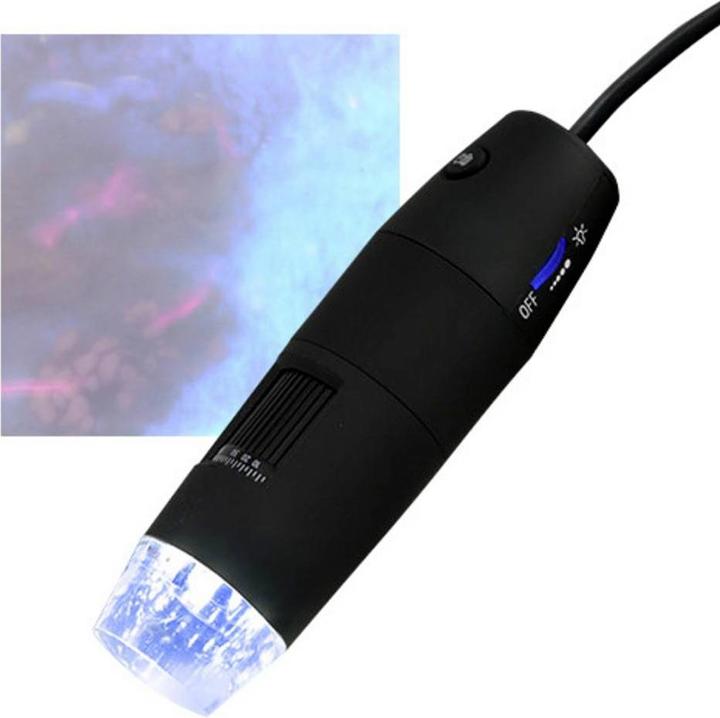

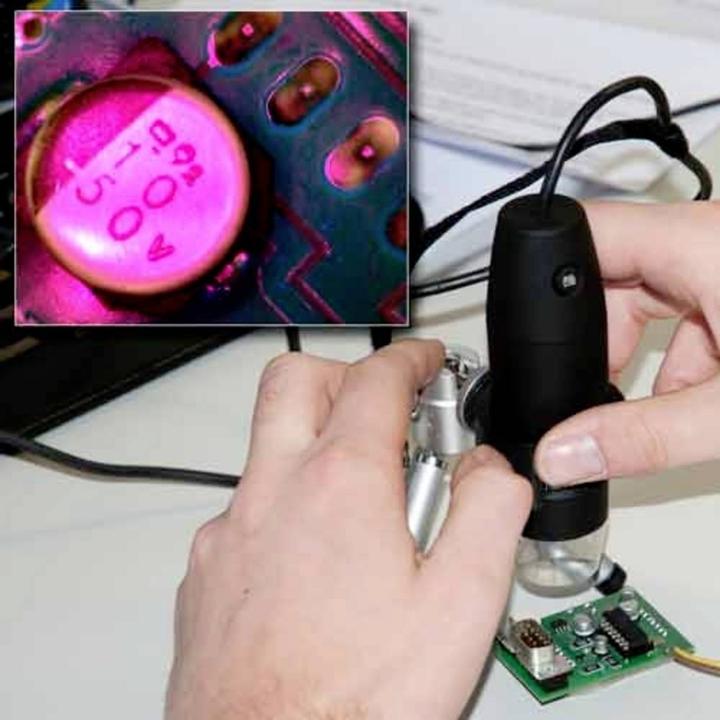

objects with a magnification of up to 200x. The object illumination on the UV microscope consists of 8 UV LEDs arranged as a ring around the optics. The UV illumination on the UV microscope significantly improves the resolution in contrast to the USB microscope with conventional illumination. The wavelength used by the PCE-MM 200UV UV microscope is 365 nm, which is significantly shorter than visible light (380 nm -780 nm). The short-wave illumination on the UV microscope results in the better resolution described above and a significant improvement in contrast. Due to the high proportion of non-visible light, the object illumination on the UV microscope appears very dark. However, this non-visible light is captured and processed by the camera built into the UV microscope. The UV microscope PCE-MM 200UV, which is equipped with a 2 m USB cable, can be used very flexibly in the field of school, education, science and profession for the examination of plants, insects or other small animals. Another field of application for the UV microscope is surface inspection, philately and numismatics. The image output of the UV microscope is done via the screen of the notebook or the PC. This form of image output of the UV microscope is ideal for people wearing glasses or for presentation in a group. Introduction of the UV microscope By using UV microscopes, many tasks can be carried out more effectively - and with very high accuracy. Therefore, a UV microscope can be used wherever strict controls and precise observations and checks are required, as well as in areas where mechanical work and assembly are carried out.
