VivaFPV F4 FC with OSD PDB

Currently out of stock

Product details

The ultimate multifunction FC! Compatible with 4in1 and external ESC layouts. The F4 processor keeps the FC future-ready. Includes ICM20602 gyro and barometric pressure sensors. Shorten your build time without soldering when using the VivaFPV 4in1 ESC. Plug-and-play compatible with TBS Unify Pro 7-pin video transmitters (cable included) and pin-compatible with TBS Crossfire Nano and TBS Crossfire Nano Diversity receivers.

Technical Specifications:

  • STM32 F4 processor
  • ICM20602 gyro, BMP280 barometer
  • 5V 3A, 3.3V 0.5A BEC
  • 2-6S battery input
  • Betaflight OSD
  • 16 MB BlackBox storage

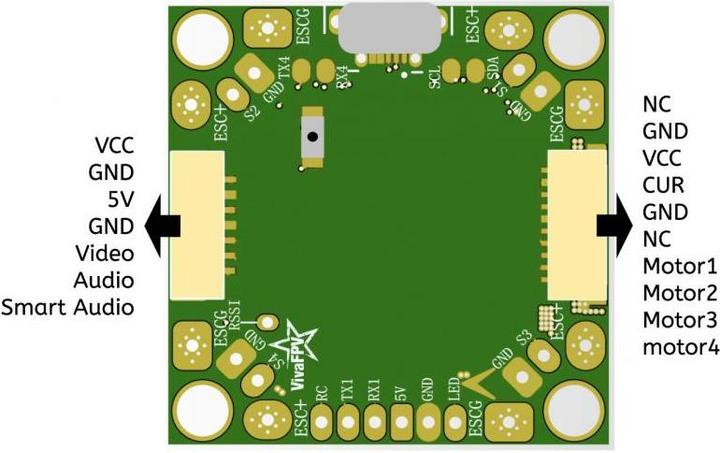

  • Plug & Play connection for VivaFPV 4in1 ESC with telemetry and current sensor
  • Plug & Play connection for TBS Unify Pro HV (7-pin)
  • Pin-compatible with TBS Crossfire Nano and TBS Crossfire Nano Diversity Rx
  • 5X UART (UART1 = RX, UART2 = VTX)

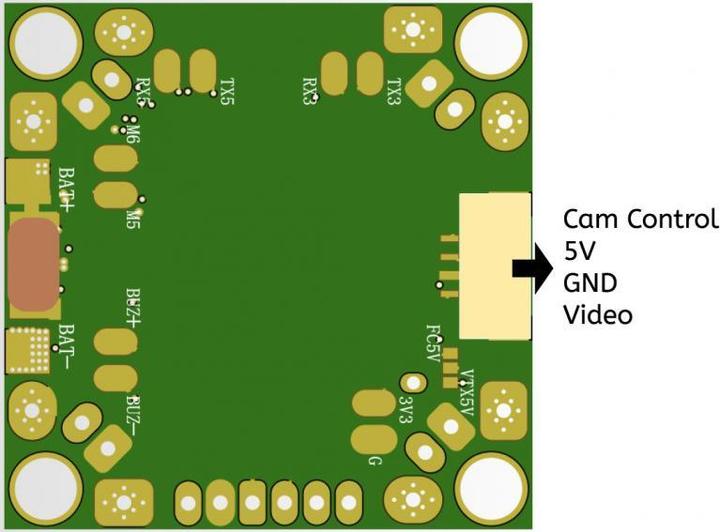

  • Current sensor & camera control included
  • 30.5x30.5 mounting holes
  • USB Micro port for firmware upgrades

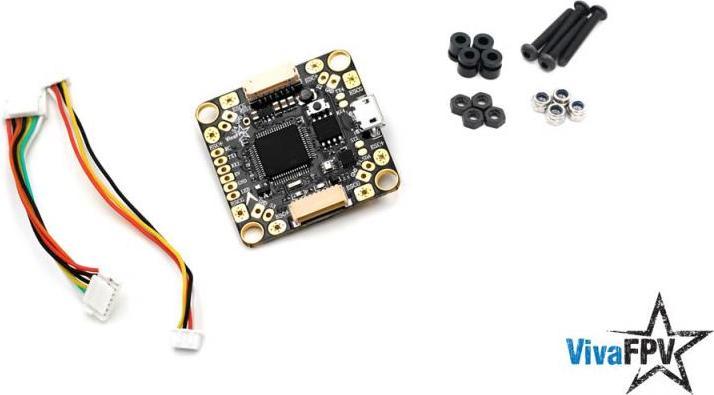

Included in the package:

  • VivaFPV F4 FC
  • Plug & Play connection for Unify Pro HV (7-pin)
  • Plug & Play camera connection
  • 4x steel screws M3x22
  • 4x metal locknuts M3
  • 4x plastic nuts M3.
