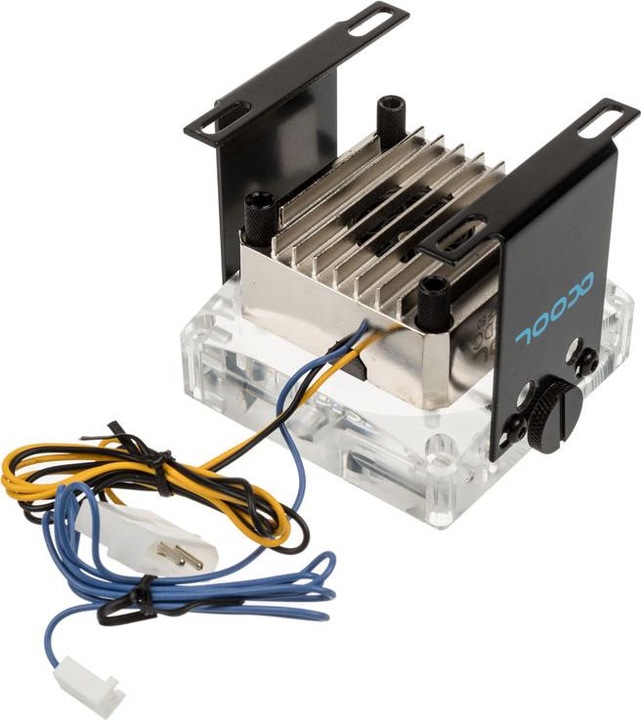

Alphacool Laing DDC310 - Complete Edition Ice Sheet - silver/Plexi

Price in EUR including VAT, free shipping
Delivered between 10.1.2025 and 16.1.2025
Only 1 item in stock at supplier

Product details

The widespread Laing DDC pumps are growing. Freshly packed, this pump can also begin its life with a lot of self-confidence. Some details have been changed.
On the one hand some performance was saved to solve a widespread problem: The volume. Hardly any other pump can match this when it comes to noise emission. For the most common water cooling system consisting of cooling for CPU and GPU this pump should be the first choice.

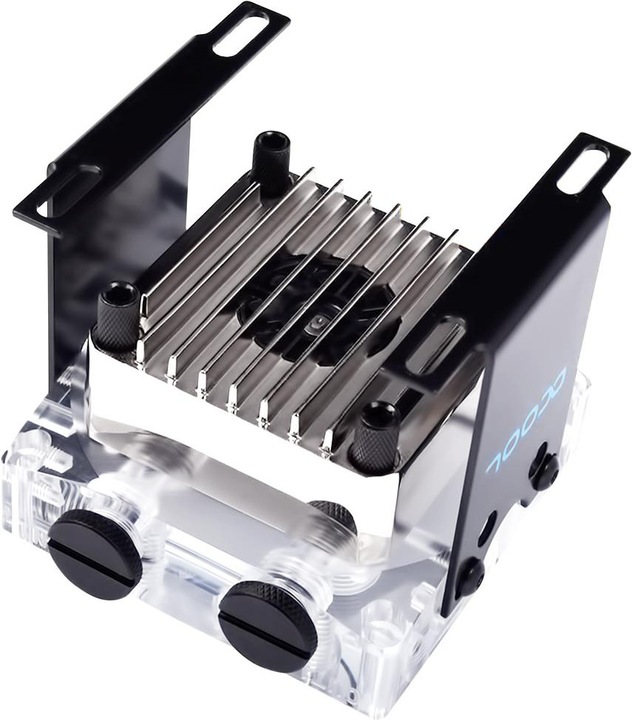

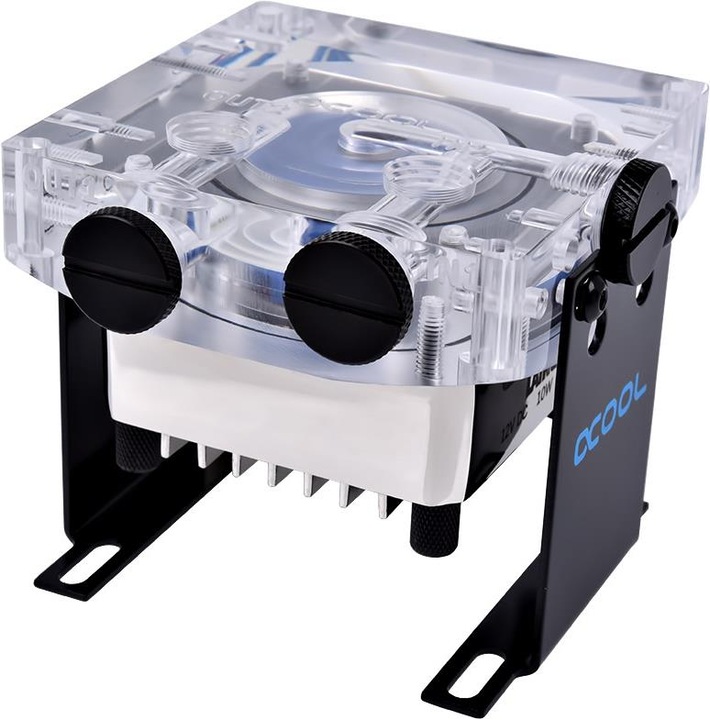

This pump does not come in the familiar plastic housing as before. New is the perfectly tuned brass housing which adorns the exterior. This new housing promises a longer service life for the pump. Air flows through the cooling fins, which is then passed directly to the pump board via an internal heat conducting pad. A further feature is the decoupling option provided. By means of the special M4 screws, the supplied decoupling can be screwed into the head of the screw, which in turn is connected to the housing. The novelty of this set is that the V.2 of the Alphacool ice covers are used, which offer the possibility of three G1/4" connections for the inlet and two G1/4" connections for the outlet.
Inlet possibilities: Front, Side, Top
Outlet possibilities: Front, Top

In addition, three G1/4" screw plugs are included to close the unused In/Out connections. Another feature is the pre-assembled holder as we know it from the new ice cream cups. Thus this pump set can also be mounted directly on the bottom of the housing. Now as a combination with the proven Alphacool ice cover LainG DDC Plexi or Acetal attachment.

Key specifications

Max. flow
200 l/h
Max. delivery head
2.44 m

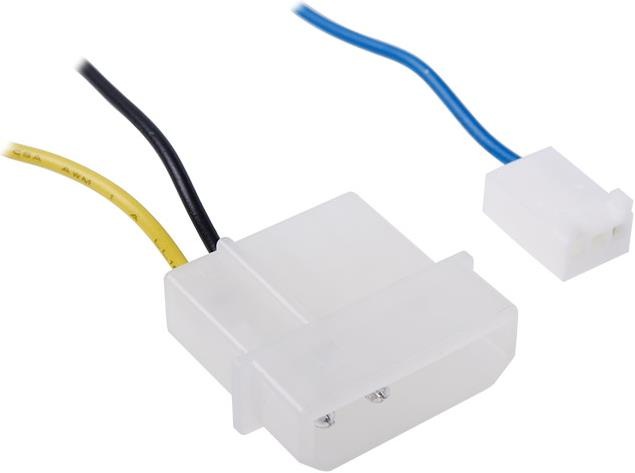

Pump Power connection
4PIN Molex
water inlet
G1/4" female thread
water outlet
G1/4" female thread
Item number
5805391

General information

Manufacturer
Category
Manufacturer no.
13197
Release date
21.6.2016

Water cooling pump properties

pump type
Laing DDC
Max. delivery head
2.44 m
Max. flow
200 l/h
Voltage
12 V
Pump Power connection
4PIN Molex
water outlet
G1/4" female thread
water inlet
G1/4" female thread
Max. system temperature
60 °C
Exact colour description
Black
Transparent
Power consumption
10 W
Specific material description
Aluminium
Brass
Hard coal
Approved liquids
Water, water/glycol mixture

Origin

Country of origin
China

Scope of delivery

Scope of delivery
Decoupling set
Installation material
Pedestal

Product dimensions

Length
61 mm
Width
60 mm
Height
21 mm
Weight
631 g

Package dimensions

Length
11.10 cm
Width
10.60 cm
Height
8.60 cm
Weight
626 g
