Product details
AudioFuse X8 IN enhances the flexibility of your studio with 8 premium line-level inputs. Link to any ADAT-compatible audio interface and accommodate more instruments and outboard gear.
8 line-level
analogue inputs
AudioFuse X8 IN adds 8 premium line inputs to existing audio interfaces, allowing you to accommodate more instruments and outboard gear.
With the latest generation AD converters up to 96 kHz sampling rate, enhance your studio flexibility and ensure your recordings maintain the highest fidelity.
Capture multiple instruments
Connect multiple synthesizers, drum machines, and other electronic instruments, allowing you to capture high quality recordings.
Expand microphone capture
Connect additional microphone preamps for recording vocals, drums, or multi-instrument ensembles, with each sound source having its own dedicated channel
External audio processing
Route audio from your DAW to external processors like compressors, equalisers, and effects units, and then back into your DAW - enabling a hybrid mixing, setup.
Be ready to record
Having everything connected ensures you can quickly switch between different devices and be ready to record without any setup delays.
More inputs more control
Enhance your creative flow and have all your gear connected at once. AudioFuse X8 IN is the simplest way to extend the reach of your premium interface.
8x analogue inputs to ADAT
Word clock input on BNC
24-bit latest generation AD converters up to 96 kHz sampling rate
Robust half 1-U rack chassis
Assembly kit included to rack two AudioFuse X8 units
119 dB
Dynamic Range
AudioFuse X8 features lush dynamics that ensure every nuance of your recording or performance is captured.
-112 dB
Harmonic distortion
Deliver the full essence of your audio output without introducing unwanted distortion, maintaining the true character of your sound.
analogue inputs
AudioFuse X8 IN adds 8 premium line inputs to existing audio interfaces, allowing you to accommodate more instruments and outboard gear.
With the latest generation AD converters up to 96 kHz sampling rate, enhance your studio flexibility and ensure your recordings maintain the highest fidelity.
Capture multiple instruments
Connect multiple synthesizers, drum machines, and other electronic instruments, allowing you to capture high quality recordings.
Expand microphone capture
Connect additional microphone preamps for recording vocals, drums, or multi-instrument ensembles, with each sound source having its own dedicated channel
External audio processing
Route audio from your DAW to external processors like compressors, equalisers, and effects units, and then back into your DAW - enabling a hybrid mixing, setup.
Be ready to record
Having everything connected ensures you can quickly switch between different devices and be ready to record without any setup delays.
More inputs more control
Enhance your creative flow and have all your gear connected at once. AudioFuse X8 IN is the simplest way to extend the reach of your premium interface.
8x analogue inputs to ADAT
Word clock input on BNC
24-bit latest generation AD converters up to 96 kHz sampling rate
Robust half 1-U rack chassis
Assembly kit included to rack two AudioFuse X8 units
119 dB
Dynamic Range
AudioFuse X8 features lush dynamics that ensure every nuance of your recording or performance is captured.
-112 dB
Harmonic distortion
Deliver the full essence of your audio output without introducing unwanted distortion, maintaining the true character of your sound.
| Number of inputs | 8 |
| Item number | 47138810 |
| Manufacturer | |
| Category | |
| Release date | 15.7.2024 |
| Colour group | Black |
| Exact colour description | Black |
| Number of inputs | 8 |
| Sample rate | 96 kHz |
| Audio resolution | 24 bits |

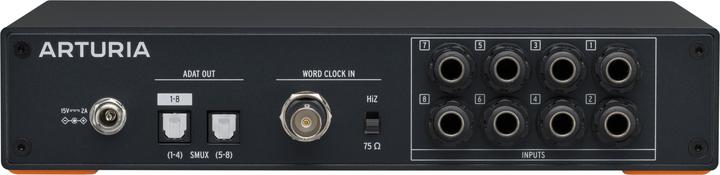

| Audio inputs | 6.3 mm jack (8x), ADAT (1x) |
| Country of origin | China |
| Scope of delivery | Flier, Mounting kit for two AudioFuse X8 units in a 19-inch rack, Power supply unit |
| Width | 221 mm |
| Depth | 216 mm |
| Height | 48 mm |
| Weight | 1410 g |
| Weight | 1 kg |
Specifications may include unverified machine translations.
