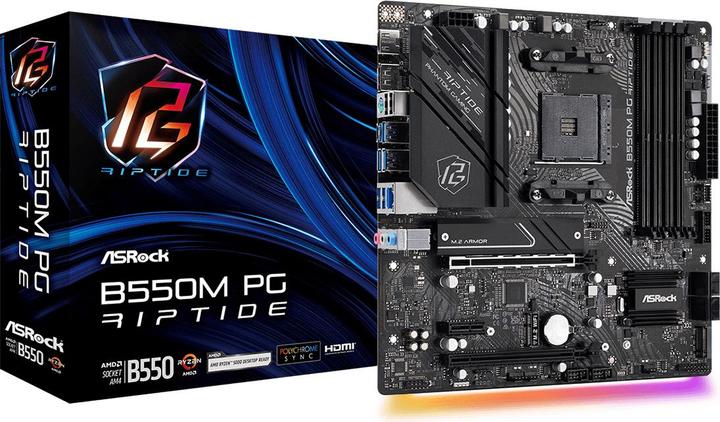

AsRock B550M PG Riptide

AM4, AMD B550, mATX
Price in EUR including VAT, free shipping
1Ratings
Delivered between Tue, 31.12. and Sat, 4.1.
2 items ordered

Product details

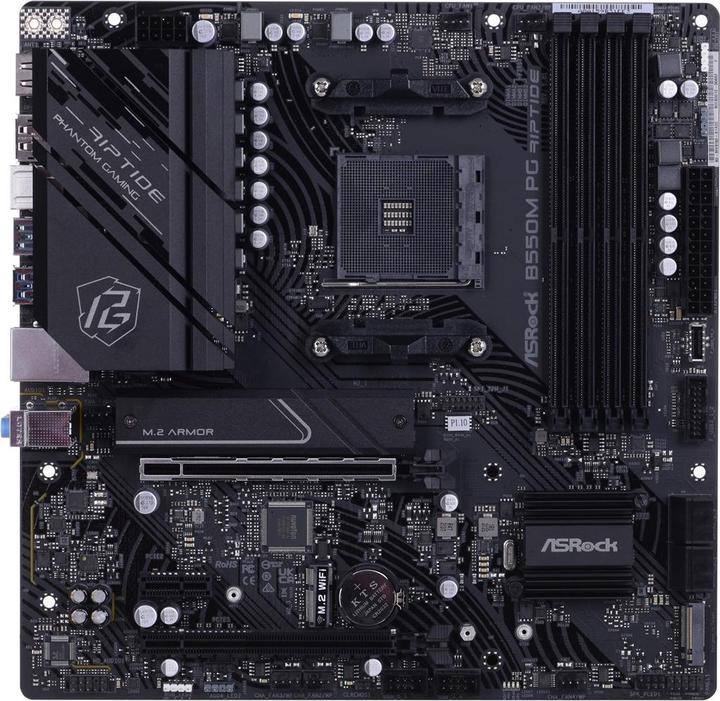

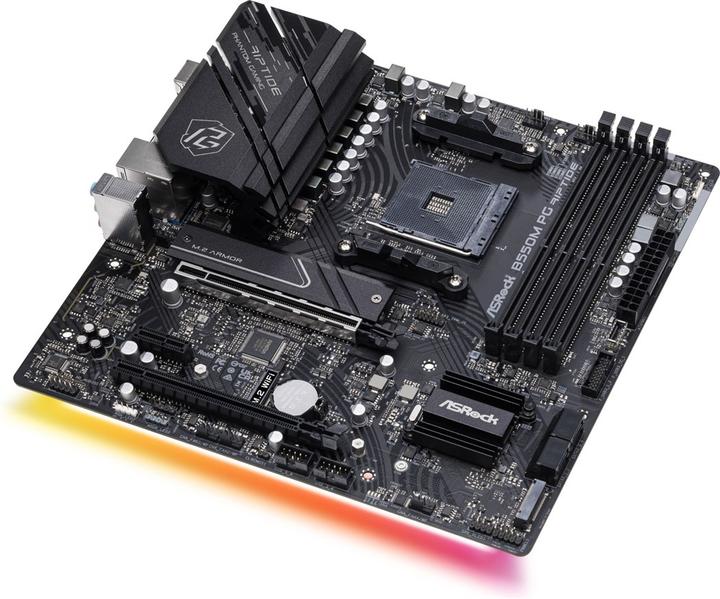

The ASRock B550M PG Riptide is a motherboard in Micro-ATX form factor for the AM4 socket. It is designed for use with AMD third and fourth generation Ryzen processors and supports a maximum processor power
of 105W.

The board has two DDR4 DIMM slots for a maximum RAM capacity of 32 GB and supports speeds of up to 3200 MHz. It also offers a PCIe 4.0 x16 slot for installing a dedicated graphics card and a PCIe 4.0 x1 slot for additional expansion cards.

In terms of connectivity, the ASRock B550M PG Riptide has six SATA III ports for connecting hard drives and SSDs, as well as an M.2 slot for an NVMe SSD. In addition, the board offers a variety of USB ports, including four USB 3.2 Gen1 ports, two USB 2.0 ports and one USB 3.2 Gen2x2 port for fast data transfer rates.

Key specifications

Processor family
AMD 3000 Series,
AMD 5000 Series
Memory type
DDR4-RAM
Internal connection options
S-ATA III (4x)
Peripheral connections
DisplayPort connections (1x),
Ethernet LAN connections (RJ-45) (1x),
USB 2.0 Type-A (2x)
Item number
19412532

General information

Manufacturer
AsRock
Category
Motherboards
Manufacturer no.
90-MXBI90-A0UAYZ
Release date
4.2.2022
Sales rank in Category Motherboards
139 of 792

Motherboard properties

Form factor
Micro ATX (mATX)
Processor socket
AM4
Chipset
AMD B550
Mainboard features
Front panel audio connector
Operating system compatibility
Windows,
Windows 10

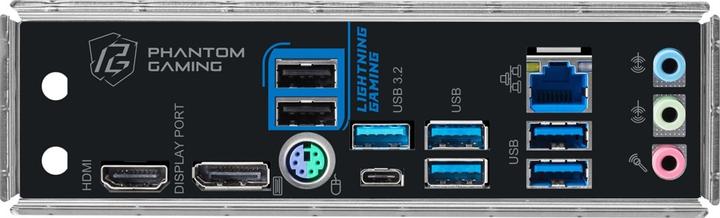

Peripheral connections
DisplayPort connections (1x),
Ethernet LAN connections (RJ-45) (1x),
USB 2.0 Type-A (2x)
BIOS type
UEFI AMI

Processor

Processor family
AMD 3000 Series,
AMD 5000 Series

Memory

Memory form factor
DIMM
Number of pins
240 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Max. RAM OC
4733 MHz
Supported memory speed
2133 MHz,
2400 MHz,
2933 MHz,
3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x),
HDMI (2x)
Video connection version
Display port 1.4,
HDMI 2.1
Multi-GPU technology
AMD CrossfireX

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Dragon RTL8125BG
Max. port speed
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
HDMI (1x)

Internal interfaces

Internal connection options
S-ATA III (4x)
Expansion slot
PCI Express x1 (3x),
PCI Express x16 (1x),
PCI Express x16 (2x)

Power supply

Power connectors
20+8 pin ATX

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
244 mm
Height
244 mm
Weight
850 g

Package dimensions

Length
27.40 cm
Width
26.30 cm
Height
6.20 cm
Weight
1.23 kg
