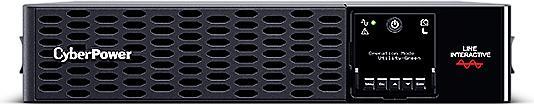

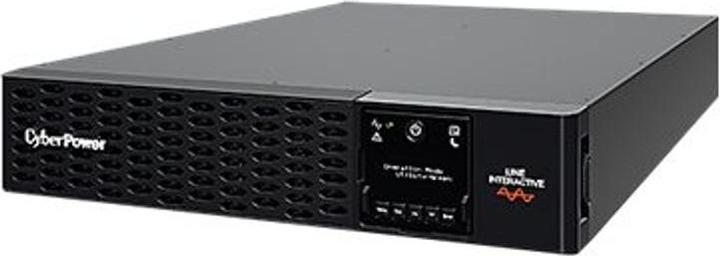

Cyberpower PR2200ERTXL2UAN

2200 VA, 2200 W, Line-interactive UPS
Ratings
BrandMore from Cyberpower
Currently out of stock
Show all

Product details

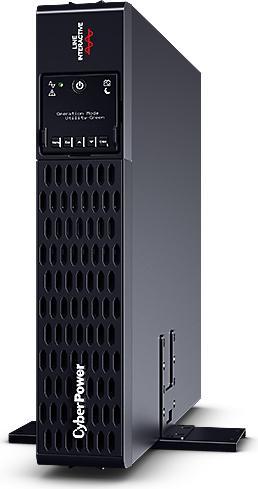

The UPS can be installed as rackmount or in tower design. It uses the line-interactive topology with automatic voltage regulation (AVR) and provides stabilized sine wave output power in mains and battery
mode to ensure high power quality. The output power factor of the UPS is 1, which means more devices/loads can be connected to the UPS than to UPS with lower power factor.

It has intelligent battery management technology that helps the batteries to achieve longer optimized life by balancing the battery voltages of each battery. A two-phase controlled charging technology charges the batteries quickly and safely. Hot-swappable battery packs allow for easy maintenance without interrupting operation. The rotatable multifunctional matrix LCD supports intuitive operation and allows configuration of UPS options.

Via the USB interface, or optional network card, the free downloadable PowerPanel Business management software automatically communicates with the computer and safely shuts down the system in the event of a power failure. It also allows users to perform scheduled shutdowns and self-diagnostics, and monitors power consumption levels and displays approximate backup time.

Key specifications

Operating time at full load
5.60 min
Model
19" rack
Scope of application
Server room,
Workplace + home use
Plug type
C13,
C19
Item number
12319641

General information

Manufacturer
Cyberpower
Category
UPS
Manufacturer no.
PR2200ERTXL2UAN
Release date
14.11.2019
Sales rank in Category UPS
49 of 2087

UPS properties

UPS type
Line-interactive UPS
Power output
2200 W
Output power capacity
2200 VA
Model
19" rack
Rack Unit
2U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection,
Protection for 1000BASE-T,
Protection for 100BASE-T,
Protection for Modem/Fax/DSL,
Undervoltage protection

Application range

Area of application UPS
Server room,
Workplace + home use

Connector plug

Plug type
C13,
C19

Connections

Connections
RS-232,
USB 2.0

Mains supply properties

input voltage
288 V
output voltage
220 - 240 V
Max. input current
16 A
Input frequency
47 / 63 Hz
Output frequency
50 - 60 Hz
overvoltage protection
2430 J
Efficiency battery operation
98 %

Operating conditions

Operating temperature
0 - 40 °C
Operating humidity
0 - 95%
Max. noise level
57.50 dB

Battery properties

Battery category
Device batteries
Battery
Battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
8 x
Voltage
12 V
Capacity
6 Ah
Charging time
3 h
Operating time at full load
5.60 min
Operating time at half load
16 min

Scope of delivery

Scope of delivery
Manual,
PowerPanel Business Edition Software,
Rack mounting kit,
Serial,
USB cable
Items per sales unit
1 x

Product dimensions

Height
86.50 mm
Weight
42 kg
Width
433 mm
Length
630 mm

Package dimensions

Length
63 cm
Width
43 cm
Height
43 cm
Weight
42 kg
