TP-Link

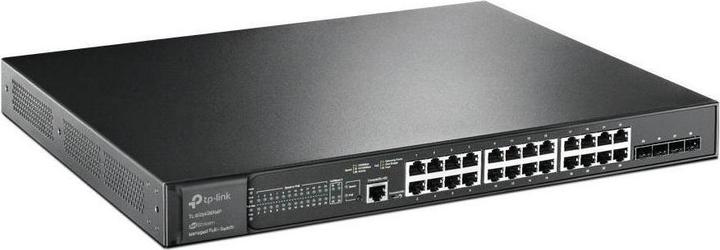

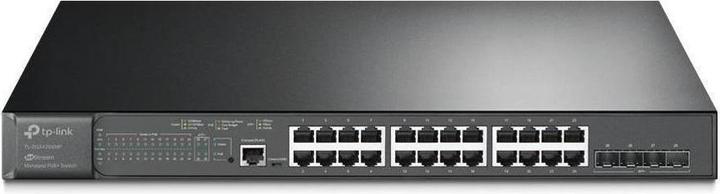

The TL-SG3428XMP is a network edge access switch that offers 24x 10/100/1000 Mbps LAN ports with PoE function (802.3af/at) for the power supply of VoIP/cameras and other devices, a PoE budget of 384 W and a maximum consumption of 30 W/port. In addition, 4x 10G SFP+ slots are available for further network expansions. For management and monitoring, it is possible to use general access via a web interface and protocols such as CLI, SNMP, RMO as well as centralised cloud management and a software controller. The Omada hardware controller (OC200 / OC300) is also supported.

Key features
- PoE budget 384W
- (24) 802.3af/at PoE
- (4) 10Gbps SFP+ slots for easy network expansion
- SW functions: IP-MAC port binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication a mnoho dalšího
- Centralised management: Cloud access and Omada app for maximum convenience and easy management
- Standalone management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image provide powerful management capabilities
- Static routing: Helps route internal traffic for more efficient use of network resources.

Package contains
- Device
- Power cable
- Rackmount ears

Technical parameters
Connectors and interfaces
LAN speed: (24) 10/100/1000 Mbit/s
Optical interfaces: (4) 10 Gbit/s
Serial port: Micro-USB, RJ45

Power

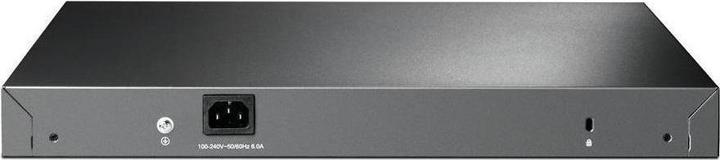

- Power type: Mains power (230 V)
- PoE type: PoE-Out (only)
- PoE-Out standards: 802.3af, 802.3at
- PoE-Out ports: 24
- PoE budget [W]: 384
- Max. Power consumption [W]: 34
- Power supply via plug/terminal: 230 V AC

Physical properties
- Design: Rackmount
- Fan: (2) 40 x 40 mm
- Housing design: Metal
- Buttons: Status (speed / PoE)
- Operating temperature [°C]: 0 to 45
- Width [mm]: 440
- Height [mm]: 44
- Depth [mm]: 330

General
- Switching capacity [Gbit/s]: 128
- MAC address table: 16000
- Jumbo frame [bytes]: 9000
- Packet forwarding rate [Mpps]: 95.2

Software
- Web...
