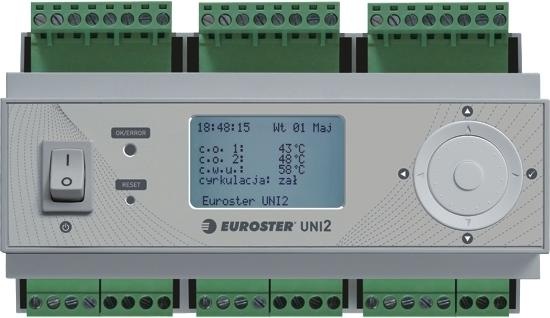

Euroster UNI2 controller 2 heating circuits - EUNI2

for heating with radiators and underfloor heating) domestic hot water circuit domestic hot water circulation circuit Basic functions of the controller: control of two central heating circuits with mixing valves (e.g. radiator and floor heating) control of the pump loading the domestic hot water tank with the option of switching on the priority time or temperature control of the domestic hot water circulation circuit independent setting of the temperature and weather curve for each central heating circuit independent control of each central heating circuit with a room regulator and schedule change of the heating season SUMMER/ WINTER control of the domestic hot water circuit according to the adjustable work schedule possibility of switching off the control of the central heating circuit mixer function of domestic hot water circuit disinfection output for controlling a gas boiler or other device alarm output register of dangerous and alarm events possibility of test switching of outputs overheating protection antifreeze protection support for multiple languages cooperation with heating distributors anti-stop system for pumps and valves Euroster Uni2 is a universal, weather-based controller for a heating installation equipped with: two central heating circuits with mixing valves (e.g. for heating with radiators and floor heating) DHW circuit DHW circulation circuit Basic functions of the controller: control of two central heating circuits with mixing valves (e.g. radiator and floor heating) control of the DHW tank loading pump with the option of switching on priority time or temperature control of the DHW circulation circuit independent setting of temperature and weather curve for of each central heating circuit independent control of each central heating circuit with a room regulator and schedule change of the heating season SUMMER/WINTER control of the domestic hot water circuit according to the adjustable work schedule possibility of switching off the control of the central heating circuit mixer function of central heating circuit disinfection function output for controlling a gas boiler or other device alarm output register of dangerous and alarm events possibility of test switching of outputs overheating protection antifreeze protection multiple support languages cooperation with underfloor heating distributors Anti-Stop system for pumps and valves Technical data: The device is controlled by two heating circuits with mixing valves, hot water circuit, hot water circulation circuit Supply voltage 230 V 50 Hz Maximum power consumption 4 W Maximum output load 100 W (each outputs) Controller output relay, voltage for pumps, valve actuators and alarm output relay, voltage-free for controlling a boiler or other heating device Temperature measurement range from -30°C to +120°C Temperature adjustment range for central heating circuits: from +15°C to + 90°C DHW circulation: from +40°C to +75°C DHW circulation: from +20°C to +50°C Accuracy of temperature control 1°C Accuracy of temperature indication 1°C Visual signaling backlit LCD display, LED diode Operating temperature from +5°C to +40°C Storage temperature from 0°C to +55°C Protection level IP20, protection class II Color gray Mounting on 35 mm DIN rail, mounting in a protective cabinet Standards, approvals, certificates compliance with directives EMC and LVD Warranty period 2 years Dimensions (width/height/depth) mm 159.5/90/59 Accessories Euroster UNI2 controller, power cord, temperature sensors (6 pcs.), sensor bands, wall plugs, manual with warranty
