OBO Bettermann Potential equalization rail

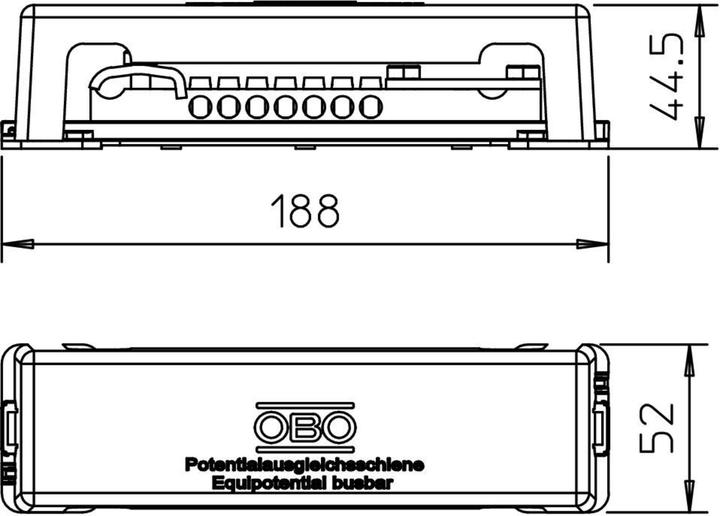

44.5 mm Width: 52 mm Length: 188 mm Number of connections round conductor total: 1 Number of connections round conductor 8-10 mm: 1 Number of connections flat conductor up to 30 mm: 1 Number of connections cable up to 25 mm² rigid: 7 Material of contact rail: brass Surface of contact rail: nickel-plated Material of terminal: steel Surface of terminal: galvanic/electrolytic zinc-platedOBO Bettermann Potential equalisation rail 1809: further details.rail 1809: more detailsPotential equalization rail for potential equalization according to DIN VDE 0100-410/-540 as well as lightning protection potential equalization according to DIN VDE 0185-305. Base plate and cover made of polystyrene, gray, cover can be lead-sealed / labeled, contact bar made of brass, nickel-plated, screws and overlays made of steel, electrolytically galvanized, lightning current carrying capacity 100 kA (10/350). Connection possibilities: 7x solid or stranded conductors up to 25 mm² or fine stranded conductors up to 16 mm², 1x round conductor Rd 8-10, 1x flat conductor up to FL30 or round conductor Rd 8-10. , EAN: 4012195378259
